WORK 3
19
F01535-11

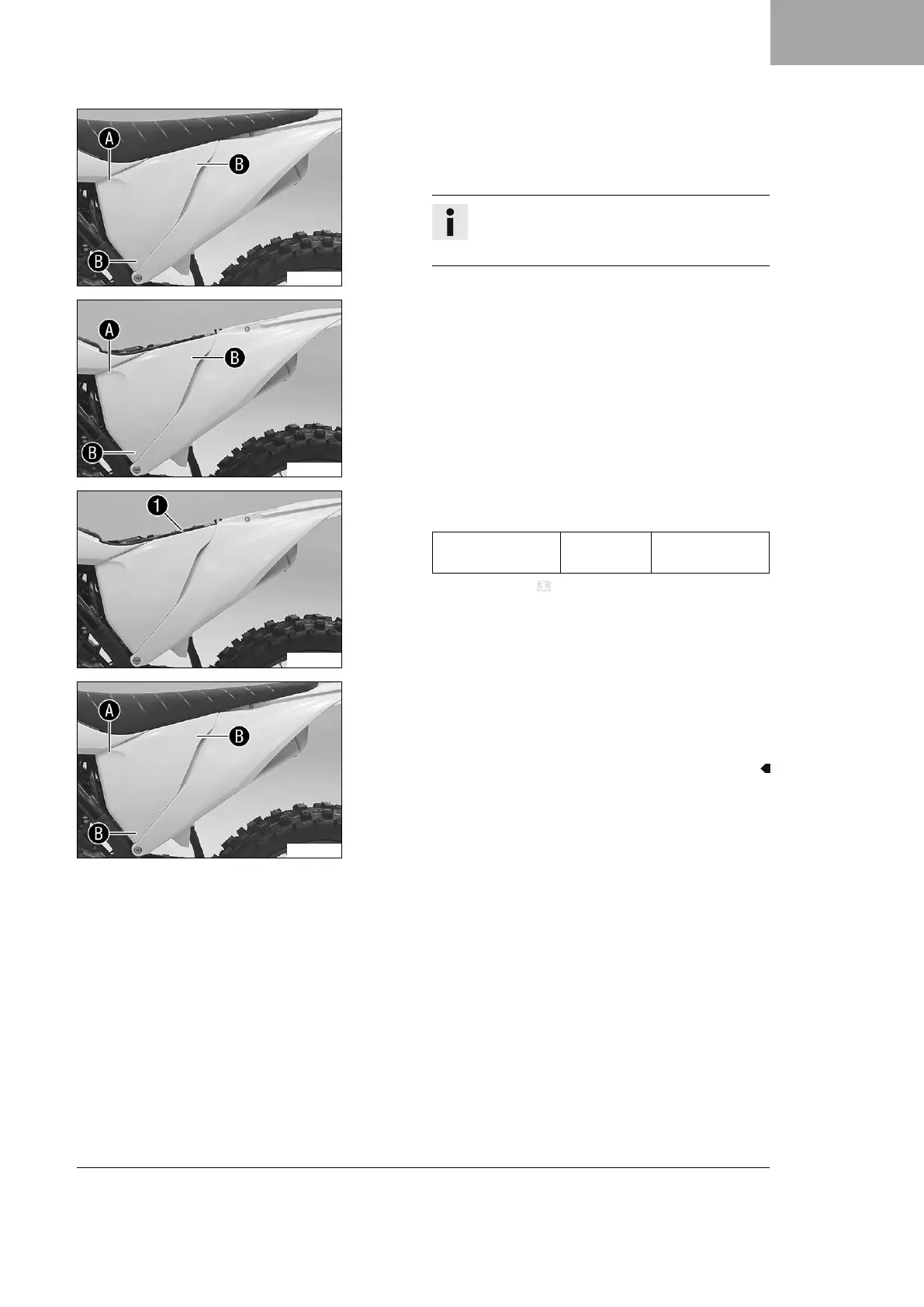

Condition
The air filter box cover is not secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
Info
An air filter box cover with openings for greater
airflow and a more direct response is included.
F01534-12
(XC‑F US)
Condition
The air filter box cover is secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
F01534-10
–
Mount and tighten screw
1
.
Guideline
Screw, air filter
box cover
EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
– Mount the seat. ( p. 17)
F01535-11
Condition
The air filter box cover is not secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
