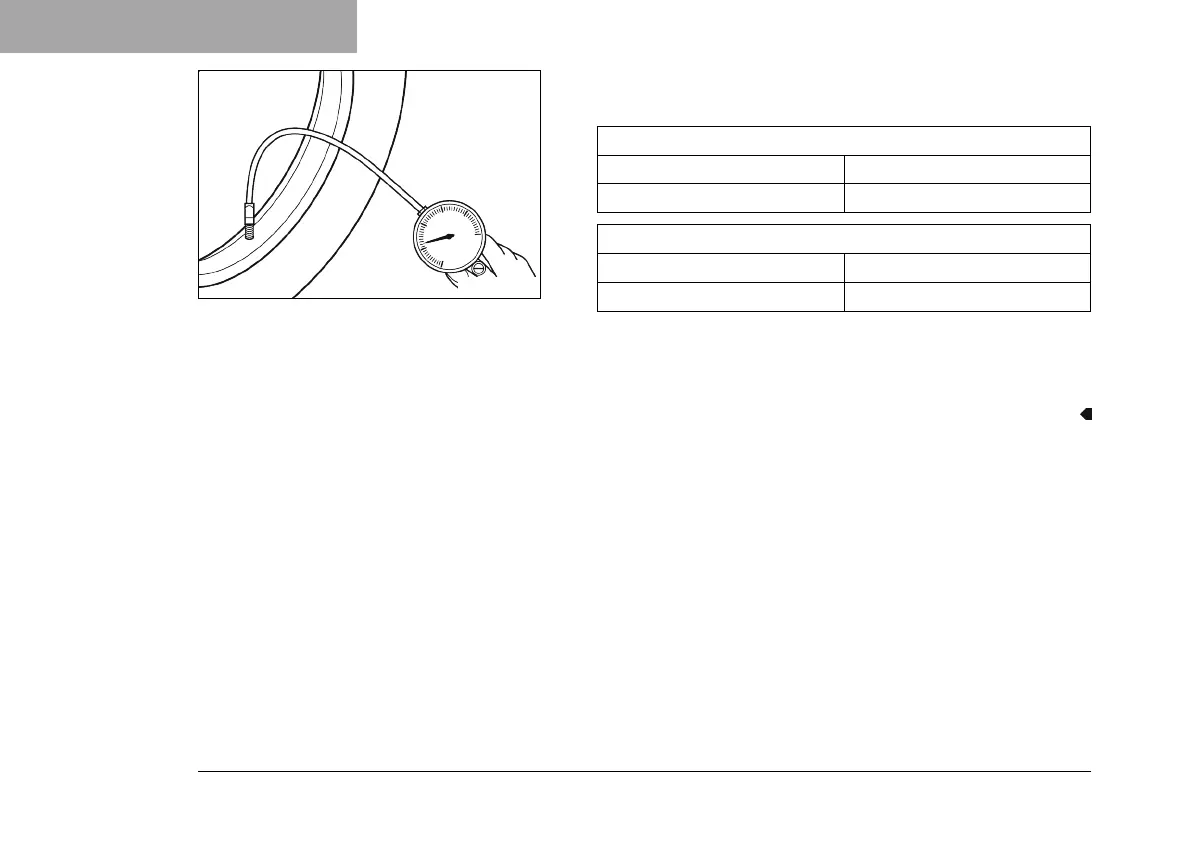

14 WHEELS, TIRES

160

400695-01

– Remove the protection cap.

– Check the tire pressure when the tires are cold.

Tire pressure when solo

front 2.0 bar (29 psi)

rear 2.0 bar (29 psi)

Tire pressure with passenger / full payload

front 2.0 bar (29 psi)

rear 2.2 bar (32 psi)

» If the tire pressure does not meet specifications:

– Correct the tire pressure.

– Mount the protection cap.

Default Chapter5
- Table of Contents5
1 Means of Representation10
- Symbols Used10
- Formats Used11
2 Safety Advice12
- Use Definition - Intended Use12
- Misuse12
- Degrees of Risk and Symbols13
- Tampering Warning14
- Safe Operation14
- Protective Clothing15
- Work Rules16
- Environment16
- Owner's Manual17
3 Important Notes18
- Manufacturer and Implied Warranty18
- Fuel, Auxiliary Substances18
- Spare Parts, Accessories18
- Service19
- Figures19
- Customer Service19
4 View of Vehicle22
- View of Vehicle, Front Left (Example)22
- View of Vehicle, Rear Right (Example)24
5 Serial Numbers26
- Vehicle Identification Number26
- Type Label26
- Engine Number27
- Key Number27
6 Controls28
- Clutch Lever28
- Hand Brake Lever28
- Throttle Grip29
- Horn Button29
- Light Switch30
- High Beam Flasher Button30
- Turn Signal Switch31
- Emergency off Switch32
- Electric Starter Button32
- Ignition and Steering Lock33
- Locking the Steering33
- Unlocking the Steering34
- Opening Fuel Tank Filler Cap35
- Closing the Fuel Tank Filler Cap37
- Seat Lock38
- Tool Set38
- Grab Handles39
- Passenger Foot Pegs39
- Shift Lever40
- Foot Brake Lever41
- Side Stand41
7 Combination Instrument 743
- Activation and Test44
- Warnings45
- Indicator Lamps50
- Shift Warning Light52
- Display54
- Fuel Level Display55
- Coolant Temperature Indicator56
- Function Buttons57
- TRIP F Display58
- Info Display59
- ODO Display60
- Fuel Range60
- Service61
- Actual F.C62
- TRIP 1 Display63
- Time Trip 163
- Average Speed Trip164
- Avg F.C. Trip 165
- TRIP 2 Display66
- Time Trip 266
- Average Speed Trip267
- Avg F.C. Trip 268
- Setting the Units68
- Setting the Clock70
- Adjusting the Shift Speed RPM171
- Adjusting the Shift Speed RPM272
8 Preparing for Use74
- Advice on Preparing for First Use74
- Running in the Engine76
- Loading the Vehicle76
9 Riding Instructions 979
- Checks and Maintenance Measures When Preparing for Use79
- Starting80
- Starting off82
- Shifting, Riding83
- Applying the Brakes87
- Stopping, Parking89
- Transport91
- Refueling92
10 Service Schedule 1095
- Additional Information95
- Required Work95
- Recommended Work98
11 Tuning the Chassis 1199
- Adjusting the Spring Preload of the Shock Absorber99
- Adjusting the Shift Lever100
12 Service Work on the Chassis102
- Raising the Motorcycle with Rear Lifting Gear102
- Removing the Rear of the Motorcycle from the Lifting Gear102
- Lifting the Motorcycle with the Front Lifting Gear103
- Taking the Motorcycle off the Front Lifting Gear105
- Cleaning the Dust Boots of the Fork Legs106
- Removing the Front Rider's Seat108
- Mounting the Front Rider's Seat109
- Removing the Passenger Seat109
- Mounting the Passenger Seat110
- Checking for Chain Dirt Accumulation112
- Cleaning the Chain112
- Checking the Chain Tension114
- Adjusting the Chain Tension116
- Checking the Chain, Rear Sprocket, and Engine Sprocket118
- Removing the Battery Cover120
- Mounting the Battery Cover122
- Removing the Front Spoiler123
- Fitting Front Spoiler124
- Removing the Left Side Cover126
- Installing the Left Side Cover127
- Removing the Right Side Cover129
- Installing the Right Side Cover130
13 Brake System 13131
- Anti-Lock Braking System (ABS)131
- Checking the Brake Discs133
- Checking the Front Brake Fluid Level134
- Adding the Front Brake Fluid135
- Checking the Front Brake Linings138
- Checking the Rear Brake Fluid Level139
- Adding Rear Brake Fluid140
- Checking the Rear Brake Linings144
- Checking the Free Travel of Foot Brake Lever145
- Adjusting the Free Travel of the Foot Brake Lever147
14 Wheels, Tires 14149
- Removing the Front Wheel149
- Installing the Front Wheel150
- Removing the Rear Wheel152
- Installing the Rear Wheel154
- Checking the Rear Hub Damping Rubber Pieces157
- Checking the Tire Condition159
- Checking Tire Pressure161
15 Electrical System 15163
- Removing the 12-V Battery163
- Installing the 12-V Battery165
- Charging the 12-V Battery166
- Changing the ABS Fuses169
- Changing the Fuses of Individual Power Consumers172
- Changing the Low Beam Bulb175
- Changing the High Beam Bulb177
- Checking the Low Beam Headlight Adjustment179
- Checking the High Beam Headlight Adjustment181
- Adjusting the Headlight Range of the Low Beam182
- Adjusting the Headlight Range of the High Beam183
- Diagnostics Connector184
- Front ACC1 and ACC2184
16 Cooling System 16185
- Checking the Coolant Level in the Compensating Tank187
- Checking the Antifreeze and Coolant Level189
- Correcting the Coolant Level in the Compensating Tank192
- Draining the Coolant193
- Filling/Bleeding the Cooling System195
- Changing the Coolant198
17 Tuning the Engine202
- Checking Throttle Cable Play202
- Adjusting Throttle Cable Play203
- Checking the Clutch Lever Play203
- Adjusting Play in the Clutch Lever205
18 Service Work on the Engine206
- Checking the Engine Oil Level206
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screen207
- Adding Engine Oil210
19 Cleaning, Care212
- Cleaning the Motorcycle212
- Checks and Maintenance Steps for Winter Operation215
20 Storage 20217
- Preparing for Use after Storage219
21 Troubleshooting220
22 Technical Data 22223
- Engine223
- Engine Tightening Torques224
- Capacities228
- Engine Oil228
- Coolant228
- Fuel228
- Chassis229
- Electrical System230
- Tires231
- Fork232
- Shock Absorber232
- Chassis Tightening Torques232
23 Substances 23239
24 Auxiliary Substances 24243
25 Standards 25245
26 Index of Special Terms246
27 List of Abbreviations 27247
28 List of Symbols248
- Yellow and Orange Symbols248
- Green and Blue Symbols248
- Index249
