14 WHEELS, TIRES 128

400695-01

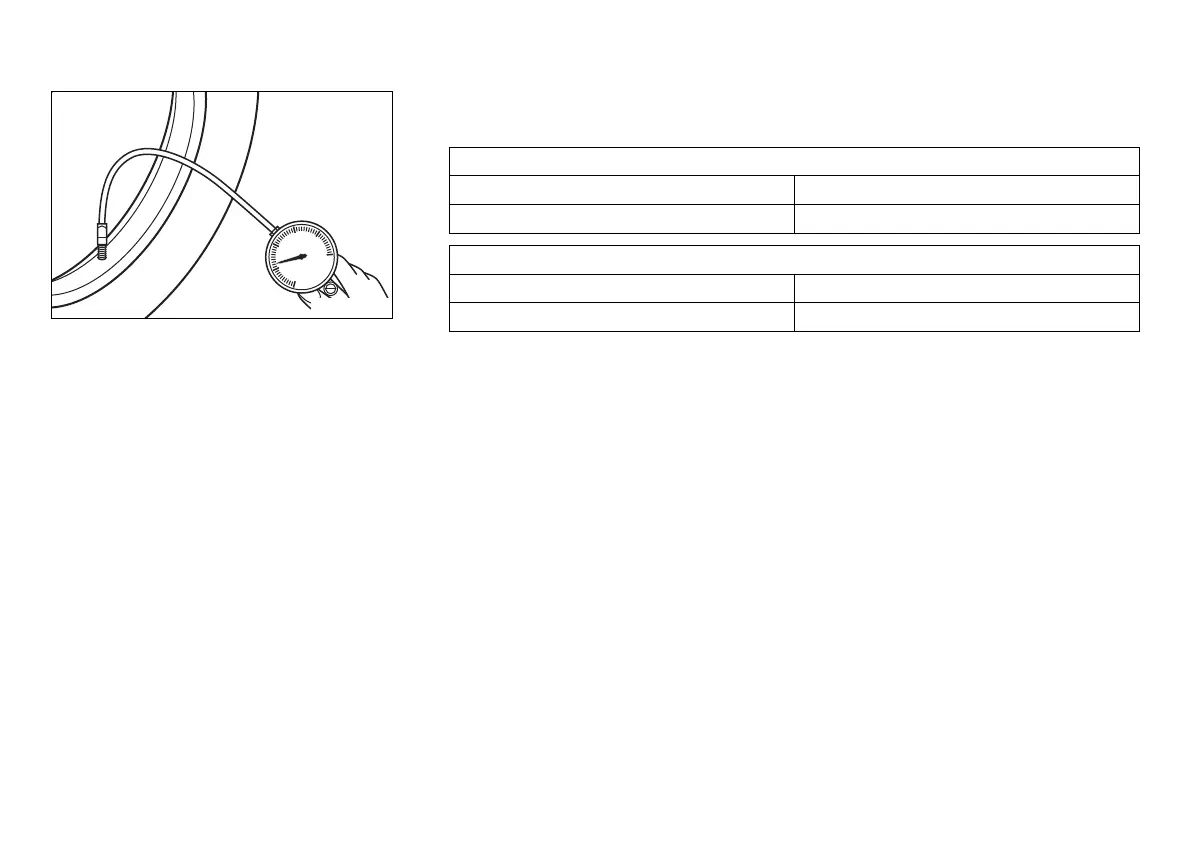

– Remove the dust cap.

– Check tire air pressure when the tires are cold.

Tire air pressure, solo

Front 2.0 bar (29 psi)

Rear 2.0 bar (29 psi)

Tire air pressure with passenger/full payload

Front 2.0 bar (29 psi)

Rear 2.2 bar (32 psi)

» If the tire air pressure does not meet specifications:

– Correct the tire air pressure.

– Mount the dust cap.

Default Chapter5
- Table of Contents5
1 Meansofrepresentation9
- Means of Representation9
  - Symbols Used9
  - Formats Used9
2 Safety Advice10
- Use Definition10
- Degrees of Risk and Symbols11
- Tampering Warning11
- Safe Operation12
- Protective Clothing13
- Work Rules13
- Environment13
- Owner's Manual14
3 Important Notes15
- Guarantee, Warranty15
- Operating and Auxiliary Substances15
- Spare Parts, Accessories15
- Service15
- Figures16
- Customer Service16
4 View of Vehicle18
- View of Vehicle, Front Left (Example)18
- View of Vehicle, Rear Right (Example)20
5 Serial Numbers22
- Chassis Number22
- Type Label22
- Engine Number23
- Key Number23
6 Controls24
- Clutch Lever24
- Hand Brake Lever24
- Throttle Grip25
- Horn Button25
- Light Switch26
- High Beam Flasher Button26
- Turn Signal Switch27
- Emergency off Switch27
- Electric Starter Button28
- Ignition/Steering Lock28
- Locking the Steering29
- Unlocking the Steering29
- Opening the Filler Cap30
- Closing the Filler Cap31
- Seat Lock31
- Tool Set32
- Grab Handles32
- Passenger Footrests33
- Shift Lever33
- Foot Brake Lever34
- Side Stand35
7 Combination Instrument36
- Overview36
- Activation and Test37
- Warning Notes38
- Function Buttons41
- Indicator Lamps42
- Display43
- Filling Level Display in Fuel Tank44
- TRIP F Display45
- Coolant Temperature Indicator46
- Info Display47
- Riding Time/Average Speed Menu48
- Average Speed/Average Fuel Consumption 1 Menu48
- Average Fuel Consumption 1/Average Fuel Consumption 2 Menu49
- Average Fuel Consumption 2/Service Menu50
- Service/Range Menu51
- Range/Riding Time Menu52
- Total Distance Menu ODO53
- Distance Menu 1 TRIP 153
- Distance Menu 2 TRIP 254
- Setting Kilometers or Miles55
- Setting the Time55
- Adjusting the Shift Speed RPM 156
- Adjusting the Shift Speed RPM 257
8 Preparing for Use58
- Advice on First Use58
- Running in the Engine59
- Loading the Vehicle60
9 Riding Instructions62
- Checks and Maintenance When Preparing for Use62
10 Service Schedule74
- Additional Information74
- Required Work74
- Recommended Work76
11 Tuning the Chassis77
- Adjusting the Spring Preload of the Shock Absorber77
- Adjusting the Shift Lever78
12 Service Work on the Chassis80
- Raising the Motorcycle with the Rear Wheel Stand80
- Taking the Motorcycle off of the Rear Wheel Stand80
- Raising the Motorcycle with the Front Wheel Stand81
- Taking the Motorcycle off of the Front Wheel Stand82
- Removing the Front Rider's Seat83
- Mounting the Front Rider's Seat84
- Removing the Passenger Seat84
- Mounting the Passenger Seat85
- Checking for Chain Dirt Accumulation86
- Cleaning the Chain86
- Checking the Chain Tension87
- Adjusting the Chain Tension89
- Checking the Chain, Rear Sprocket, and Engine Sprocket92
- Removing the Battery Cover94
- Mounting the Battery Cover96
- Removing the Front Spoiler96
- Fitting Front Spoiler98
- Removing the Left Side Cover100
- Installing the Left Side Cover101
- Removing the Right Side Cover103
- Installing the Right Side Cover104
13 Brake System105
- Abs/Antilock Brake System (RC 125)105
- Checking the Brake Discs106
- Checking the Brake Fluid Level of the Front Brake107
- Adding Front Brake Fluid108
- Checking the Front Brake Linings109
- Checking the Rear Brake Fluid Level110
- Adding Rear Brake Fluid111
- Checking the Rear Brake Linings113
- Checking the Free Travel of Foot Brake Lever114
- Adjusting the Free Travel of the Foot Brake Lever115
14 Wheels, Tires117
- Removing the Front Wheel117
- Installing the Front Wheel118
- Removing the Rear Wheel121
- Installing the Rear Wheel123
- Checking the Rear Hub Rubber Dampers127
- Checking the Tire Condition128
- Checking the Tire Air Pressure129
- Electrical System131
- Removing the Battery131
15 Electricalsystem132
- Installing the Battery132
- Recharging the Battery133
- Changing the ABS Fuses (RC 125)136
- Changing the Fuses of Individual Power Consumers138
- Changing the Low Beam Bulb141
- Changing the High Beam Bulb143
- Checking the Low Beam Headlight Adjustment144
- Checking the High Beam Headlight Adjustment145
- Adjusting the Headlight Range of the Low Beam146
- Adjusting the Headlight Range of the High Beam146
16 Cooling System147
- Checking the Coolant Level in the Compensating Tank148
- Checking the Antifreeze and Coolant Level150
- Correcting the Coolant Level in the Compensating Tank152
- Draining the Coolant153
- Filling/Bleeding the Cooling System154
- Tuning the Engine157
- Checking the Play in the Throttle Cable157
- Adjusting the Play in the Throttle Cable158
- Checking the Clutch Lever Play158
- Adjusting the Clutch Cable Play159
- Service Work on the Engine160
- Checking the Engine Oil Level160
- Changing the Engine Oil and Oil Filter, Cleaning160
- The Oil Screen160
- Adding Engine Oil163
19 Cleaning, Care165
- Cleaning the Motorcycle165
- Checks and Maintenance Steps for Winter Operation167
20 Storage169
- Preparing for Use after Storage170
21 Troubleshooting171
22 Flash Code174
23 Technical Data180
- Engine180
- Rc 200181
- Engine Tightening Torques183
- Capacities185
- Engine Oil185
- Coolant185
- Fuel185
- Chassis186
- Electrical System187
- Tires188
- Fork188
- Shock Absorber188
- Chassis Tightening Torques189
24 Substances194
25 Auxiliary Substances197
