15 ELECTRICAL SYSTEM 140

L02161-10

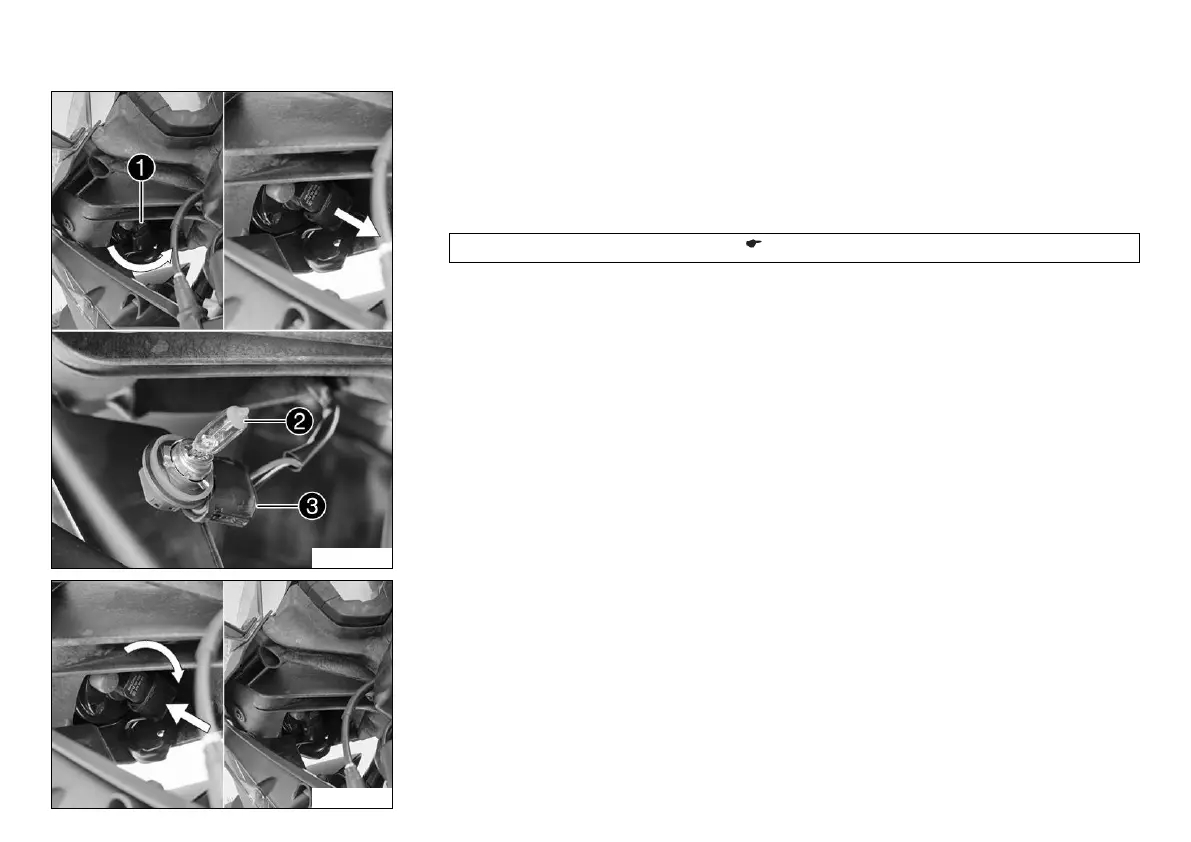

Main work

–

Turn socket



counterclockwise.

–

Pull the socket with low beam bulb



out of the headlight housing.

–

Disconnect the socket with the low beam bulb from connector



and remove.

– Connect the new socket with the low beam bulb to the connector.

Low beam (H11 / Sockel PGJ19-2) ( p. 185)

L02166-10

– Position the socket with the low beam bulb in the headlight housing.

– Turn the socket clockwise.

– Check that the lighting is functioning properly.
