12 SERVICE WORK ON THE CHASSIS 93

L02144-10

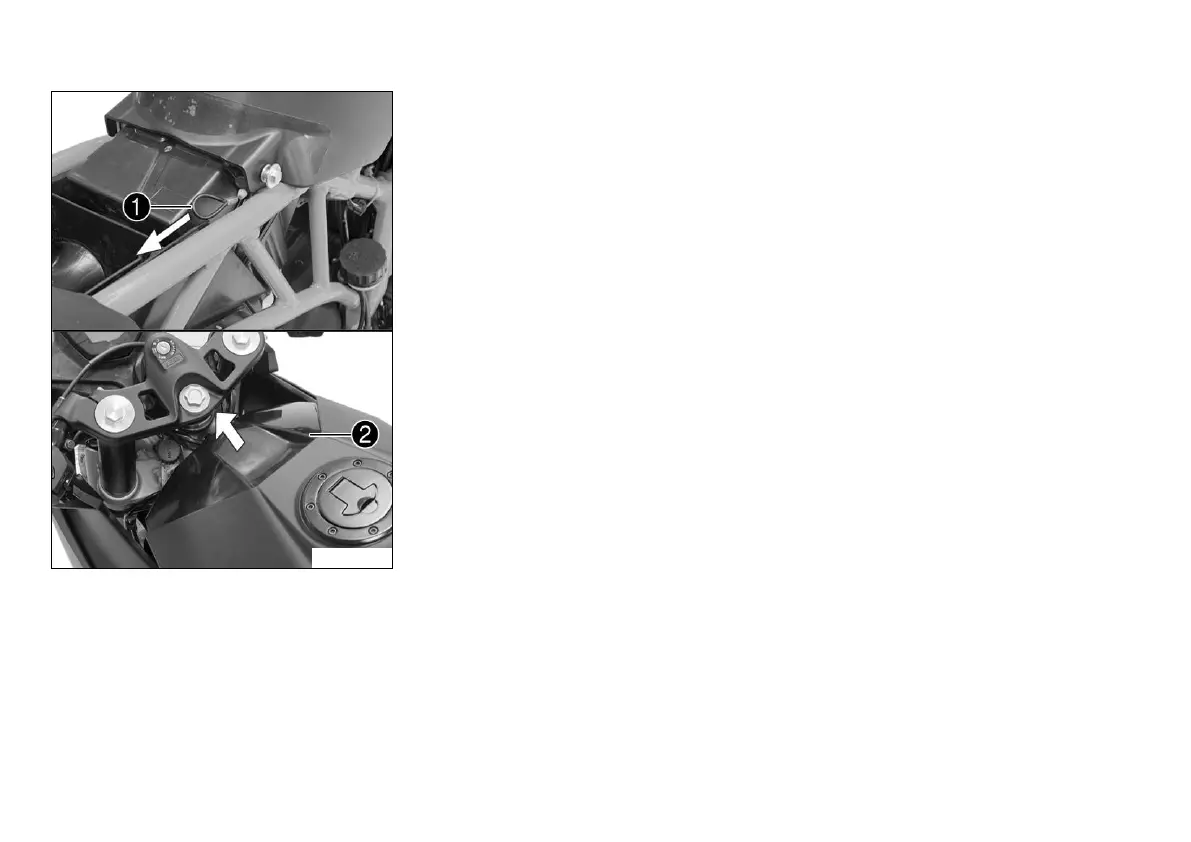

Main work

–

Pull loop



toward the rear.

–

Pull battery cover



forward and remove toward the top.
