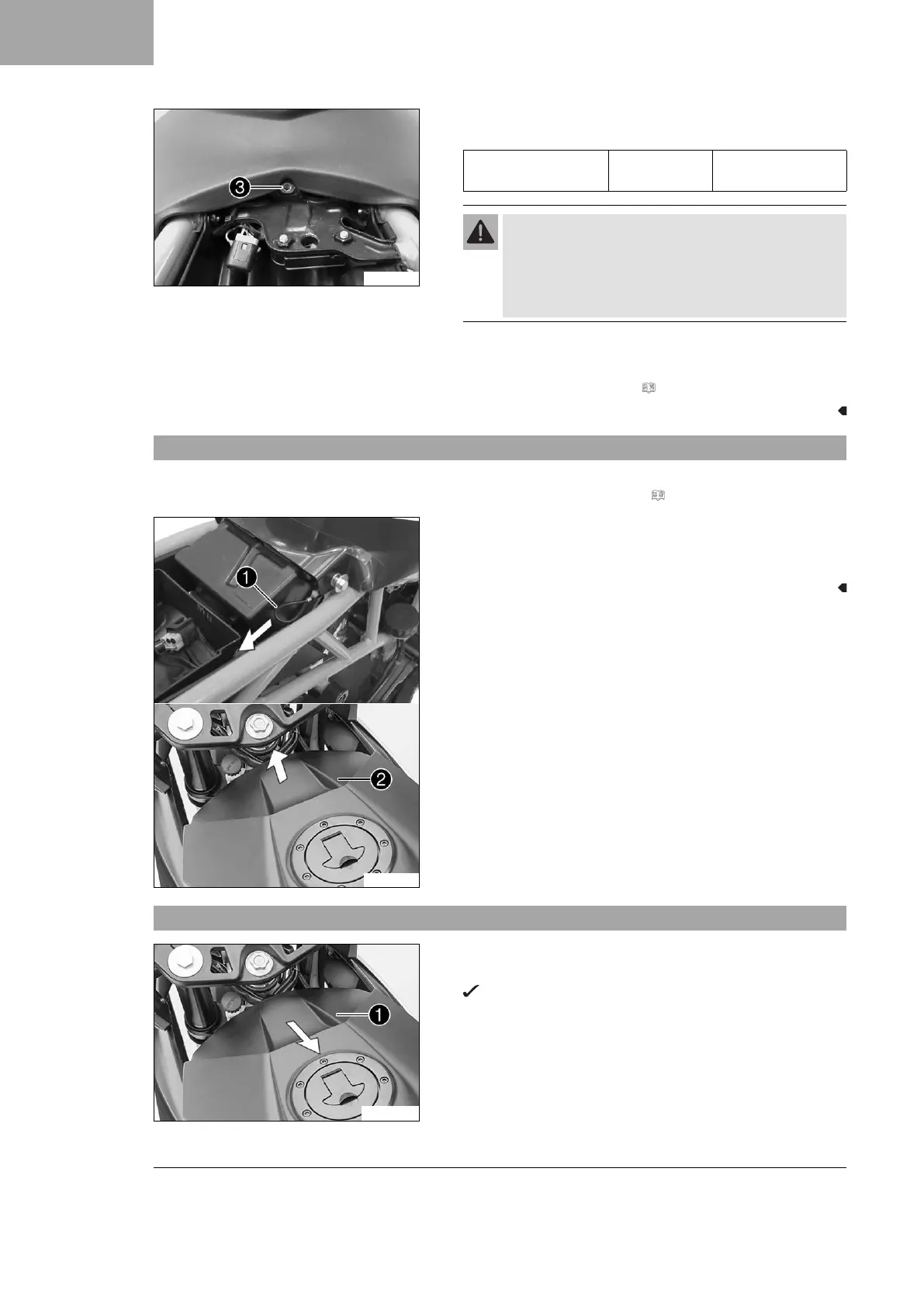

3 WORK
6
L02191-11
–
Mount and tighten screw
3
with the washer.
Guideline
Screw, passenger
seat
M6 7 Nm (5.2 lbf ft)
Warning
Danger of accidents The passenger seat can come
loose from the anchoring if it is not mounted correctly.
– After mounting the passenger seat, check that it is
locked correctly by pulling up.
– Check that the passenger seat is correctly mounted.
Finishing work
– Mount the front rider's seat. ( p. 5)
3.5 Removing the battery cover
Preparatory work
– Remove the front rider's seat. ( p. 5)
V00150-10
Main work
–
Pull loop
1
toward the rear.
–
Pull battery cover
2
forward and remove toward the top.
3.6 Mounting the battery cover
M00451-10
Main work
–
Position battery cover
1
and pull toward the rear.
The battery cover engages with an audible click.
– Check the battery cover is seated correctly.
