Kuat PIVOT v2 - Page 3

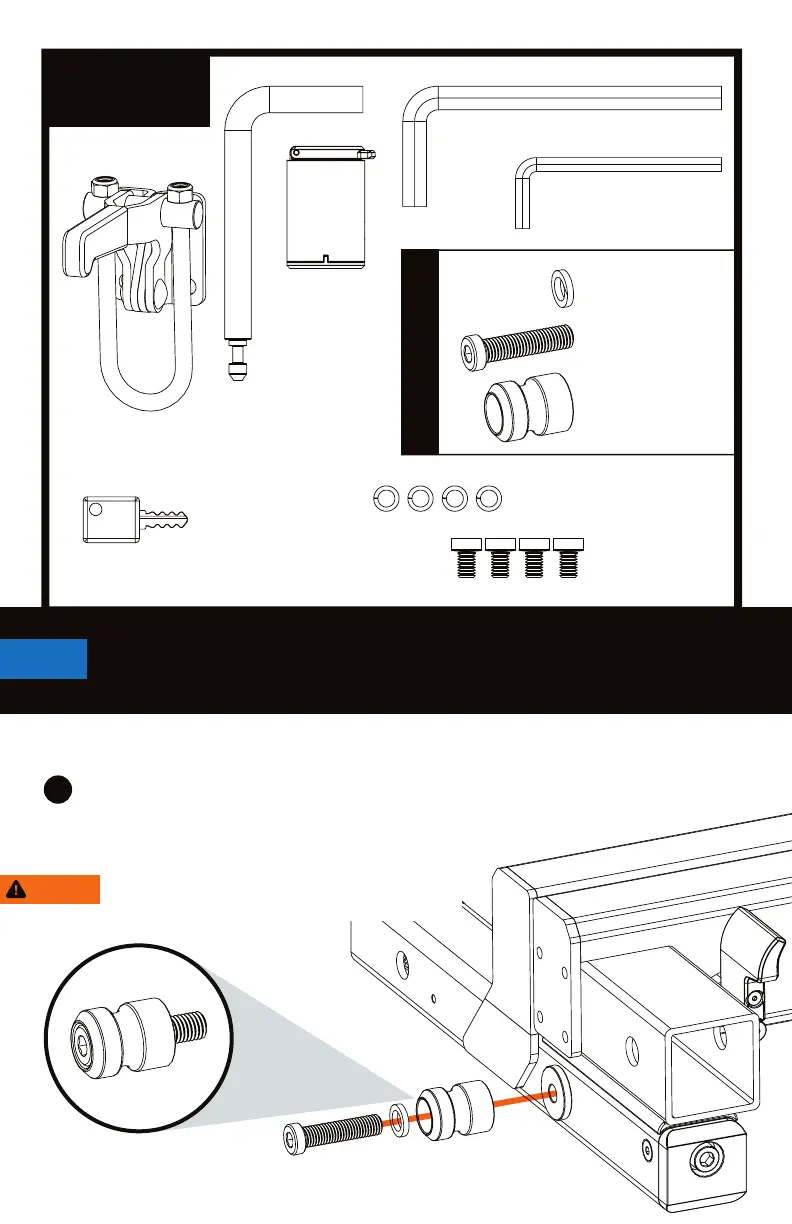

Included
Toggle Clamp
Hitch Lock
Hitch Pin
PRE-ASSEMBLED
M14mm
Lock Washer
M14 x 50mm
Bolt
Toggle Clamp
Post
1 Using the 8mm hex key, remove tape and attach the
pre-assembled toggle clamp post with (1) M14 x 50 bolt
and (1) M14 lock washer.
Assembly
5mm Hex Key
8mm Hex Key
(4) M8 Lock Washer
(2) Lock Keys
(4) M8 x 12
Bolt
These instructions depict the Pivot
™
v2 Passenger Side swing.
Assembly and installation steps for the Driver Side are identical.
NOTICE
TOGGLE CLAMP POST
ASSEMBLY
WARNING
Tighten bolt to 20 ft/lbs (27Nm).
