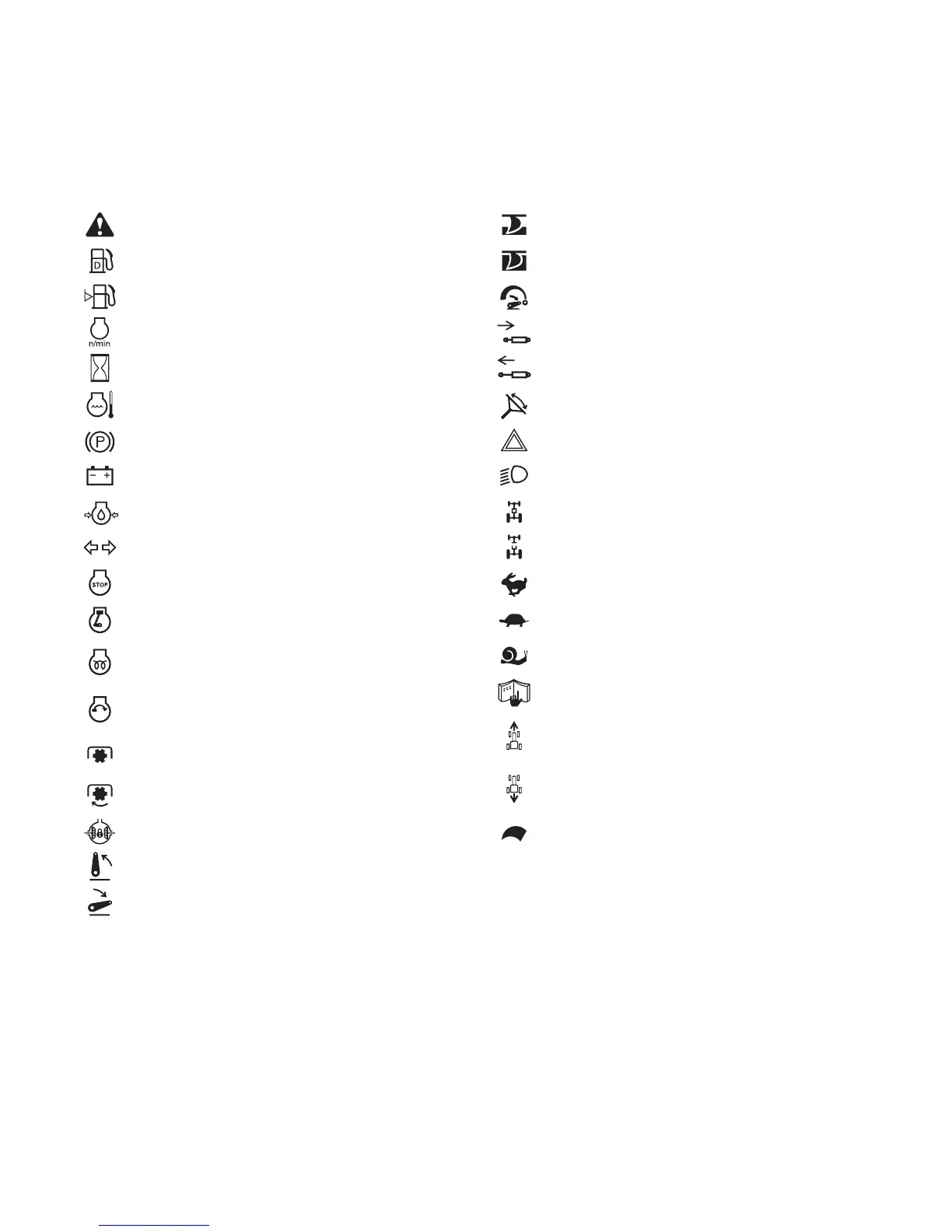

UNIVERSAL SYMBOLS
As a guide to the operation of your tractor, various universal symbols have been utilized on the instruments and
controls. The symbols are shown below with an indication of their meaning.
Safety Alert Symbol
Diesel Fuel
Fuel-Level
Engine-Rotational Speed
Hourmeter/Elapsed Operating Hours
Engine Coolant-Temperature
Parking Brake
Battery Charging Condition
Engine Oil-Pressure
Turn Signal
Engine-Stop
Engine-Run
Diesel Preheat/Glow Plugs(Low Temperature
Start Aid)
Starter Control
Power Take-Off Control-Off Position
(Disengaged)
Power Take-Off Control-On Position (Engaged)
Differential Lock
Position Control-Raised Position
Position Control-Lowered Position
Draft Control-Shallow Position
Draft Control-Deep Position
3-Point Lowering Speed Control
Remote Cylinder-Retract
Remote Cylinder-Extend
Steering Wheel-Tilt Control
Hazard Warning Lights
Headlight
Four-Wheel Drive-On
Four-Wheel Drive-Off
Fast
Slow
Creep
Read Operator's Manual
Tractor-Forward Movement-Overhead View of
Machine
Tractor-Rearward Movement-Overhead View
of Machine
Engine Speed Control
