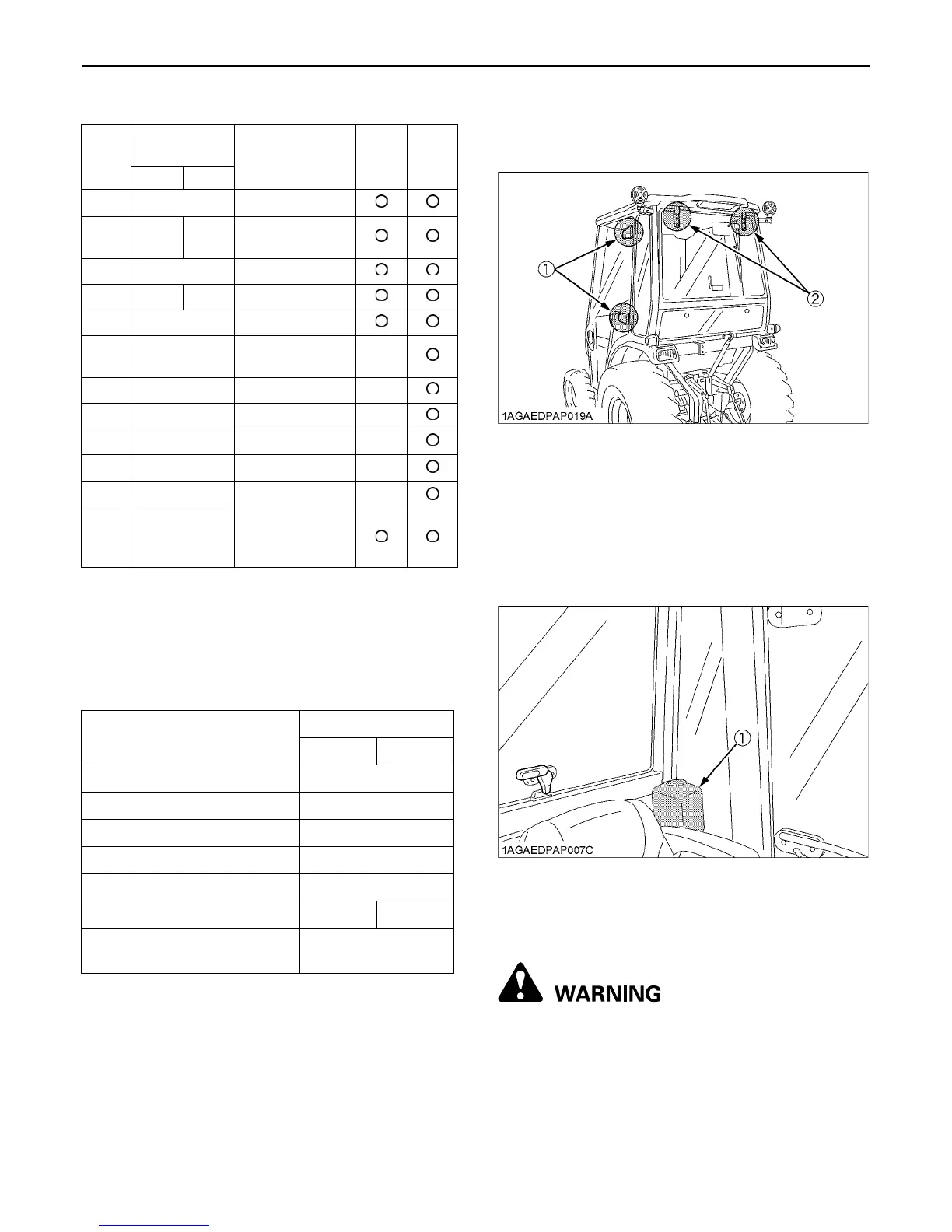

PERIODIC SERVICE76
C Protected circuit
BReplacing Light Bulb
1. Head light
Take the bulb out of the light body and replace with a
new one.
2. Other lights
Detach the lens and replace the bulb.
BLubricating Points
[CAB only]
BAdding the Washer Liquid
[CAB only]
Add a proper amount of automobile washer liquid.
(Tank capacity: 1.5 liters (0.40 U.S.gals.) )
BChecking the Amount of Refrigerant (gas)
[CAB only]
To avoid personal injury:
A Liquid contact with eyes or skin may cause
frostbite.
A In the event of a leakage, wear safety goggles.
Escaping refrigerant can cause severe injuries
to eyes.
A In contact with a flame, R134a refrigerant gives
a toxic gas.
FUSE
No.
CAPACITY
(A)
Protected circuit ROPS CAB
ROPS CAB
(1) 5 OPC
(2) 10 15
Head light
instrument cluster
(3) 20 Work light
(4) 20 15 Flasher / Hazard
(5) 30 Key stop
(6) 10
Aircon
compressor
---
(7) 20 Wiper radio ---
(8) 25 Aircon blower ---
(9) 10 Horn ---
(10) 20 Auxiliary
---
(11)
20 Defogger
---
(12) Slow blow fuse
Check circuit
against wrong
battery connection
Light
Capacity
ROPS CAB
Head light 23W
Tail light 8W
Turn signal / Hazard light 27W and 20W
Instrument panel light 1.7W
Hazard light switch indicator 0.6W
Work light --- 35W
Tail light / Brake light
(if equipped)
5W / 21W
(1) Door hinge
(2) Rear window hinge
(1) Washer liquid tank
To Next Page
