45CAB OPERATION
AIR CONDITIONER

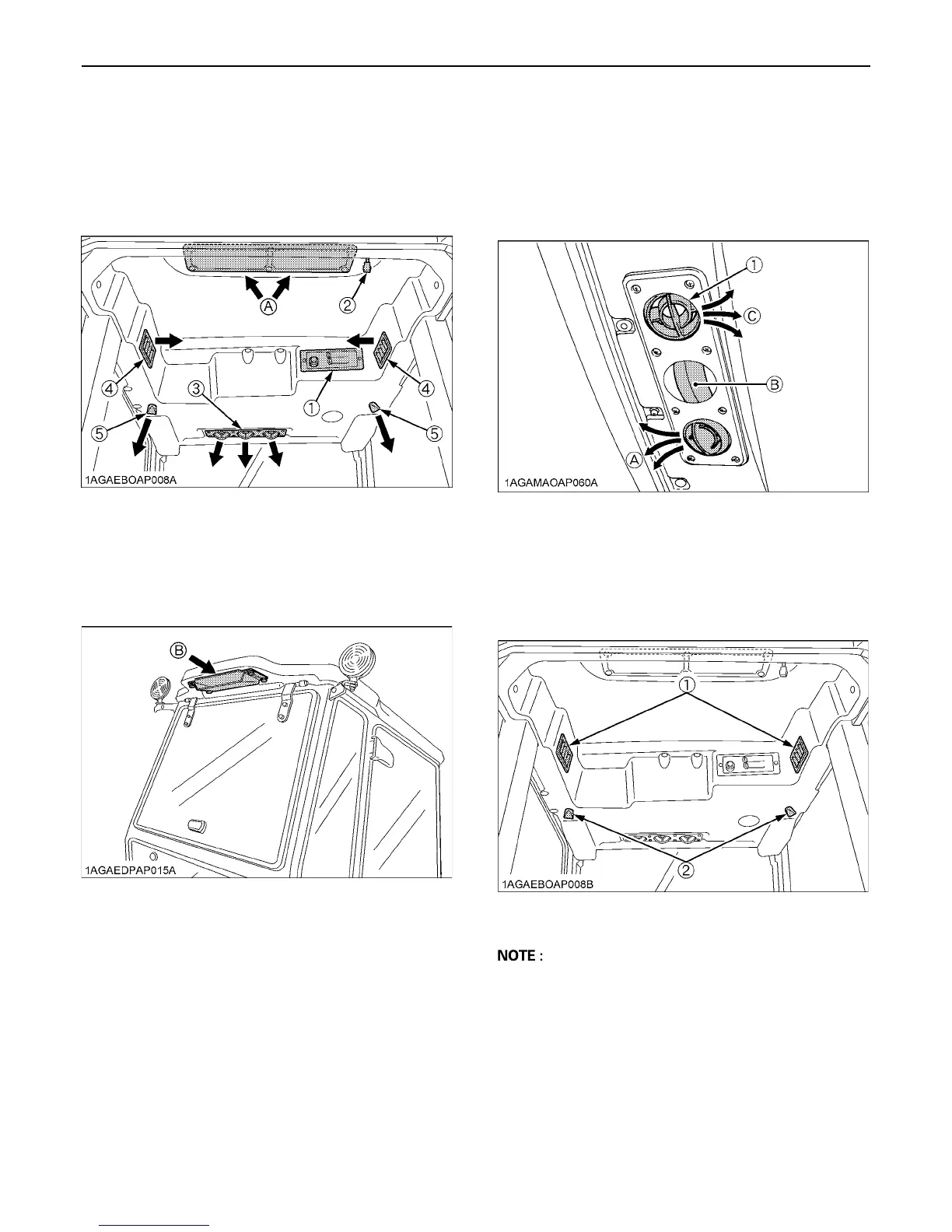

BAirflow
Air in the CAB and fresh air introduced into the CAB flow
as shown below. Adjust the seven air ports to obtain the
desired condition.
BAir Control Vent
C Front air outlet
The front air outlets can be independently adjusted as
required. To defrost the windshield, rotate the outlets
toward the windshield.
C Side air outlet and door air outlet
The side and door air outlets can be adjusted to direct air
on to the operator, door window or the rear of the CAB.
A If the airflow rate at the face is too low, close the front
air outlet.
(1) Control panel
(2) Recirculation /
Fresh air selection lever
(3) Front air outlet
(defrost, windshield, foot area)
(4) Side air outlet (face, back area)
(5) Door air outlet (door area)
(A) Inner air recirculation
(B) Fresh air inlet
(1) Front air outlet (A) "WINDSHIELD"
(B) "CLOSED"
(C) "CHEST AREA"
(1) Side air outlet
(2) Door air outlet
To Next Page
