specific information dealing with electrical
problems.

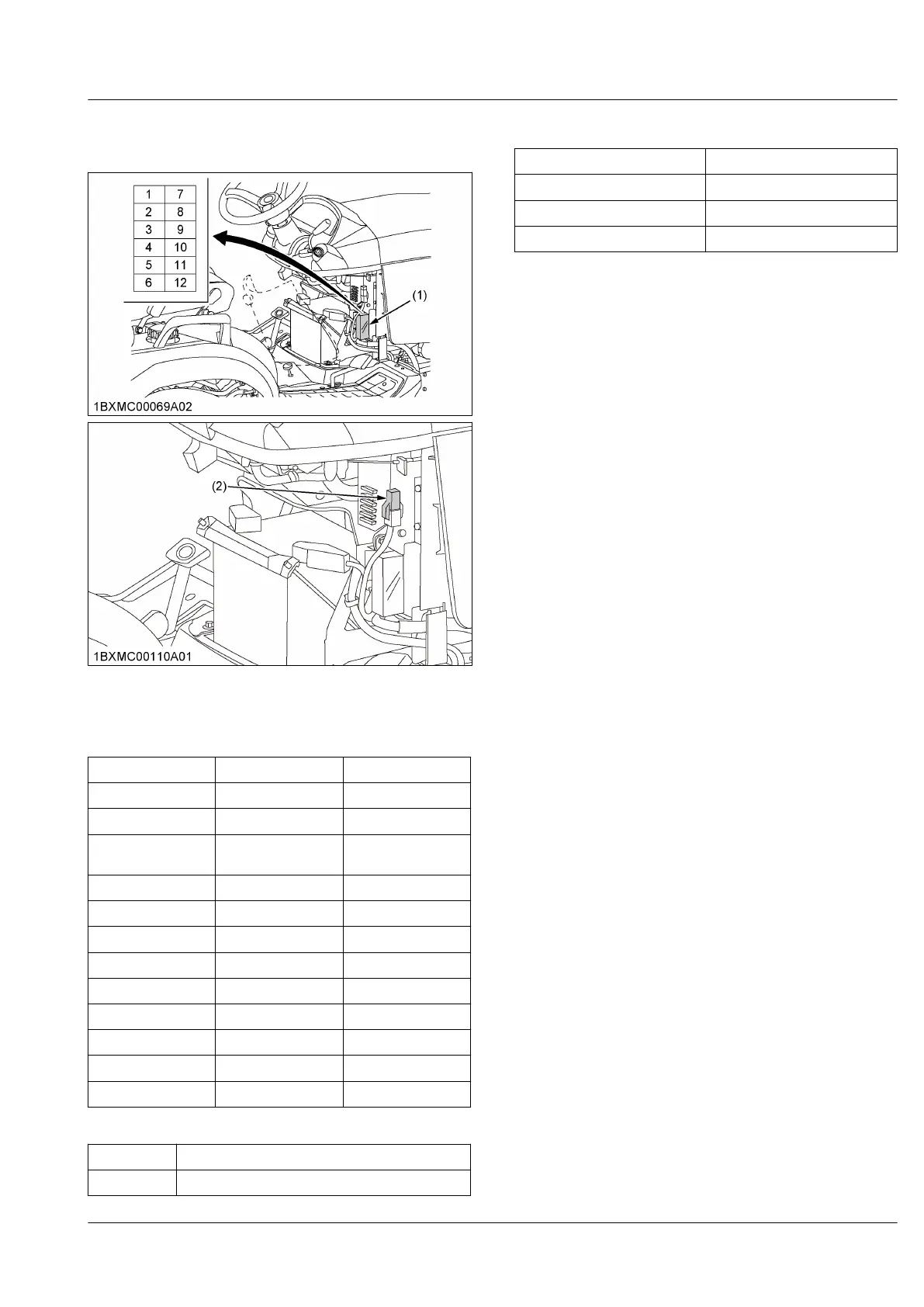

(1) Fuse box (2) Slow blow fuse
Protected circuit
[Fuse box]
FUSE no. Capacity Protected circuit
1 - -
2 - -
3 10 A
Option (3rd-func-
tion)
4 10 A OPC
5 15 A DC outlet
6 5 A Fuel pump
7 - -
8 5 A Glow indicator
9 5 A Meter
10 15 A Stop solenoid
11 20 A Lamp
12 20 A Option (work light)
Slow blow fuse
Capacity Protected circuit
50 A Check circuit against wrong battery connection
3. Replacing the light bulb
Light Capacity
Head light 37.5 W×2
Tail light 12.8 W×2
Hazard light 27 W×2
Head light
1. T
ake
the light bulb out of the body of the light and
replace with a new one.
Other lights
1. Detach the lens and replace the light bulb.
