Kubota D902-E2B - Dynamo

S-51
SM-E2B SERIES, WSM
DIESEL ENGINE
(8) Dynamo
W1036558
1. Remove the nut and separate the plate (7).
2. Tap out the shaft (1) from the rotor (3).
3. Unscrew the screws and remove the stator (6).
(When reassembling)
• Take care the direction of the collar (4), the flat side should face to the pulley side
W1224556

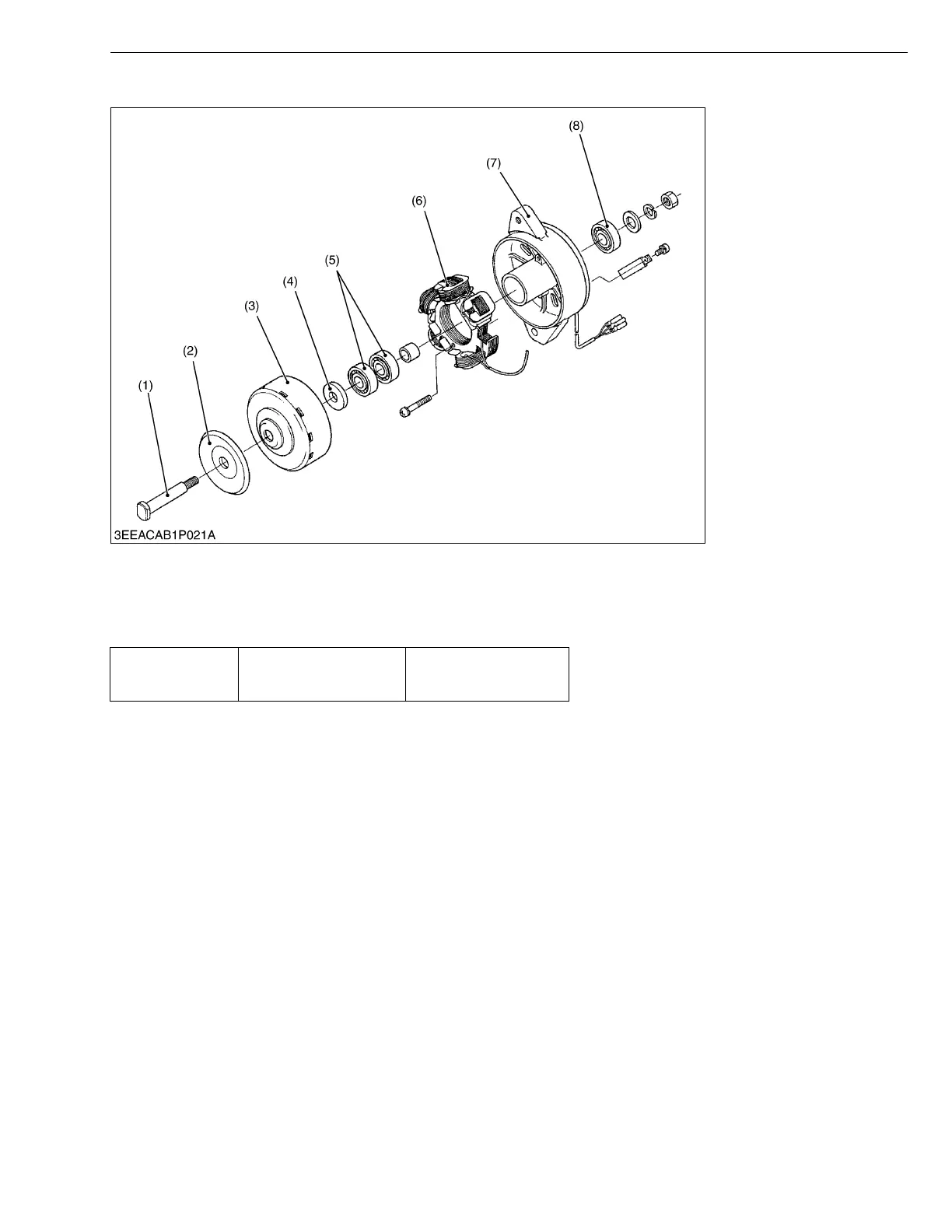

(1) Shaft
(2) Pulley
(3) Rotor
(4) Collar
(5) Bearing
(6) Stator
(7) Plate
(8) Bearing
Tightening torque Pulley nut
39.2 to 44.1 N·m
4.0 to 4.5 kgf·m
28.9 to 32.5 ft-lbs
