Kubota D902-E2B - Oil Clearance between Crankshaft Journal and Crankshaft

S-66
SM-E2B SERIES, WSM
DIESEL ENGINE
Oil Clearance between Crankshaft Journal and Crankshaft
Bearing 1

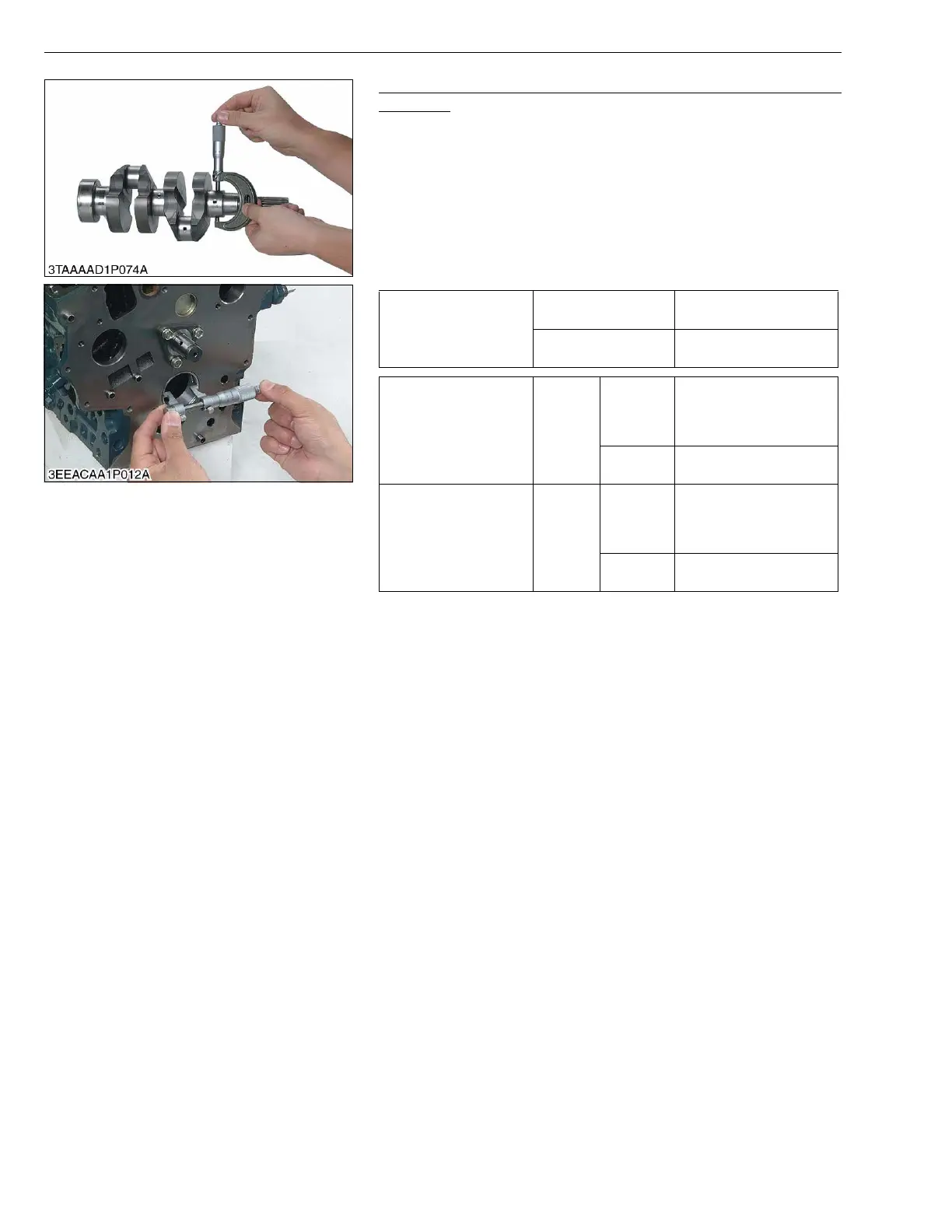

1. Measure the O.D. of the crankshaft front journal with an outside
micrometer.
2. Measure the I.D. of the crankshaft bearing 1 with an inside
micrometer, and calculate the oil clearance.
3. If the oil clearance exceeds the allowable limit, replace the
crankshaft bearing 1.
4. If the same size bearing is useless because of the crankshaft
journal wear, replace it with an undersize one referring to the
table and the figure.
W10323470
Oil Clearance between
crankshaft journal and
crankshaft bearing 1
Factory spec.
0.034 to 0.106 mm
0.00134 to 0.00417 in.
Allowable limit
0.20 mm
0.0079 in.
Crankshaft journal O.D.
Factory
spec.
Z482-E2B
D662-E2B
D722-E2B
D782-E2B
39.934 to 39.950 mm
1.57221 to 1.57284 in.
Z602-E2B
D902-E2B
43.934 to 43.950 mm
1.72968 to 1.73031 in.
Crankshaft bearing 1 I.D.
Factory
spec.
Z482-E2B
D662-E2B
D722-E2B
D782-E2B
39.984 to 40.040 mm
1.57417 to 1.57638 in.
Z602-E2B
D902-E2B
43.984 to 44.040 mm
1.73165 to 1.73386 in.
KiSC issued 06, 2006 A
