S-31
SM-E2B SERIES, WSM
DIESEL ENGINE

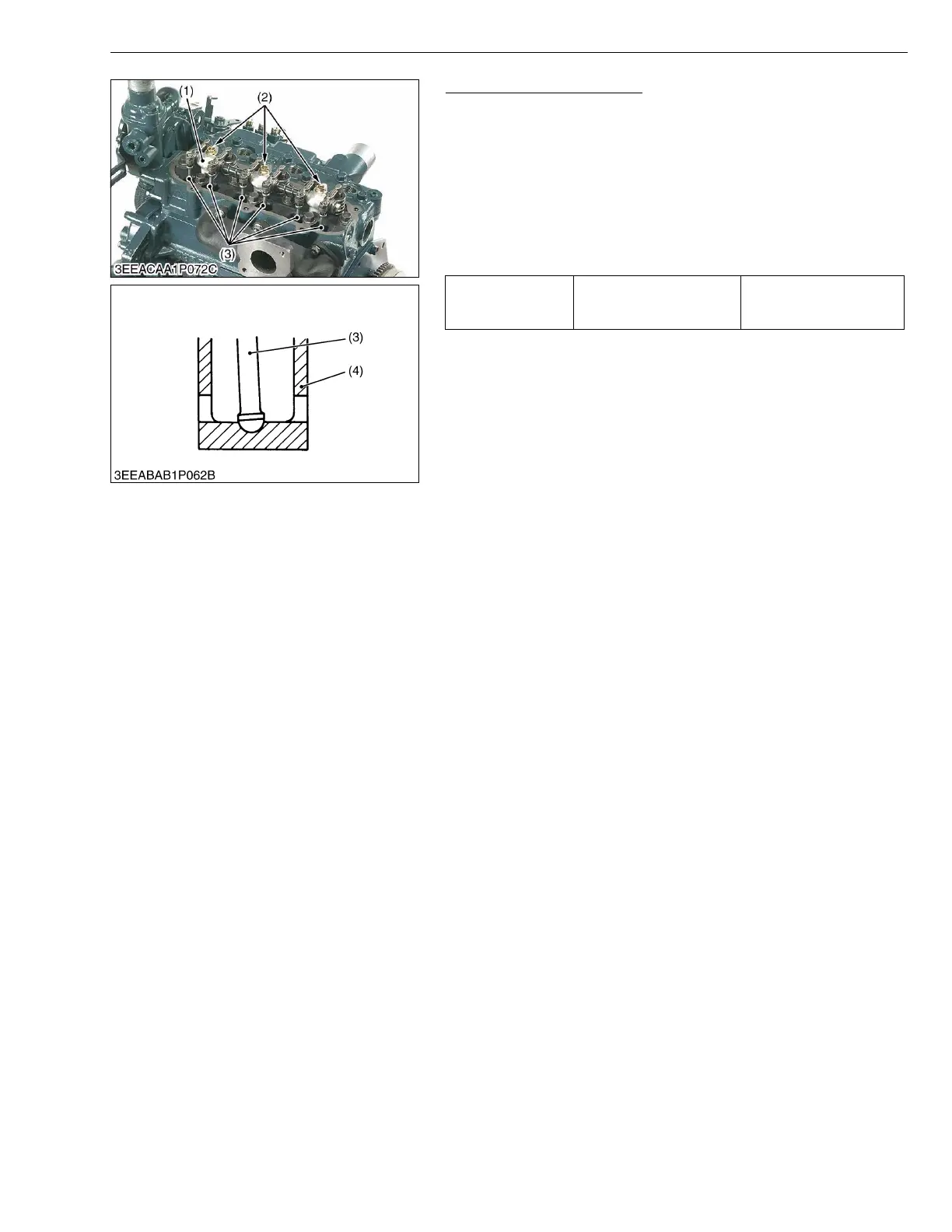

Rocker Arm and Push Rod
1. Remove the rocker arm bracket screws (2).
2. Detach the rocker arm assembly (1).
3. Remove the push rods (3).
(When reassembling)
• When putting the push rods (3) onto the tappets (4), check to see
if their ends are properly engaged with the dimples.
• After installing the rocker arm, be sure to adjust the valve
clearance.
W1021437
Tightening torque Rocker arm bracket screw
9.8 to 11.3 N·m
1.00 to 1.15 kgf·m
7.2 to 8.3 ft-lbs
(1) Rocker Arm Assembly
(2) Rocker Arm Bracket Screws
(3) Push Rod
(4) Tappet
To Next Page
