Kubota G26-2 Workshop Manual

TRANSAXLE
G23-2, G26-2, WSM
2-M5
5. PTO CLUTCH
[1] MECHANICAL PTO CLUTCH
(1) Structure

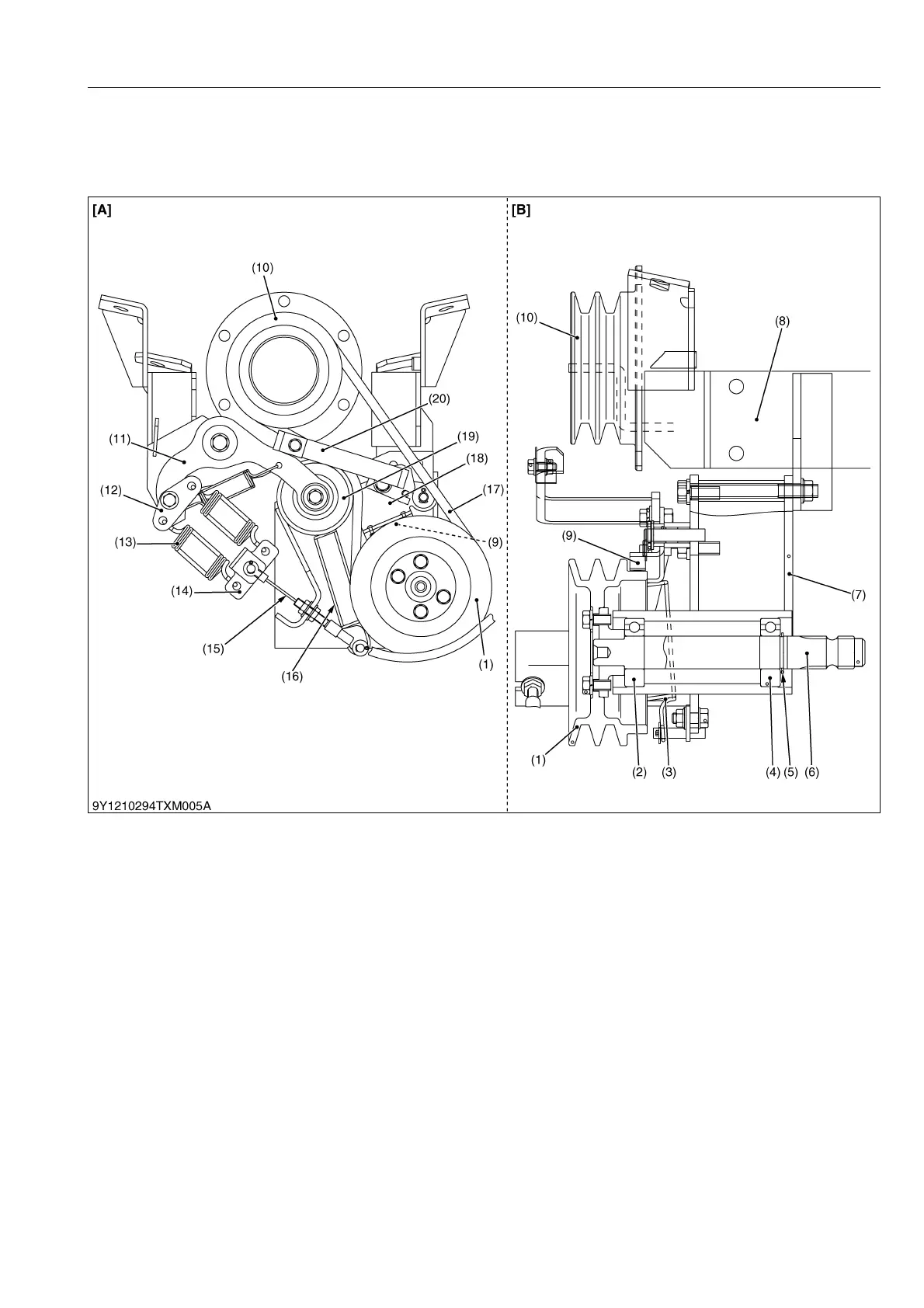

Mechanical PTO clutch consists of the parts as shown in the figure.
The mechanical PTO clutch is controlled by the PTO clutch control lever in mechanical.
When the PTO clutch control lever is set to "DISENGAGED" position, the belt tension pulley is "FREE", the brake
spring pulls the PTO brake shoe and this brake shoe locks the belt driven pulley.
9Y1210892TXM0005US0
(1) Pulley
(2) Ball Bearing
(3) Brake Spring
(4) Ball Bearing
(5) Cir-clip
(6) Front PTO Shaft
(7) Front PTO Bracket
(8) Engine Mounting Bracket (LH)
(9) Brake Shoe
(10) Pulley
(11) Tension PTO Arm
(12) Stay
(13) Spring
(14) PTO Wire Bracket
(15) Clutch Wire
(16) Spring
(17) V Belt
(18) PTO Brake Assembly
(19) Tension PTO Pulley
(20) Release Arm
[A] Front View
[B] Left Side View
