ELECTRICAL SYSTEM
G23-2, G26-2, WSM
6-S29

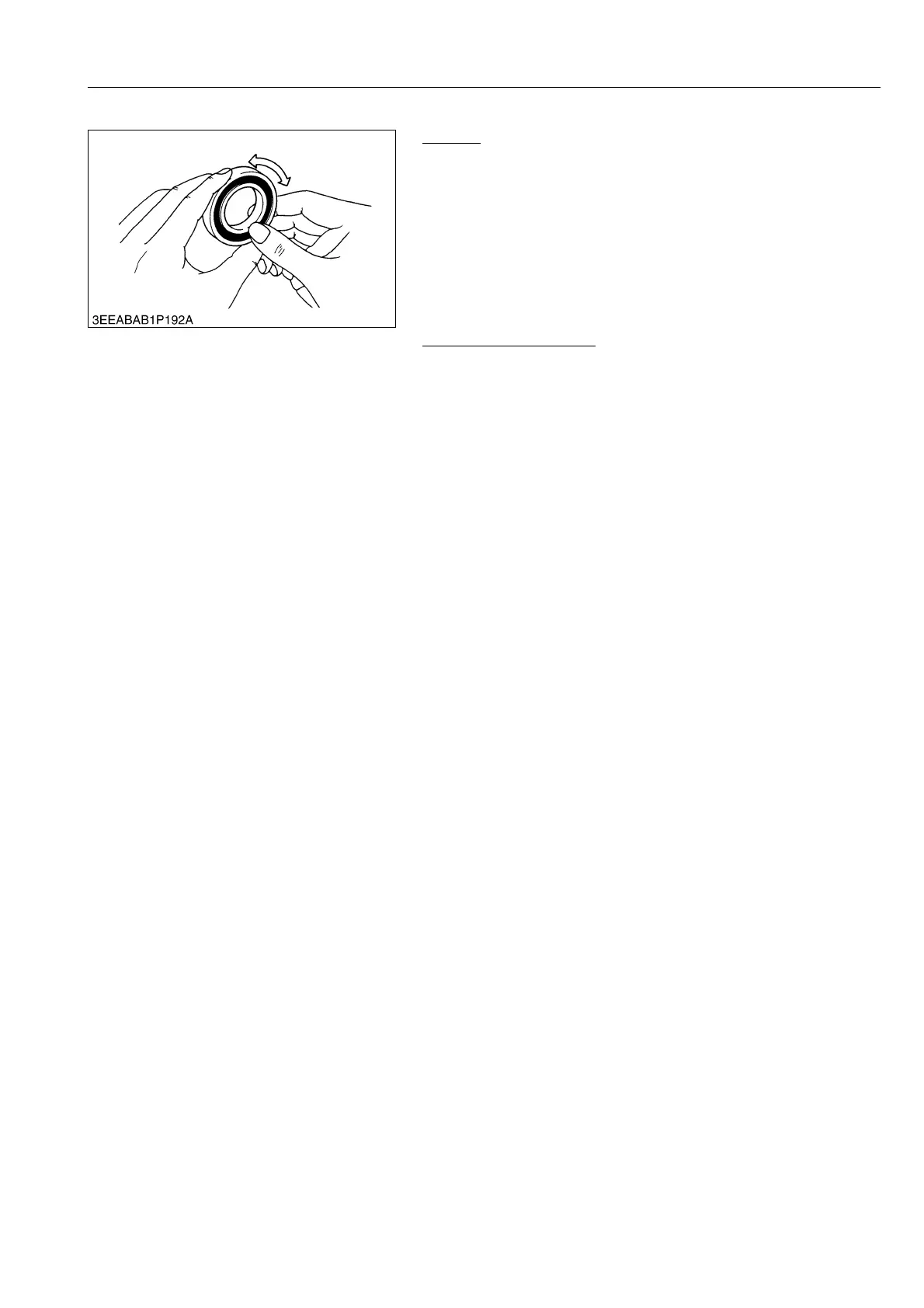

(2) Alternator
Bearing
1.
Check the bearing for smooth rotation.
2.
If it
does not rotate
smoothly, replace it.
WSM000001ELS0039US0
Alternator Components
1.
When the alternator does not
generate or doe
s not
charge the
battery, replace the alternator
as
an assembly.
9Y1210892ELS0037US0
KiSC issued 02, 2014 A
312
314
