INFORMATION
G23-2, G26-2, WSM
I-4

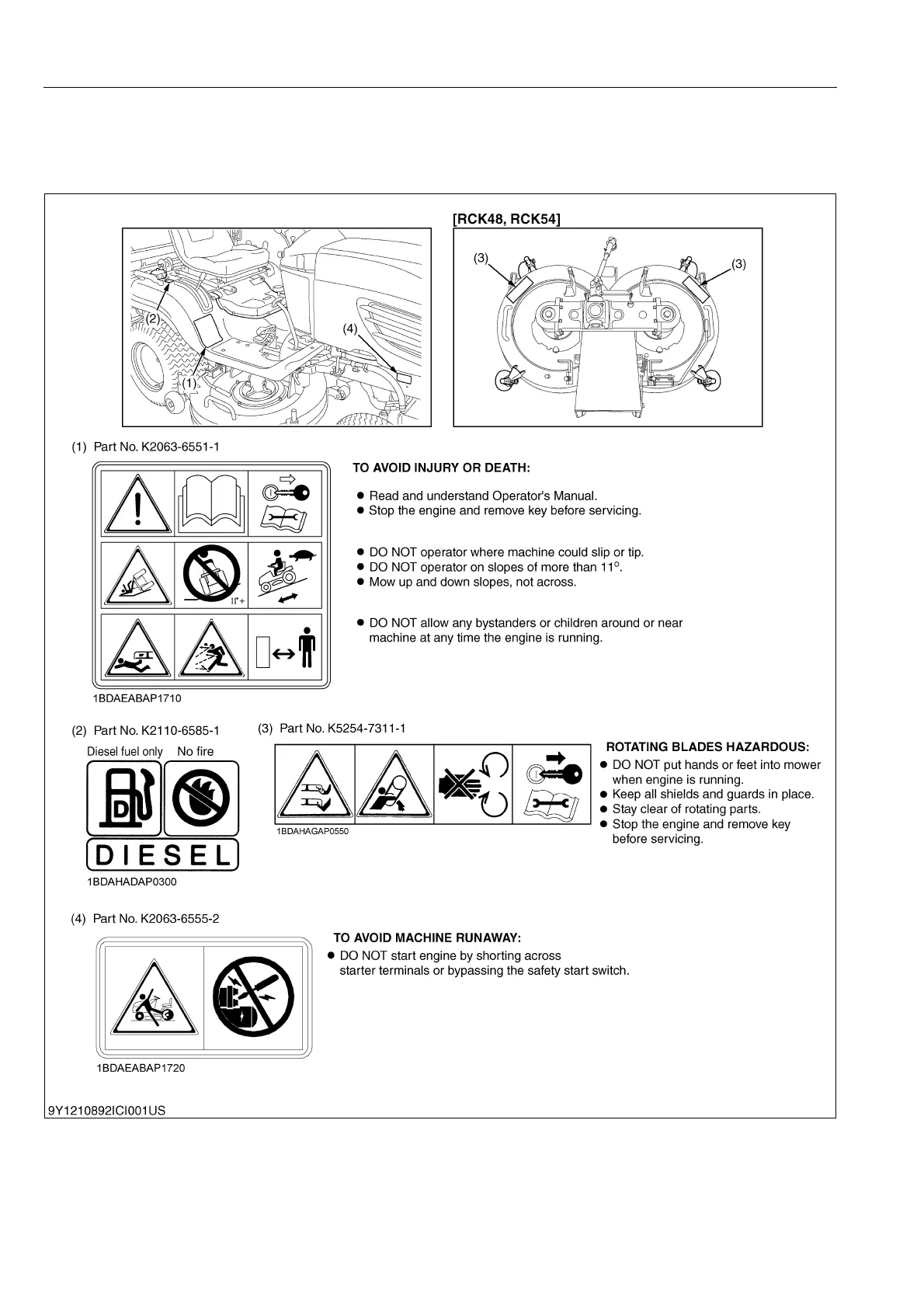

2. SAFETY
DECALS
The following safety decals (
pictorial safety labels) ar
e installed on the machine. If a decal becomes
damaged, illegible or is not on the machine, replace
it. The decal pa
rt number is
listed in the parts list.
WSM000001INI0014US0
9Y1210892INI0001US0
KiSC issued 02, 2014 A
8
10
Table of Contents
Information
5
Safety First
6
Safety Decals
9
Specifications
14
Dimensions
15
General
18
Default Chapter
18
Table of Contents
18
1 Machine Identification
19
Serial Number
19
Cylinder Number
20
2 General Precautions
21
3 Handling Precautions for Electrical Parts and Wiring
22
Wiring
22
Battery
24
Fuse
24
Connector
24
Handling of Circuit Tester
25
Color of Wiring
26
4 Lubricants, Fuel and Coolant
27
5 Tightening Torques
30
General Use Screws, Bolts and Nuts
30
Stud Bolts
30
American Standard Screws, Bolts and Nuts with Unc or Unf Threads
31
Plugs
31
6 Maintenance Check List
32
7 Check and Maintenance
34
Daily Check
34
Walking Around the Machine
34
Mower
37
Starting the Engine
37
Turning the Key Switch "ON
37
While Sitting on the Operator's Seat
37
Others
38
Check Points of Initial 50 Hours
38
Check Points of Every 50 Hours
40
Check Points of Every 100 Hours
55
Check Point of Every 150 Hours
57
Check Points of Every 200 Hours
58
Check Points of Every 400 Hours
63
Check Point of Every 1500 Hours
64
Check Point of Every 3000 Hours
64
Check Point of Every 1 Year
64
Check Points of Every 2 Years
65
Others
69
8 Special Tools
73
Special Tools for Engine
73
Special Tools for Machine
78
9 Tyre Pressure and Wheel
80
Tyre Pressure
80
Wheel
80
10 Implement Limitations
81
Mechanism
84
1 Engine Body
85
Half-Floating Head Cover
85
Closed Breather
85
Piston (G23)
86
Oil Pan (G23)
86
2 Cooling System
87
Cooling Fin (G23)
87
Governor (G26)
87
Boost Compensator
89
Servicing
90
1 Troubleshooting
91
2 Servicing Specifications
94
G23
94
G26
99
3 Tightening Torques
104
4 Checking, Disassembling and Servicing
105
Checking and Adjusting
105
Engine Body
105
Cooling System
107
Lubricating System
107
Fuel System
109
Disassembling and Assembling
112
Separating Engine
112
Cylinder Head and Valves
119
Removing Engine Outer Parts
119
Gear Case and Timing Gears
123
Piston and Connecting Rod
127
Flywheel and Crankshaft
129
Servicing
131
Cylinder Head and Valves
131
Specifications
134
Timing Gears, Camshaft and Governor Gear
139
Piston and Connecting Rod
142
Crankshaft
146
Crankshaft Alignment
146
Cylinder
153
Oil Pump (G23)
154
Oil Pump (G26)
154
Relief Valve Spring
155
Mechanism
157
Structure
158
Hst Section
159
Rear Axle
160
Brake
161
Pto Clutch
162
Mechanical Pto Clutch
162
Structure
162
PTO Clutch "Engaged
163
PTO Clutch "Disengaged
164
Hydraulic Pto Clutch
165
Structure
165
PTO Clutch "Engaged
166
PTO Clutch "Disengaged
167
Servicing
168
Troubleshooting
169
Servicing Specifications
173
Tightening Torques
174
Checking, Disassembling and Servicing
175
Checking and Adjusting
175
Preparation
183
Separating Transaxle
183
Disassembling
193
Transaxle
193
PTO Clutch
202
Servicing
205
Hydrostatic Transmission
205
Transaxle Case
207
Brake
208
Hydraulic PTO Clutch
209
Mechanical PTO Clutch
209
Front Axle
212
Servicing
213
Troubleshooting
214
Servicing Specifications
215
Tightening Torques
216
Checking, Disassembling and Servicing
217
Checking and Adjusting
217
Disassembling and Assembling
218
Separating Front Axle Assembly
218
Disassembling Front Axle
221
Servicing
222
Mechanism
224
1 Hydraulic Circuit
225
G23 Mechanical Pto Clutch Model
225
G26 Hydraulic Pto Clutch Model
226
2 Steering Controller
227
3 Steering Cylinder
228
Servicing
229
Troubleshooting
230
Servicing Specifications
231
Tightning Torques
232
Checking Disassembling and Servicing
233
Checking
233
Power Steering Relief Valve
233
Disassembling
234
Power Steering Cylinder
234
Hydraulic System
238
Mechanism
239
1 Hydraulic Circuit
240
G23 (Mechanical Pto, Ld Model)
240
Power Steering Controller
240
G23 (Mechanical Pto, Hd Model)
241
G26 (Hydraulic Pto, Ld Model)
242
G26 (Hydraulic Pto, Hd Model)
243
2 Hydraulic Pump
244
3 Relief Valve
245
4 Flow Priority Valve
246
5 Control Valve
247
Mower Lift Cylinder
247
Dump Cylinder (Ld)
247
Grass Collector Lift Cylinder (Hd)
247
Servicing
253
Troubleshooting
254
Servicing Specifications
256
Tightening Torques
257
Checking, Disassembling and Servicing
258
Checking and Adjusting
258
Disassembling
261
Removing Hydraulic Parts
261
Disassembling
268
Servicing
271
Hydraulic Pump
271
Lift Cylinder
272
Electrical System
273
Mechanism
274
1 Wiring Diagram
275
2 Starting System
276
Electrical Circuit
276
Safety Switch
277
Type of Safety Switch
277
3 Charging System
278
Electrical Circuit
278
IC Regulator (3P Connector Type)
279
4 Lighting System
280
Electrical Circuit
280
5 Gauges
281
Electrical Circuit
281
Hour and Tachometer
281
Fuel Level Gauge
282
Coolant Temperature Gauge
282
6 Buzzer System
283
Electrical Circuit
283
Buzzer
283
Grass Collector Duct Switch
283
Servicing
284
2 Servicing Specifications
289
3 Tightening Torques
290
4 Checking, Disassembling and Servicing
291
Checking and Adjusting
291
Battery
291
Main Switch
292
Glow Plug
294
Starter
294
Safety Switch
295
Operator Presence Control (OPC) Switch
297
Fuel Pump
298
Grass Collector Buzzer
298
Grass Collector Duct Switch
298
Engine Stop Solenoid
299
Timer Relay
299
Alternator
300
Charging System
300
Combination Switch
302
Gauge
308
Disassembling and Assembling
310
Alternator
310
Starter
310
Servicing
311
Starter
311
Alternator
313
Lifting Mechanism
318
Troubleshooting
320
Servicing Specifications
321
Tightening Torques
322
Checking, Disassembling and Servicing
323
Checking and Adjusting
323
Disassembling and Assembling
324
Servicing
336
Troubleshooting
337
Servicing Specifications
338
Tightening Torques
339
Checking, Disassembling and Servicing
340
Checking
340
Disassembling Grass Collector
341
Disassembling Grass Collector (LD)
341
Disassembling Grass Collector (HD)
344
