Operation
73

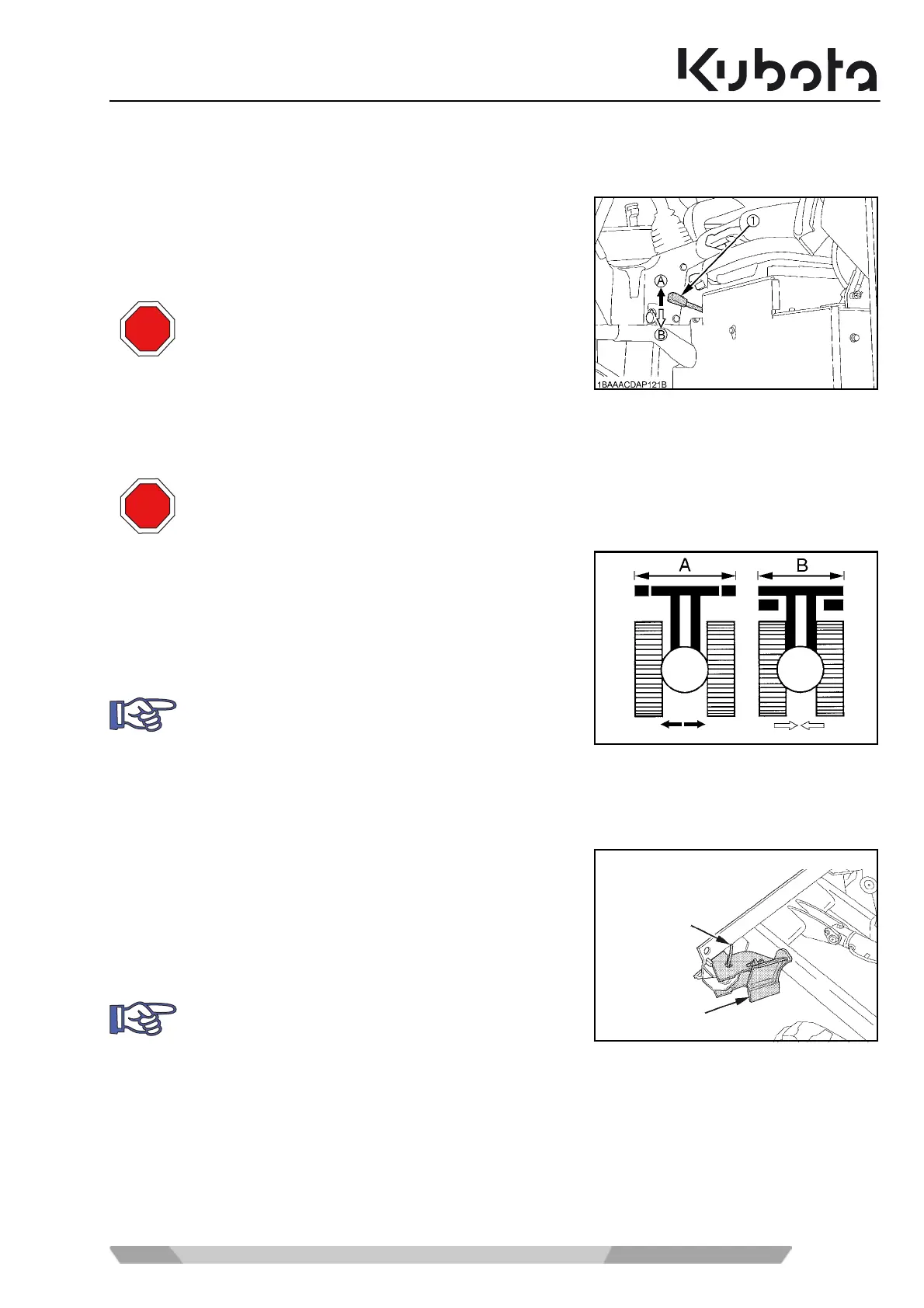

Adjusting of the track width (KX016-4/KX018-4/KX019-4)
For excavator work with extendable track width, please adjust the desired track width before you start.
The track widths are:
!
Pull up the extendable track width lever (1).
The track width is increased from narrow track width (B) to
standard track width (A).
!
Push the extendable track width lever (1) down.
The track width is reduced from standard track width (A) to nar-
row track width (B).
Adjusting of the dozer width (KX016-4/KX018-4/KX019-4)
Set blade width to narrow track width
!
Pull out locking bolt (1).
!
Fold away dozer enlargement (2) behind dozer.
!
Reinsert locking bolt (1).
– Standard track width (A): 1240 mm (KX016-4) resp.
1300 mm (KX018-4/KX019-4)
– Narrow track width (B): 990 mm
Caution - risk of tipping!
When carrying out excavating work using narrow track
width, the excavator will become more instable. The
narrow track width should be used only for passing
through narrow areas.
- As a general rule, perform any excavator work
using standard track width (A).
- The excavator may not be operated with the nar-
row track width (B).
To adjust the respective track width, both track width cylinders must be either completely extended
(standard track width, A) or retracted (narrow track width, B).
When driving with narrow track width the dozer en-
largement must be folded in (page 73).
Carry out this activity on both sides of the dozer.
STOP
STOP
2
1
