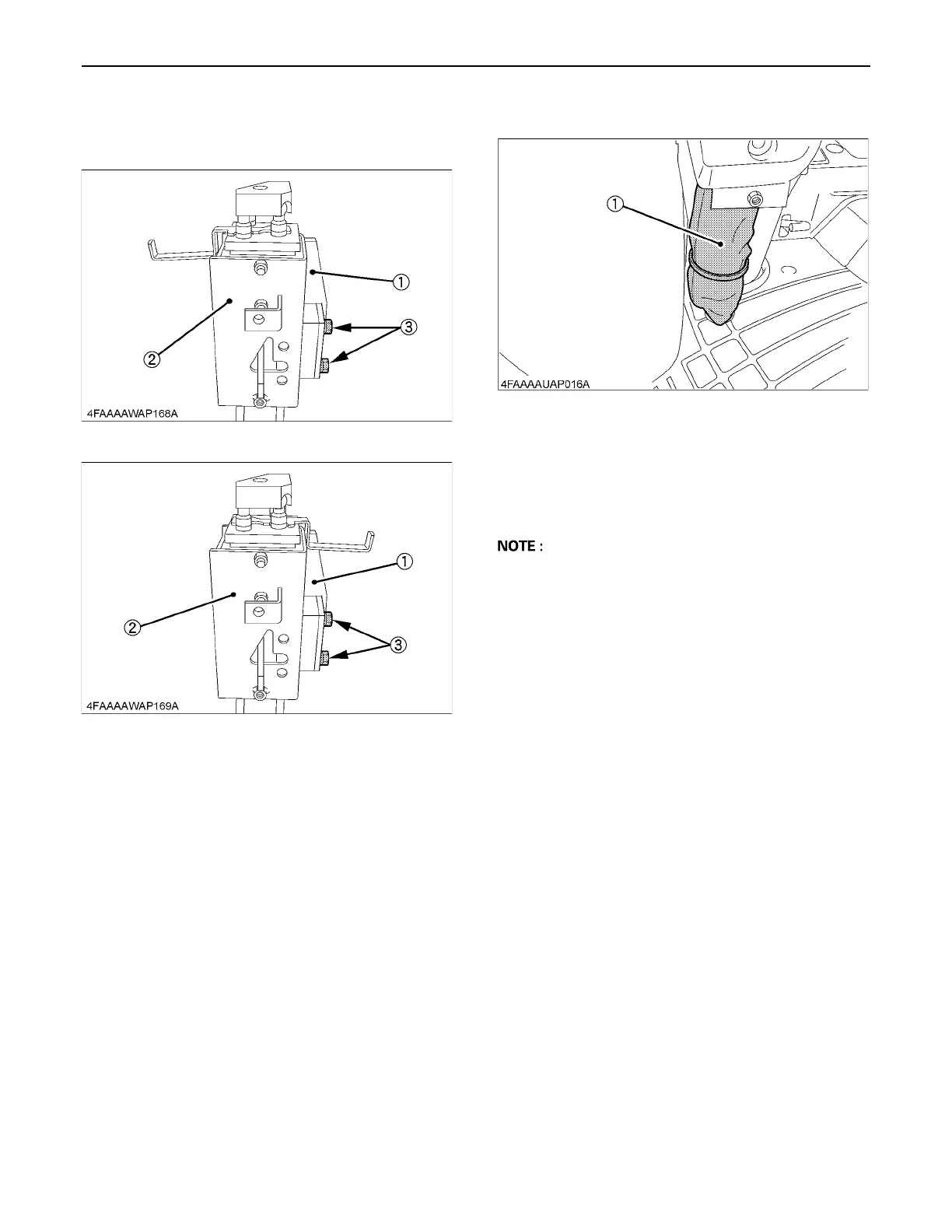

ASSEMBLY INSTRUCTIONS24
3. Fix the controller assembly stay 1 to the controller stay
2.
[M7998 (ROPS MODEL)]
[M7999 (CAB MODEL)]
4. Pass the wire cable in the specified route.
[M7998 (ROPS MODEL)]
[M7999 (CAB MODEL)]
(1) Remove the mat.
(2) Pass the cable through the opening.
(3) Make a cut in the mat so that the cable can pass
through the slit.
A For the cutting position refer to the pattern sheet on
last page.
A Keep the wire cable hidden with the sleeve.
Pass the sleeve down through the bottom of the hole.
(1) Controller stay 2
(2) Controller assy stay 1
(3) 2-M8 x 20 bolts
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) 3-Assy cable with sleeve
