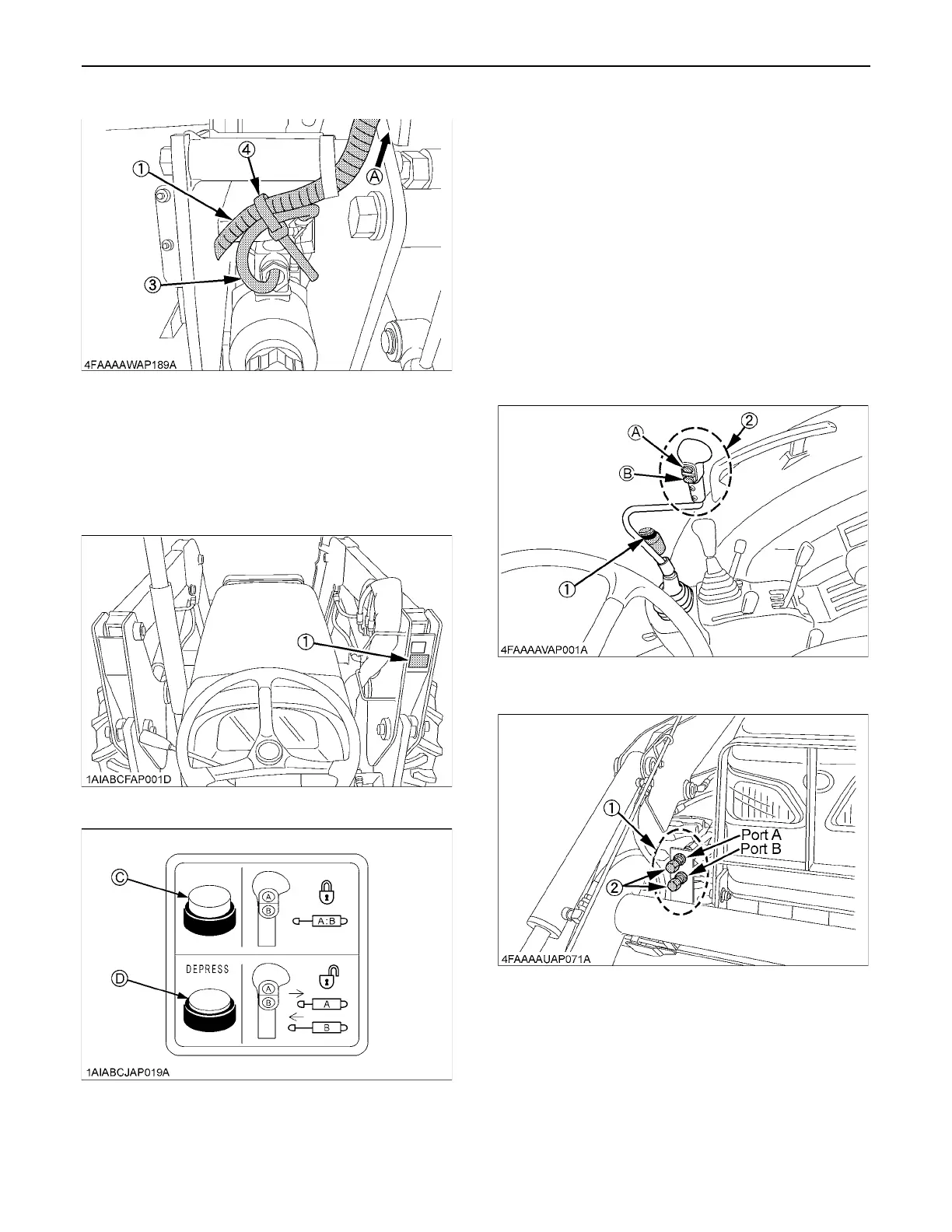

ASSEMBLY INSTRUCTIONS50
B3rd Function Control Operation
1. Apply the label as shown in the illustration.
2. Front hydraulic valve main switch
Push the front hydraulic valve main switch (1) to
engage the front hydraulic valve.
A light on the switch will illuminate to indicate that the
front hydraulic valve is on, and to enable the activation
switch (2).
3. Activation switch
(1) When pressing the "A" button, hydraulic oil will
come out of Port A and return through Port B as
long as the switch is pressed.
(2) When pressing the "B" button hydraulic oil will
come out of Port B and return through Port A as
long as the switch is pressed.
4. Push the front hydraulic valve main switch again to
disengage the front hydraulic valve, and the light of the
front hydraulic valve main switch will turn off.
(1) Wiire harness
(2) Solenoid valve harness-1
(3) Solenoid valve harness-2
(4) Clamp (cord band)
(1) Label
(C) Front hydraulic valve main switch "OFF"
(D) Front hydraulic valve main switch "ON"
(1) Front hydraulic valve main switch
(2) Activation switch
(1) Front hydraulic outlet
(2) Plug

Kubota LA1154 Specifications

General

Lift Capacity at Pivot Pin	1150 kg
Bucket Width	72 in
Overall Width	72 in
Hydraulic Flow Rate	45 L/min (11.9 gpm)
Lift Capacity at 500mm Forward	850 kg (1874 lbs)
Max Lift Height	3.05 m (120 in)
Breakout Force at 500mm Forward	2100 kg (4630 lbs)
Weight	680 kg (1500 lbs)
