ASSEMBLY INSTRUCTIONS28
BCable Guide [M7998 (ROPS Model)]

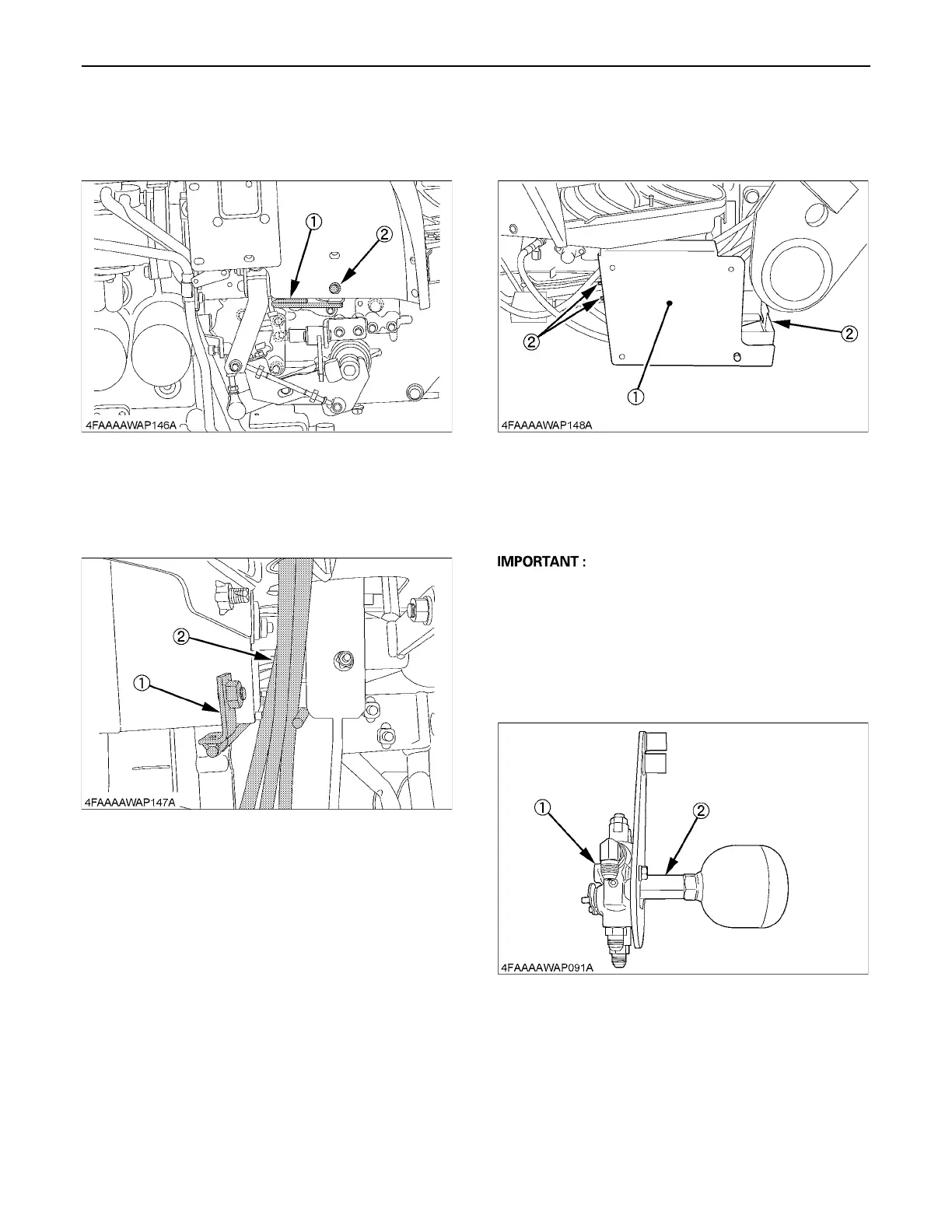

1. Attach the cable guide to the fender.
2. Pass the controller cable through the cable guide.
BControl Valve Cover
1. Attach the valve cover to the valve stay.
BAccumulator (if equipped)
When the control valve is of self-level type:
A If the machine is equipped with the optional self-level
valve, fit the accompanying orifice to the accumulator
assembly (RH) in the following procedure.
A If the machine does not have a self leveling valve, the
orifice is not needed.
1. Remove the adapter from the accumulator valve.
(1) Cable guide
(2) 1-M8 x 16 bolt with washers
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) Cable guide (2) Controller cable
(1) Valve cover
(2) 3-M8 x 16 bolts with washers
Tightening torque: See "TIGHTENING TORQUE OF
BOLTS AND NUTS" section.
(1) Accumulator assy (RH)
(2) Adapter assy
