Kubota M9000 User Manual

G-10
M6800 · M6800S · M8200 · M9000, WSM
G GENERAL

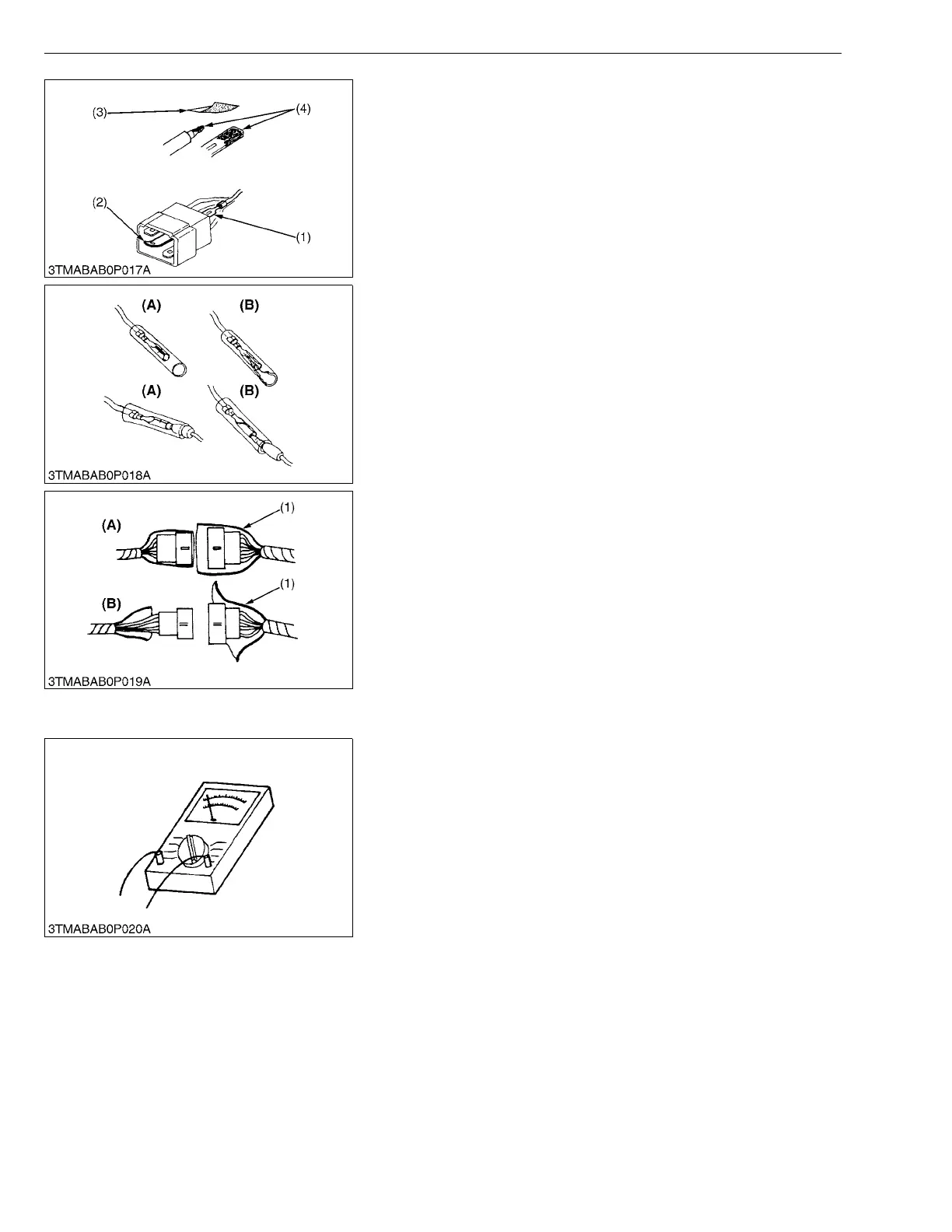

• Use sandpaper to remove rust from terminals.
• Repair deformed terminal. Make certain there is no terminal
being exposed or displaced.
W1012346
• Make certain that there is no female connector being too open.
W1012430
• Make certain plastic cover is large enough to cover whole
connector.
W1012519
[5] HANDLING OF CIRCUIT TESTER
• Use tester correctly following manual provided with tester.
• Check for polarity and range.
W1012684
(1) Exposed Terminal
(2) Deformed Terminal
(3) Sandpaper
(4) Rust
(A) Correct (B) Incorrect
(1) Cover (A) Correct
(B) Incorrect
KiSC issued 03, 2008 A

Kubota M9000 Specifications

General

Engine Type	Diesel
Engine Power	90 HP
Wheelbase	88.6 inches
Drive	4WD
Horsepower	90 HP
3-Point Hitch Category	II
Tire Size (Front)	9.5-24
Tire Size (Rear)	16.9-30
Transmission Type	Fully synchronized
Width	74.4 inches
Displacement	201 cu in
