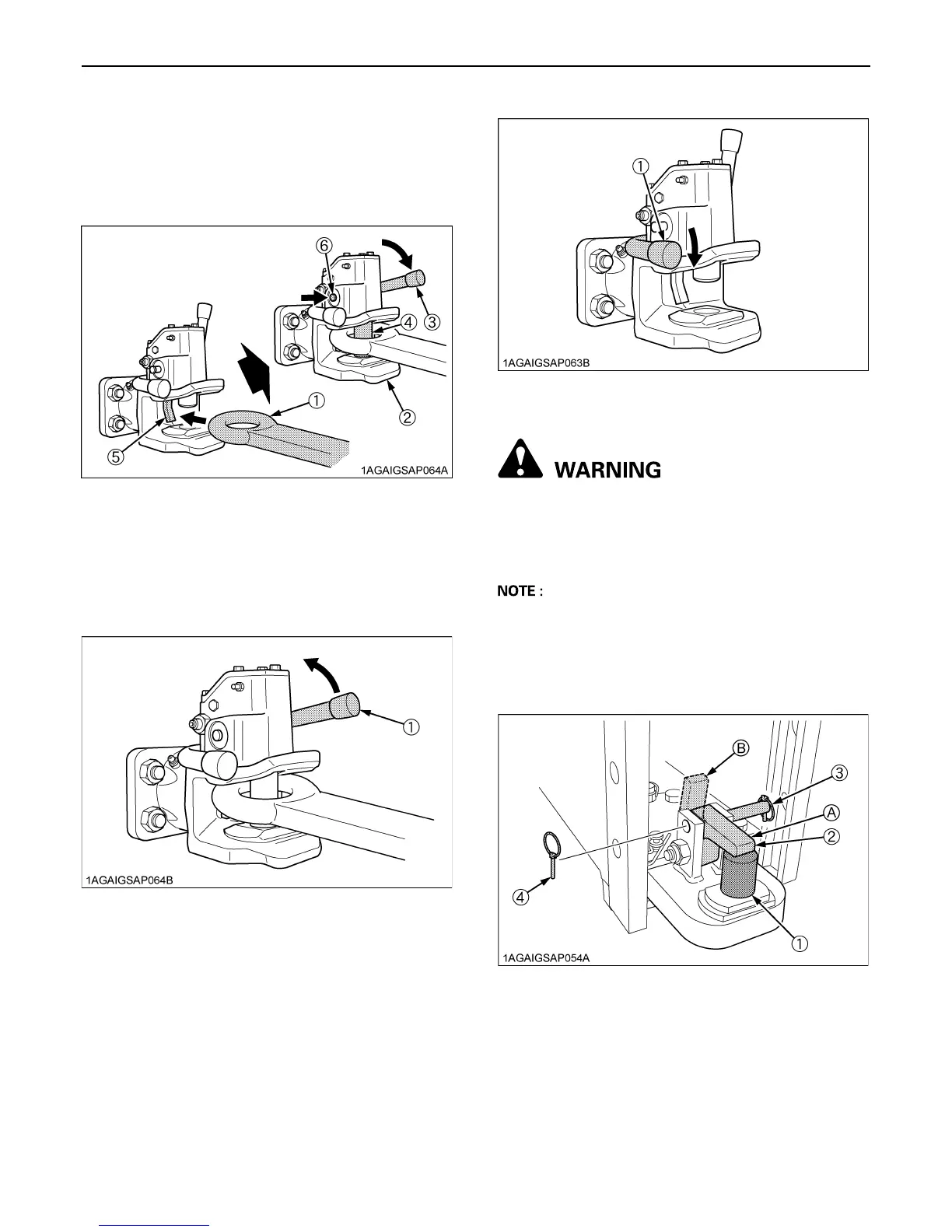

THREE-POINT HITCH & DRAWBAR48
2. Slowly reverse the tractor: the drawbar eye on the
trailer must fully penetrate into the hitch assembly until
the trigger lever is released, whereupon the shunt
force produced will cause the immediate insertion of
the coupling pin as well as the automatic retraction of
the security pin.
C UNCOUPLING
1. Lift the operating handle until it locks into position.
2. Travel forward the tractor until the drawbar eye is
disengaged.
3. For safety reasons, it is hereby recommended that the
drawbar coupling is kept locked at all times.
To lock the drawbar coupling, act on the lock handle
rotating it in the direction of the arrow, as illustrated.
PITON-FIX
To avoid personal injury:
A Never pull from the top link, the rear axle or any
point above the piton-fix. Doing so could cause
the tractor to tip over rearward causing
personal injury or death.
A The piton-fix load is referred to "IMPLEMENT
LIMITATIONS" section.
BPiton-Fix
In using the piton-fix to pull an attachment, lock the
retainer with pin.
(1) Drawbar eye
(2) Hitch assembly
(3) Operating handle
(4) Coupling pin
(5) Trigger lever
(6) Security pin
(1) Operating handle
(1) Lock handle
(1) Piton-fix
(2) Retainer
(3) Pin
(4) Lynch pin
(A) "LOCK"
(B) "UNLOCK"
