HYDRAULIC UNIT
The standard tractor has following hydraulic control
systems as shown below. Therefore, use the most
appropriate system for the implement you are using.
C 3-Point Hitch Control System
1. Position Control
2. Draft Control
3. Mixed Control
4. Float Control
C Remote Hydraulic Control System
A Do not operate until the engine is warmed up. If
operation is attempted when the engine is still cold, the
hydraulic system may be damaged.
A If noises are heard when implement is lifting after the
hydraulic control lever has been activated, the
hydraulic mechanism is not adjusted properly. Unless
corrected, the unit will be damaged. Contact your
KUBOTA Dealer for adjustment.
3-POINT HITCH CONTROL SYSTEM
To avoid personal injury:
A Before using the 3-point hitch controls, ensure
that no person or object is in the area of the
implement or 3-point hitch. Do not stand on or
near the implement or between the implement
and tractor when operating the 3-point hitch
controls.
BPosition Control
This will control the working depth of 3-point hitch
mounted implement regardless of the amount of pull
required.
BDraft Control
This will control the pull of the 3-point implement. As the
load on the 3-point hitch changes due to various soil
conditions, the draft control system automatically
responds to these changes by either raising or lowering
the implement slightly to maintain a constant pull.
Place the position control lever in the lowest position and
set the implement pull with the draft control lever.

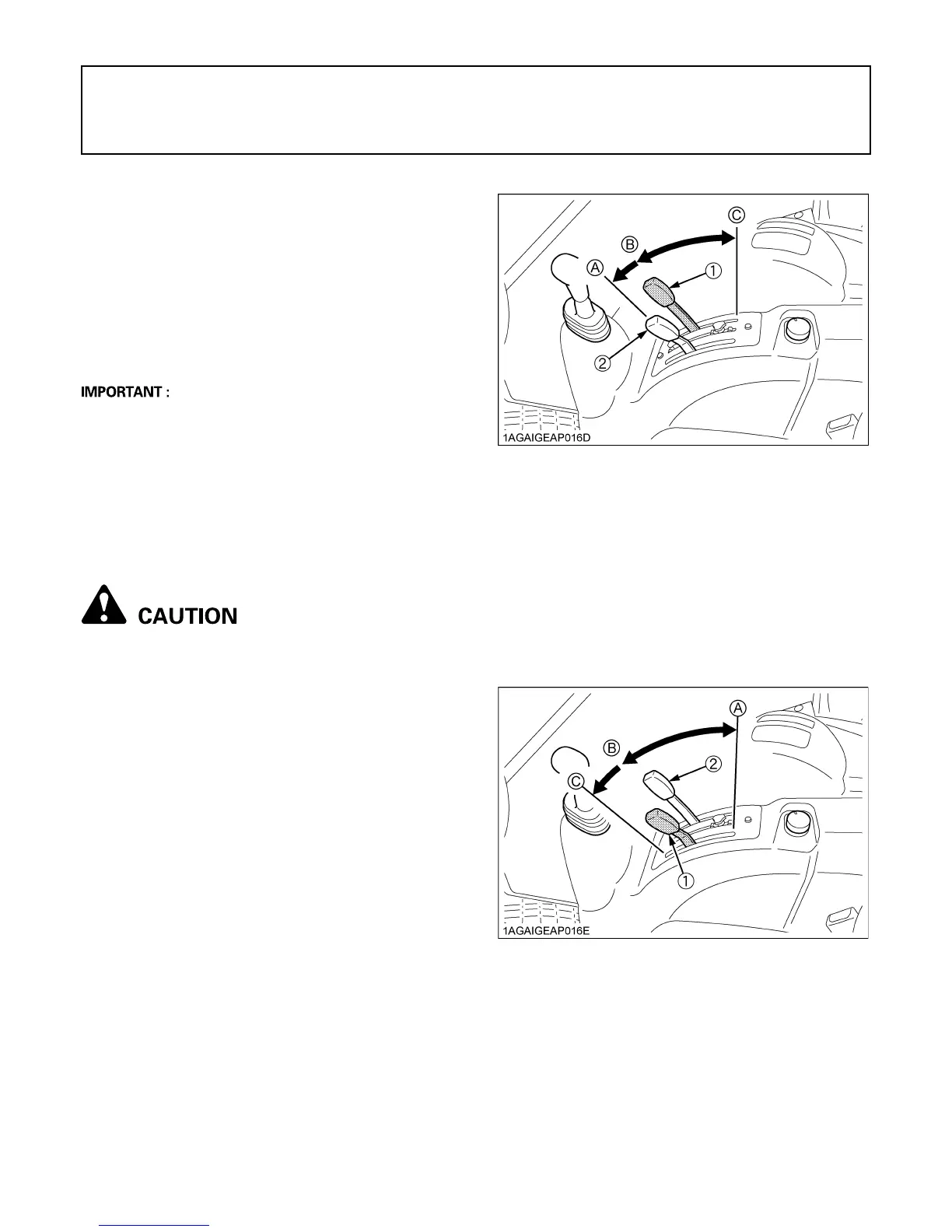

(1) Position control lever
(2) Draft control lever
(A) "FLOAT"
(B) "DOWN"
(C) "UP"
(1) Draft control lever
(2) Position control lever
(A) "SENSITIVE"
(B) "INSENSITIVE"
(C) "FLOAT"
