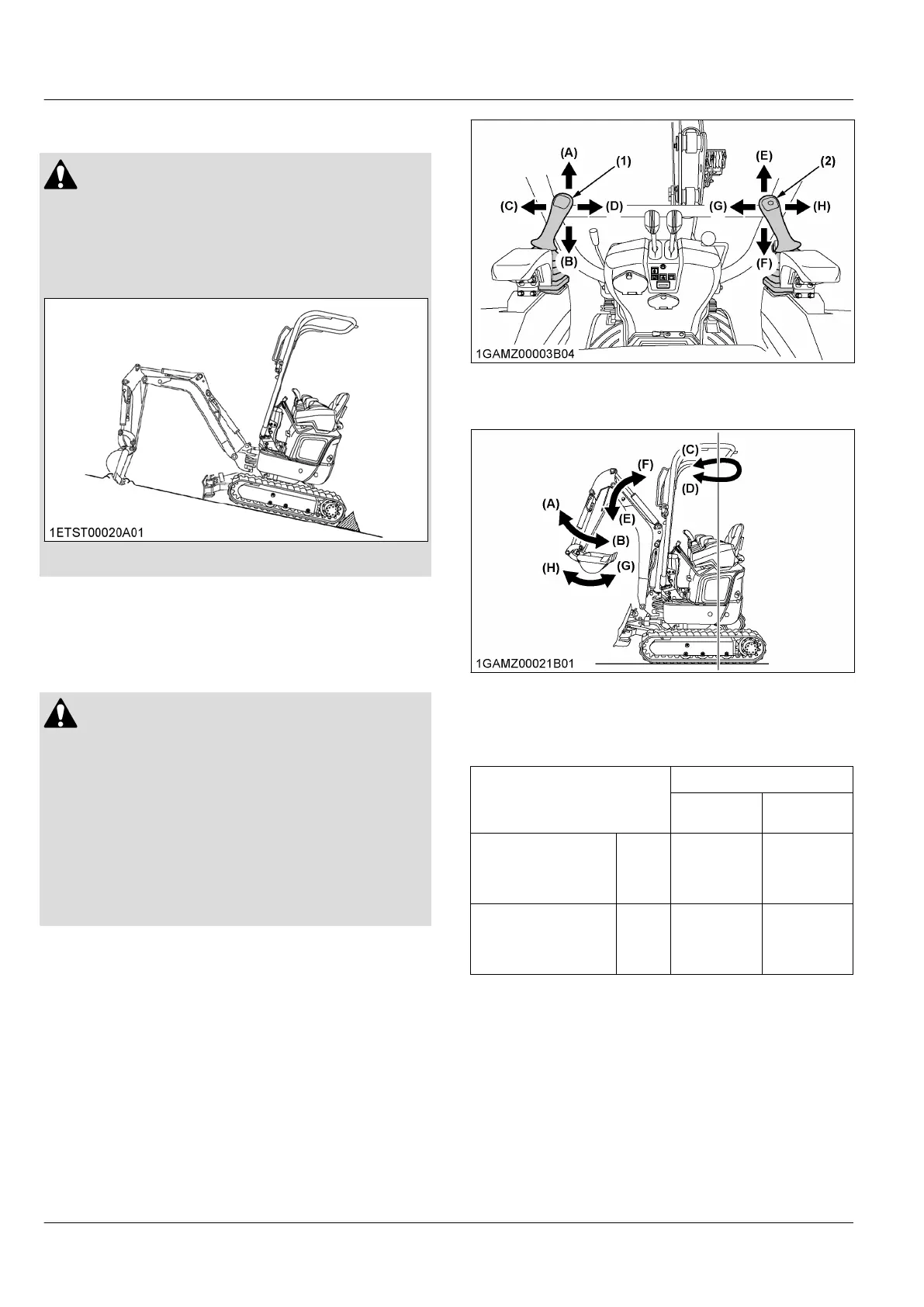

PARKING ON A SLOPE
WARNING
T
o avoid personal injury or death:
• When the machine is parked or left unattended
on a slope, put the bucket on the ground and
place all control levers in their “NEUTRAL”
positions, then brace the tracks with chocks.
(1) Chock
ATTACHMENT OPERATION
The levers move the boom, arm and bucket as well as
the
swing frame. The lever positions and functions are
as follows:
WARNING
To avoid personal injury or death:
• The control lever pattern on this machine is
changeable. Before operation, check the current
pattern setting.
• Before changing the control lever pattern, stop
the engine.
• Before operation, check the surrounding area to
ensure safety. Move the levers slowly.
• Make sure the control lever pattern has been
changed as specified.
(1) Attachment control lever (left)
(2)
Attachment control lever (right)
Pattern B (ISO)
NOTE :
• The
machine has been factory set to pattern B
(ISO).
Lever position
Movement
Pattern A
(JD)
Pattern B
(ISO)
Left front attachment
control lever
(A)
(B)
(C)
(D)
Boom down
Boom up
Swivel left
Swivel right
Arm up
Arm crowd
Swivel left
Swivel right
Right front attachment
control lever
(E)
(F)
(G)
(H)
Arm up
Arm crowd
Bucket crowd
Bucket dump
Boom down
Boom up
Bucket crowd
Bucket dump
1. Pattern change (switching from
Pattern A to Pattern B)
1. Stop the engine, lower the attachments to the
ground, and release the pressure from the
cylinders.
OPERATING THE EXCAVATOR PARKING ON A SLOPE
38
U10-5
