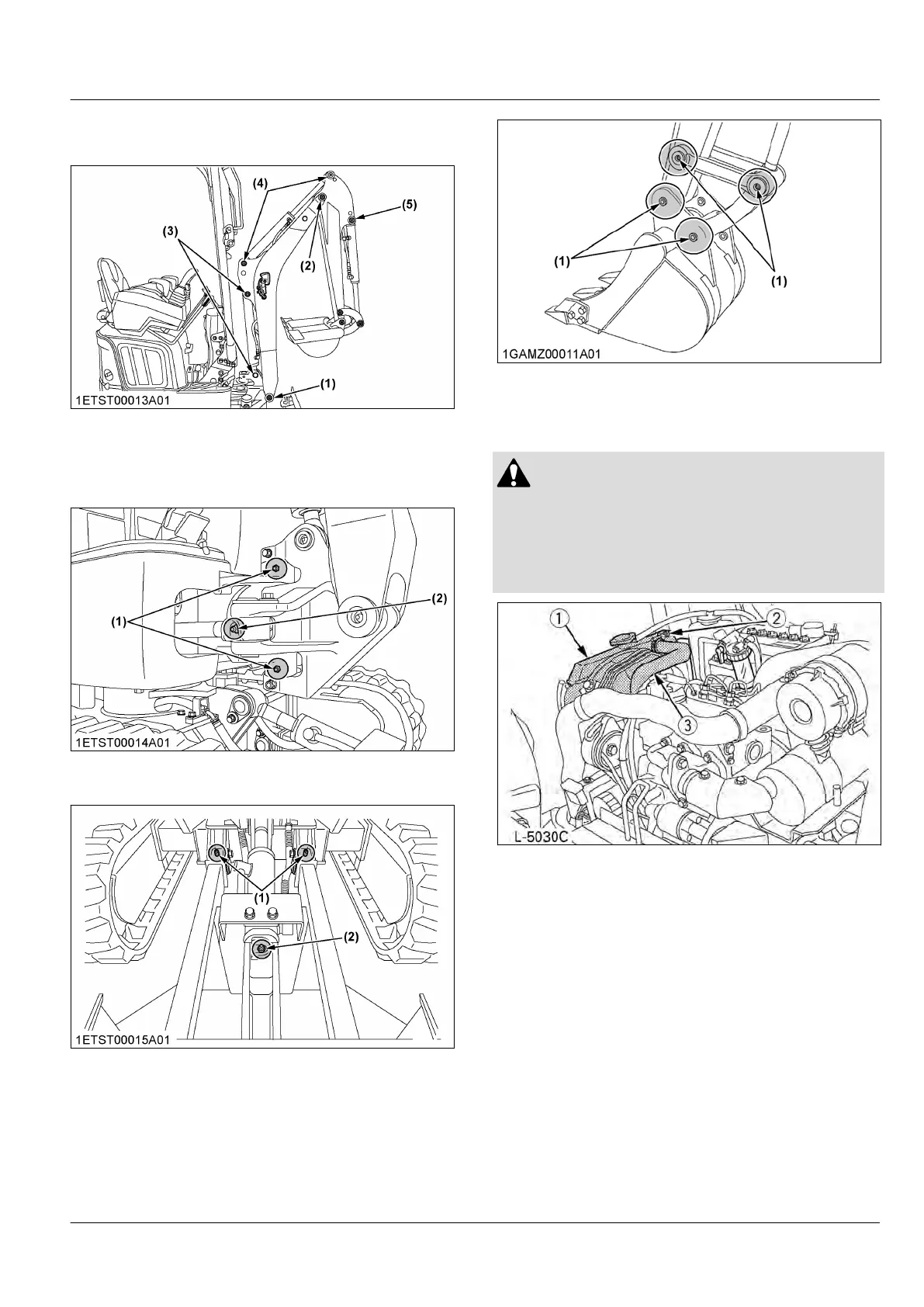

1. Grease
the marked grease fittings shown in the
following illustrations.
(1) Boom bottom linkage (1 place)
(2) Arm bottom linkage (1 place)
(3) Boom cylinder boss (2 places)
(4) Arm cylinder boss (2 places)
(5) Bucket cylinder pin (1 place)
(1) Boom swing fulcrum (2 places)
(2)
Wing cylinder boss (1 place)
(1) Dozer linkage pin (2 places)
(2)
Dozer cylinder boss (1 place)
(1) Bucket link pin (4 places)
6. Checking the radiator
WARNING
T
o avoid personal injury or death:
• Always stop the engine before checking the
radiator.
• Wear eye protection when cleaning with
compressed air.
(1) Radiator
(2) Hose clamps
(3) Rubber hoses
Checking the fins
1.
Check to see if the fins are clogged.
2. If the fins are clogged, clean them with compressed
air or steam.
IMPORTANT :
• In order to allow free flow of air through the
cooling elements and prevent the engine from
overheating, radiator fins and ribs must be kept
clean.
Checking the rubber hoses and clamps
1. Check
the rubber hoses for damage and replace if
cracked or old.
2. Check that the hose clamps are tight enough.
DAILY CHECKS MAINTENANCE
