WSM U15-3
II-72

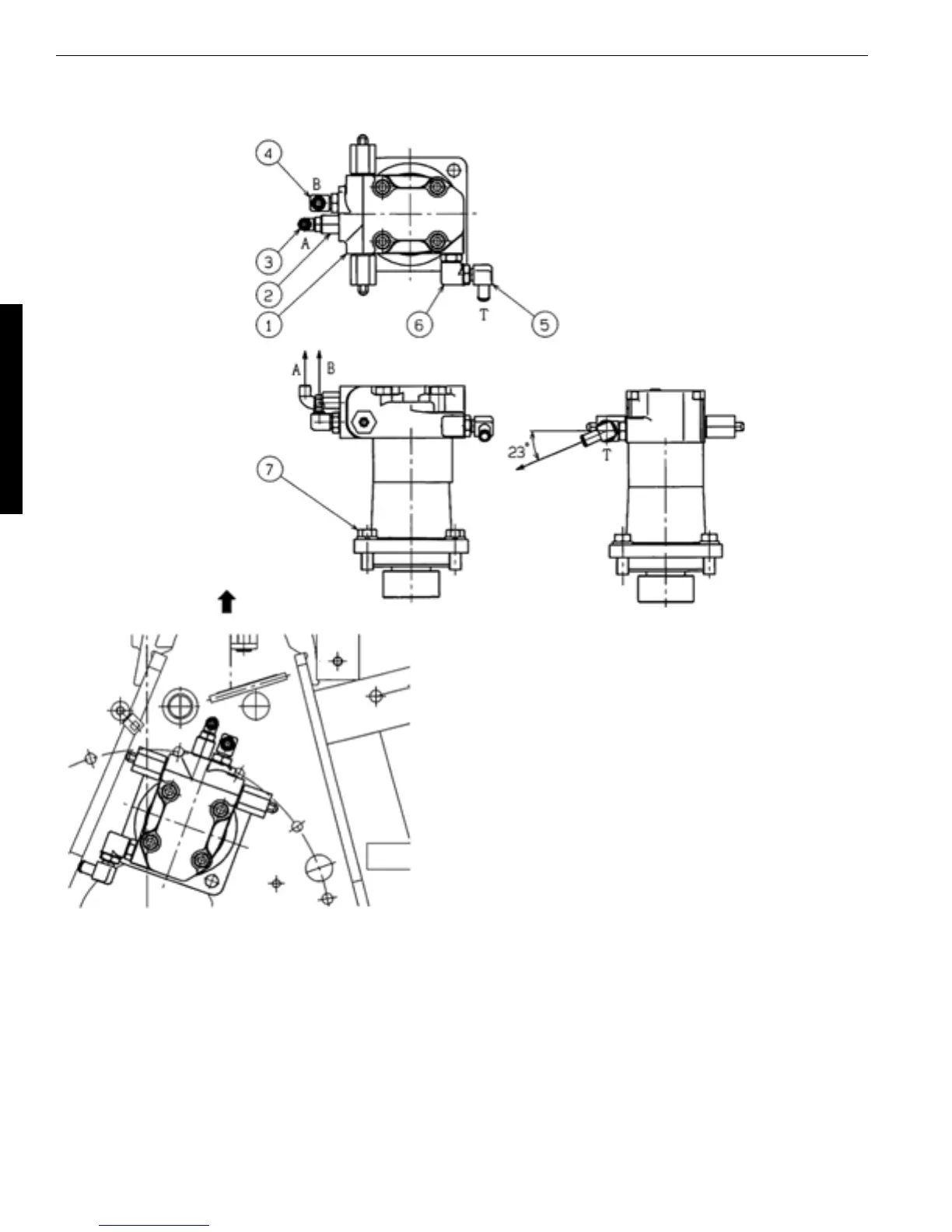

4. Swivel Motor fittings
The outer diameter is same as that of current model. Relief pressure differs.
No. Part Name Q'ty Remarks
(1) Motor assembly (Swivel) 1
(2) Pipe joint (S, G3/8-G1/4) 1 A
(3) Pipe joint (L, G1/4-G1/4) 1 For 3/8 A
(4) Pipe joint (L, G3/8-G1/4) 1 B
(5) Pipe joint (S, G3/8-13) 1 T
O-ring 1 T
(6) Pipe joint (L, G3/8-G3/8) 1 For 3/8 A, B
(7) Bolt 4 M14 x 1.5 T
Control valve Rear (B3)
Mounting direction
Machine front side
Control valve Front (A3)
Control valve Rear (T1)
To Next Page
