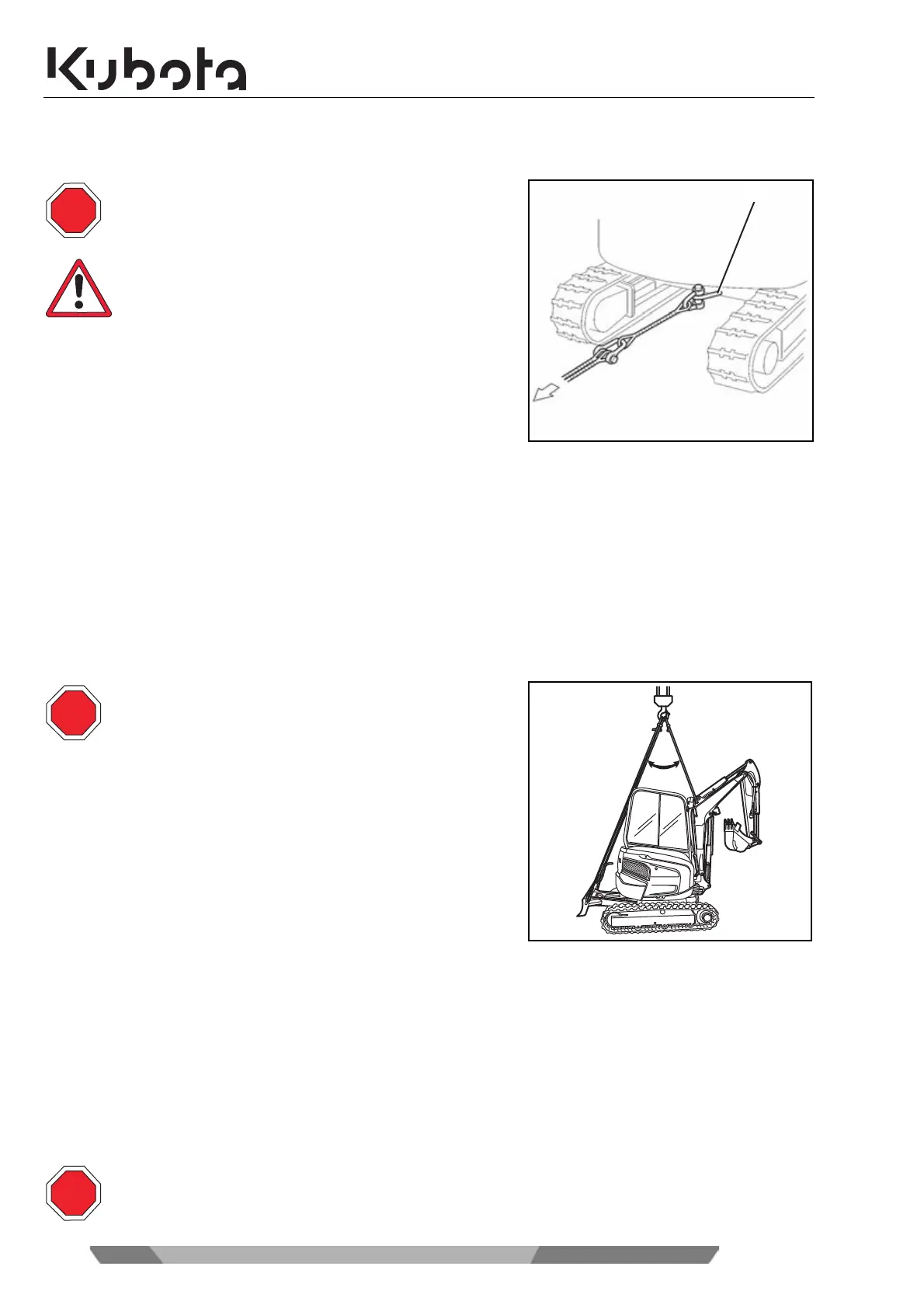

Recovery, loading and transport
Recovery
 Attach the tow bar or tow rope to the attachment point (1) on
the excavator and to the towing vehicle.
 If the attachment point of the excavator is not accessible, a tow rope can also be fastened around the centre
of the dozer.
 During the recovery procedure, the operator must be seated on the operator's place.
 Drive slowly with the towing vehicle to avoid abrupt loads.
Hoisting the excavator with a crane
 Bring the excavator to the lifting position (see figure) on level
ground.
 Lift the dozer until the dozer cylinders are fully retracted. Also
see the "Operating the controls during excavation work" sec-
tion (page 80).
 Bring the boom in line with the longitudinal axis of the swivel frame.
 Bucket cylinders and arm cylinders, respectively, must be extended up to the stop position.
 Boom cylinders must be extended up to the stop position.
 Swivel the swivel frame so that the dozer is located at the rear.
 Close and lock the door and covers.
Adhere to the safety rules (page 14) and the safety
rules for recovery (page 30).
A recovery is only allowed over a short distance and at
wal
king speed (0.5 m/s ~ 1.0 m/s).
Adhere to the safety rules (page 14) and the safety
rules for hoisting the excavator with a crane (page 30).
The excavator may only be lifted at the points provided. Do not attach the lifting gear to any other
ey
es or areas as this can lead to substantial damage.
1
STOP
≤ 30°
STOP
STOP
