3-M15
B1710 · B2110 · B2410 · B2710, WSM
TRANSMISSION

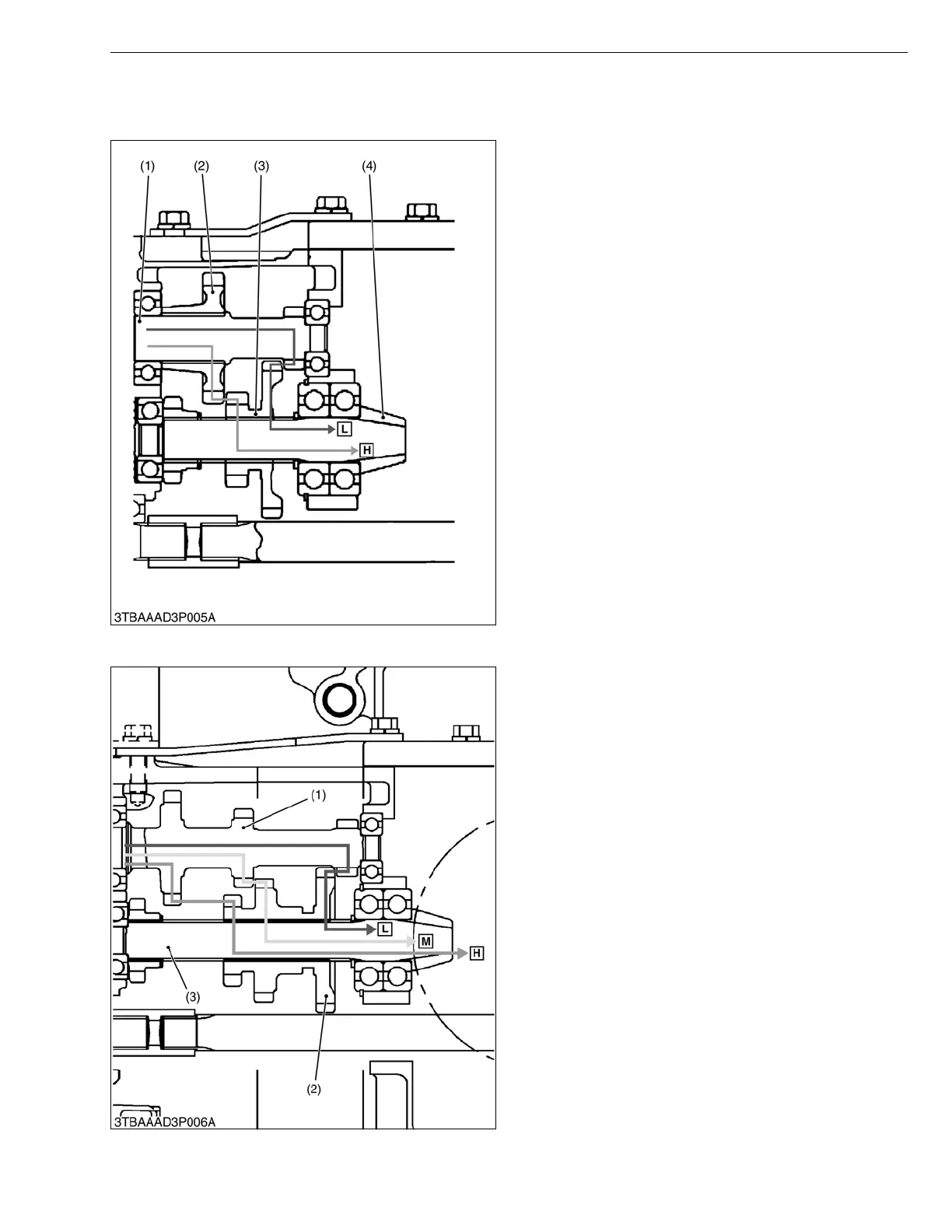

[3] RANGE GEAR SHIFT SYSTEM
(1) B1710, B2110, B2410 (Two Speeds)
Two kinds of power flow (from 4th shaft to spiral bevel
pinion shaft) are available by operating the high-low gear
shift lever to shift the gear (3) on the spiral bevel pinion
shaft (4).
■ Low Position
4th Gear Shaft (1) → Shifter Gear (3) → Spiral Bevel
Pinion Shaft (4)
■ High Position
4th Gear Shaft (1) → Gear (2) → Shifter Gear (3) →
Spiral Bevel Pinion Shaft (4)
W10159420
(2) B2710 (Three Speeds)
Three kinds of power flow (from 4th shaft to spiral
bevel pinion shaft) are selected by operating the range
gear shift lever to shift the gears (2) on the spiral bevel
pinion shaft (3).
■ Low Position
4th Gear Shaft 11T (1) → Shifter Gear (2) → Spiral
Bevel Pinion Shaft (3)
■ Middle Position
4th Gear Shaft 16T (1) → Shifter Gear (2) → Spiral
Bevel Pinion Shaft (3)
■ High Position
4th Gear Shaft 23T (1) → Shifter Gear (2) → Spiral
Bevel Pinion Shaft (3)
W10161470
[Manual Transmission]
(1) 4th Gear Shaft with 11T Gear
(2) 23T Gear
(3) 12T-32T Shifter Gear
(4) Spiral Bevel Pinion Shaft
[Hydrostatic Transmission]
(1) 4th Gear Shaft with 16T Gear
(2) 22T Gear
(3) 13T-27T Shifter Gear
(4) Spiral Bevel Pinion Shaft
(1) 4th Gear Shaft with 11T-16T-
23T Gear
(2) 14T-27T-32T Shifter Gear
(3) Spiral Bevel Pinion Shaft
KiSC issued 11, 2006 A
