G-42
B1710 · B2110 · B2410 · B2710, WSM
G GENERAL

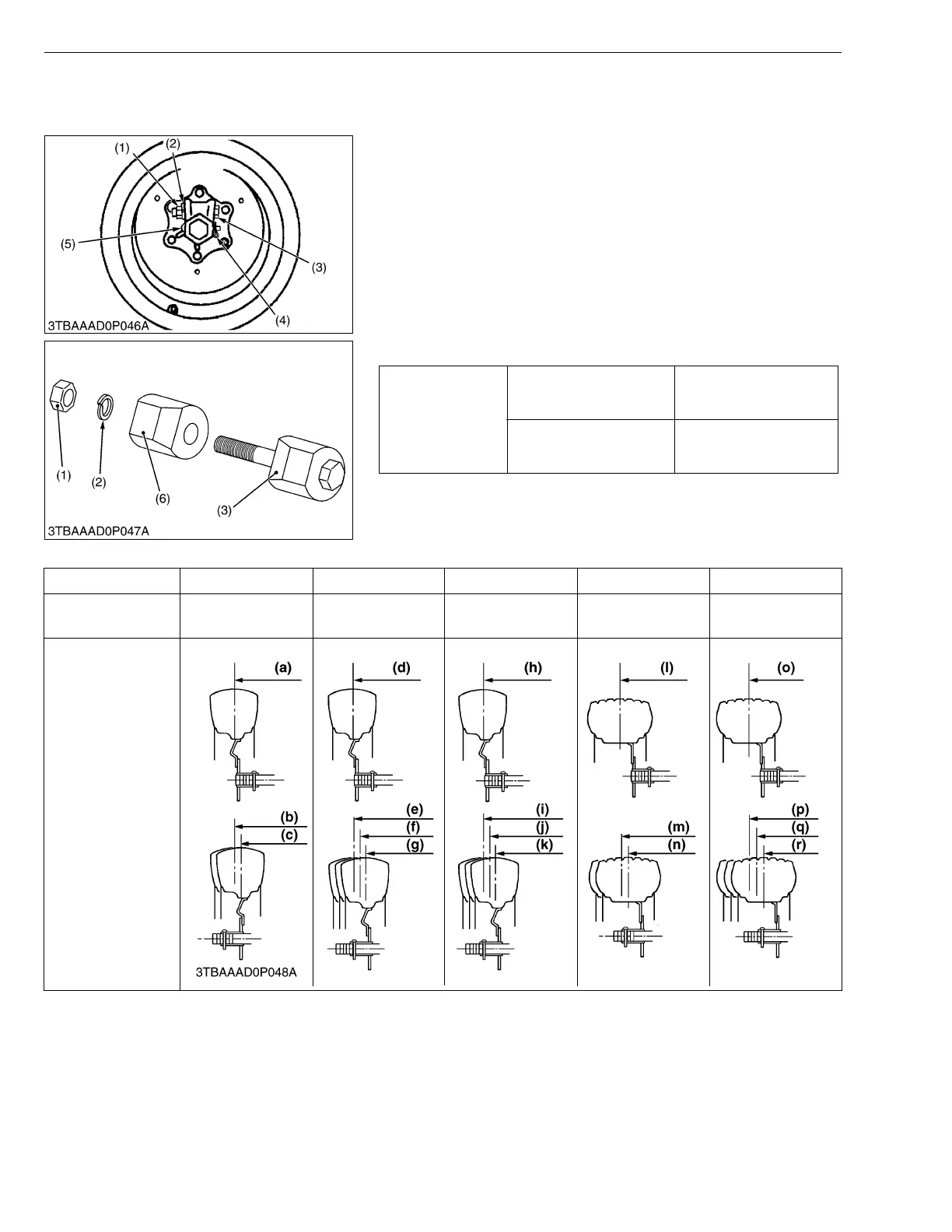

(2) Rear Tread
(A) B1710, B2110, B2410
Rear tread can be adjusted in 2 or 3 steps depending on the
model. To change the tread.
1. Loosen the nut (1) of cotter pin bolt.
2. Remove the snap pin (4) and wheel hub pin (5).
3. Change the tread to desired position.
4. Re-set the wheel hub pin, snap pin and cotter pin bolt.
• When re-filling or adjusting a wheel, tighten the bolts to the
following torques then recheck after driving the tractor 200
m (200 yards) and there after daily check service.
• Remove the wheel hub and reinstall it on the other side of the
wheel disk, then set the wheel as shown.
W10358430
Tightening torque
Cotter setting bolt and nut
123 to 147 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 ft-lbs
Wheel hub mounting nut
108 to 125 N·m
11.0 to 12.8 kgf·m
79.6 to 92.6 ft-lbs
(1) Nut
(2) Spring Washer
(3) Bolt with Cotter
(4) Snap Pin
(5) Wheel Hub Pin
(6) Cotter
Models B1710 B2110 B2410 B1710 / B2110 B2410
Tires 8 – 16 Farm 9.5 – 16 Farm 9.5 – 18 Farm
31 × 13.5 – 15
Turf
315 / 75D – 15
Turf
Tread
(a) 910 mm (35.8 in.)
(b) 790 mm (31.1 in.)
(c) 740 mm (29.1 in.)
(d) 1015 mm (40.0 in.)
(e) 895 mm (35.2 in.)
(f) 845 mm (33.3 in.)
(g) 795 mm (31.3 in.)
(h) 1035 mm (40.7 in.)
(i) 910 mm (35.8 in.)
(j) 860 mm (33.9 in.)
(k) 810 mm (31.9 in.)
(l) 1085 mm (31.9 in.)
(m) 965 mm (38.0 in.)
(n) 915 mm (36.0 in.)
(o) 1085 mm (42.7 in.)
(p) 965 mm (38.0 in.)
(q) 915 mm (36.0 in.)
(r) 865 mm (34.1 in.)
