[5] CHECK POINTS OF EVERY 200 HOURS
Replacing Engine Oil Filter Cartridge
1. See page G-12.
W10194500
Checking Radiator Hose and Hose Clamp
Check to see if radiator hoses are properly fixed every 200 hours
of operation or six months, whichever comes first.
1. If hose clamps are loose or water leaks, tighten bands securely.
2. Replace hoses and tighten hose clamps securely, if radiator
hoses are swollen, hardened or cracked.
Replace hoses and hose clamps every 2 years or earlier if
checked and found that hoses are swollen, hardened or cracked.
■ Precaution at Overheating
Take the following actions in the event the coolant temperature
be nearly or more than the boiling point, what is called
“Overheating”.
1. Stop the machine operation in a safe place and keep the engine
unloaded idling.
2. Don’t stop the engine suddenly, but stop it after about 5 minutes
of unloaded idling.
3. Keep yourself well away from the machine for further 10 minutes
or while the steam blown out.
4. Checking that there gets no danger such as burn, get rid of the
causes of overheating according to the manual, see
“Troubleshooting” section, and then, start again the engine.
W10195610
Adjusting Toe-in
1. Park the tractor on the flat place.
2. Inflate the tires to the specified pressure.
3. Turn steering wheel so front wheels are in the straight ahead
position.
4. Lower the implement, lock the parking brake and stop the engine.
5. Measure distance between tire beads at front of tire, hub height.
6. Measure distance between tire beads at rear of tire, hub height.
7. Front distance should be 0 to 7 or 10 mm (0 to 0.28 or 0.39 in.)
less than rear distance.
8. If the measurement is not within the factory specifications, adjust
by changing the tie-rod length.
■ Adjusting
1. Loosen the lock nut (1) and turn the tie-rod (2) to adjust the tie-
rod length until the proper toe-in measurement is obtained.
2. Retighten the lock nut (1).
W10200260

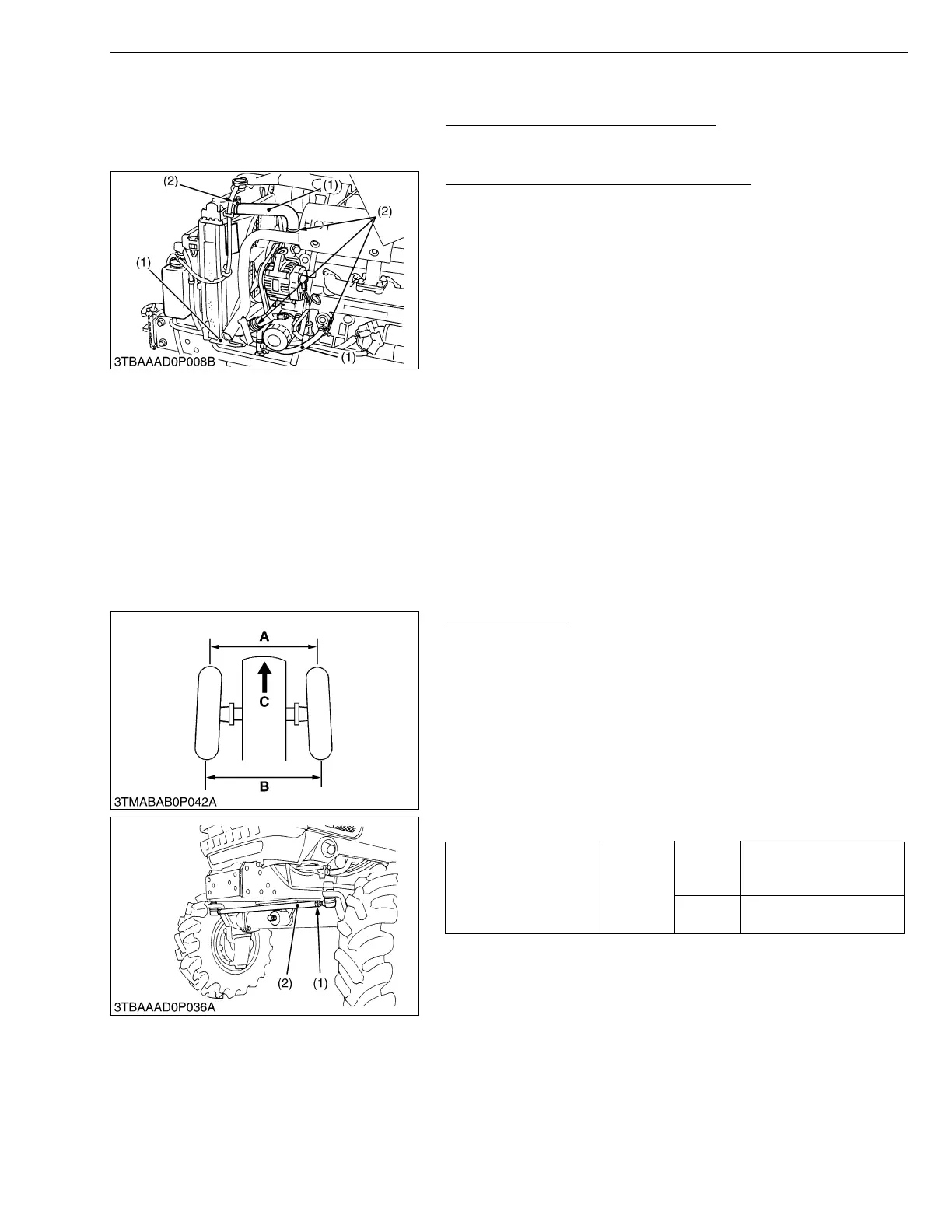

(1) Radiator Hose (2) Clamp
Toe-in (B-A)
Factory
spec.
B1710
B2110
B2410
0 to 10 mm
0 to 0.39 in.
B2710
0 to 7 mm
0 to 0.28 in.
(1) Lock Nut
(2) Tie-rod
(A) Wheel to Wheel Distance at front
(B) Wheel to Wheel Distance at rear
(C) Front
