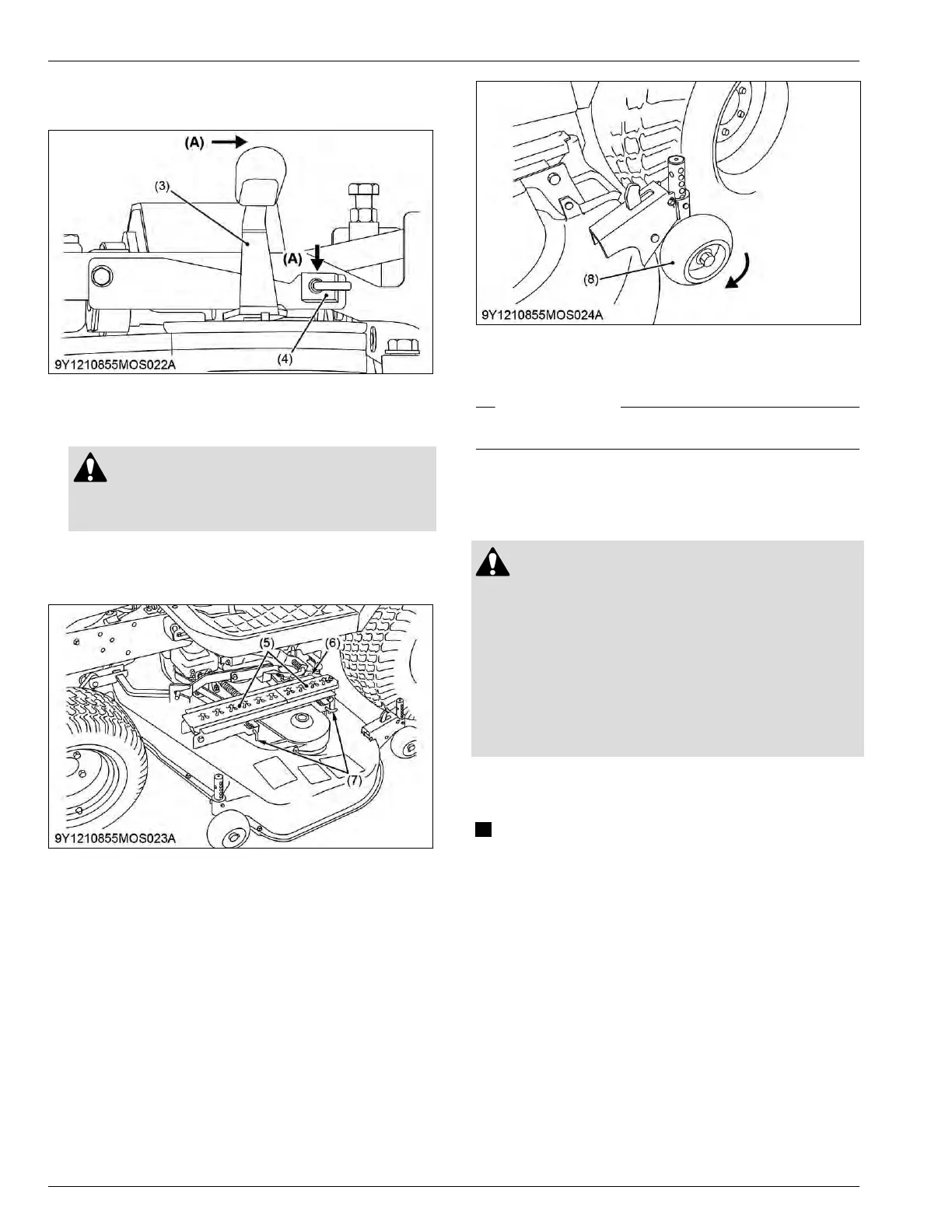

6. Set the PTO select lever to Rear-PT
O position.
7.
Connect the universal joint by the lever guide (3).
(3) Lever guide
(4) Lock lever
(A) Engage
8.
Lock the lever guide by the lock lever (4).
WARNING
To avoid serious injury:
• Double check that lever guide is locked.
9.
Set the PTO select lever to Mid-PTO position.
10. Put front and rear ramps (5) back to the ramp
bracket (6). Lock the L-pin (7).
(5) Ramp
(6) Ramp bracket
(7) L-pin
11. Start
the engine. Lift up the mower to the T
OP
position.
Lock the dial gauge and set the parking
brake. And then, stop the engine.
12. Lock the rear anti-scalp roller (8).
(8) Anti-scalp roller
13. Adjust the anti-scalp roller (8).
RELATED PAGE
6.1.6 Adjusting cutting height on page 9-18
6. Checking and adjusting
6.1 Mower adjustment
CAUTION
• Park the tractor
on a firm, flat and level surface
and set the parking brake.
• Stop the engine, remove the key, and allow the
blades to stop before making adjustments.
• Wear heavy gloves or wrap end of blade with a
rag when you handle blades.
• Before starting the engine, set the PTO clutch
lever to off position and range gear shift lever to
the neutral position.
6.1.1 Adjusting mower link
IMPORTANT
• Park the machine
on a firm, flat and level
surface and set the parking brake.
• Before adjusting mower deck, make sure the
tire pressure is correct.
9. MOWER
 SERVICING
6. Checking and adjusting
