Disc mower
40
GMD240-280-310
Putting into service
KN204AGB H

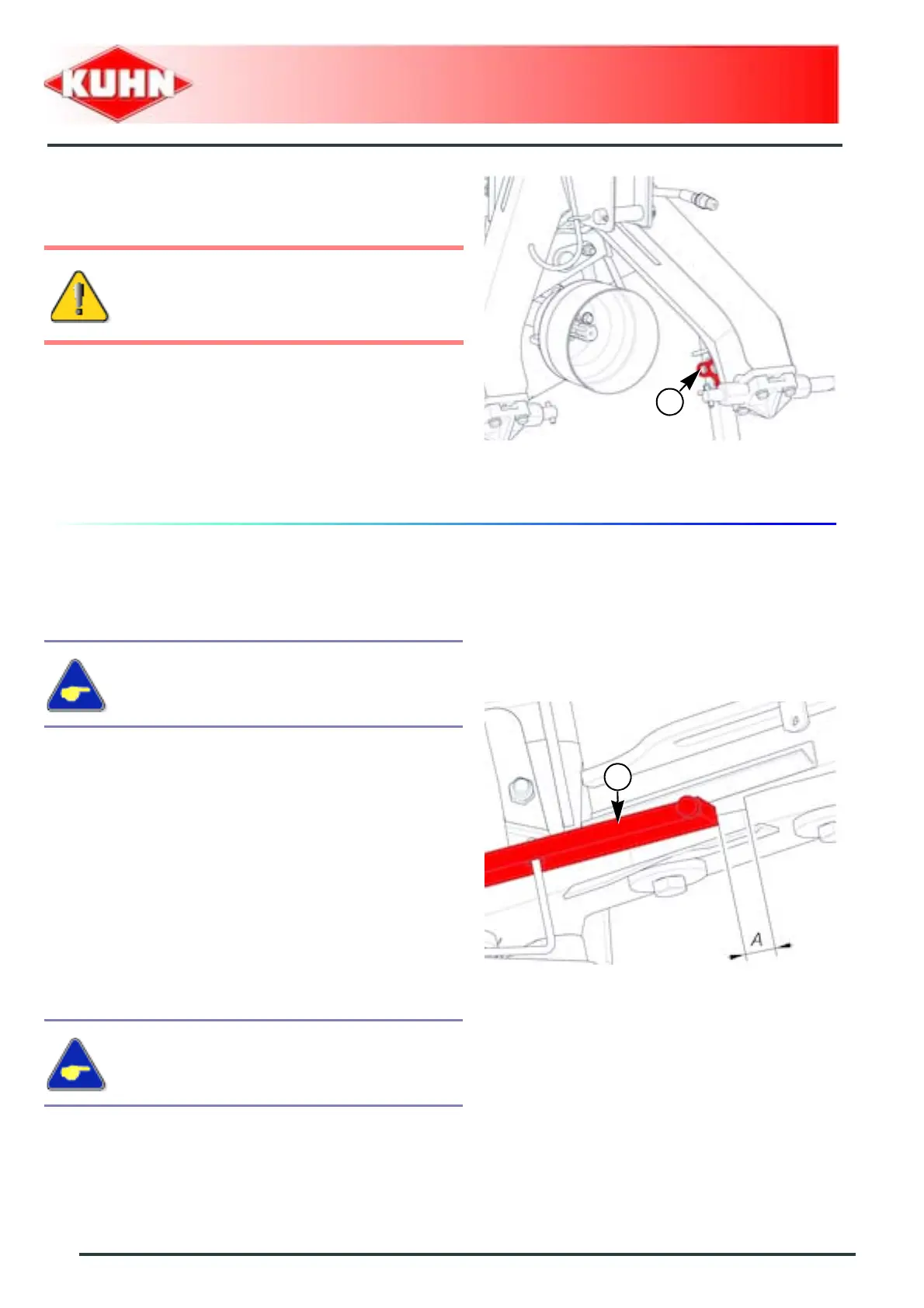

- Attach PTO shaft guard chain in hole (1) on machine
side.
Adjusting the machine
Frame height
Tractor fitted with a hydraulic position control function:
- Lower mowing unit on the ground.
- Lower tractor lift linkage in order to engage lift stop (1)
in its housing.
- Place the machine in headland turn position,
Then
- Lower mowing unit on the ground.
- Adjust the lift height to respect the functional play A =
3 mm (0.1’’) of the lift stop.
- Note the corresponding lever position in the tractor
cab.
Immediately replace any worn or damaged
guard.
Proceed with adjustment on flat and even
ground.
The distance between the hitch pin axis and
the ground must be approximately 450 mm
(1’5’’)
