KUHL GMD310 - Oil change

Maintenance and storage
Disc mower
GMD240-280-310
67
KN204AGB H
When the following equipment is fitted:
Mechanical safety release + Hydraulic pivot +
Lighting and signalling

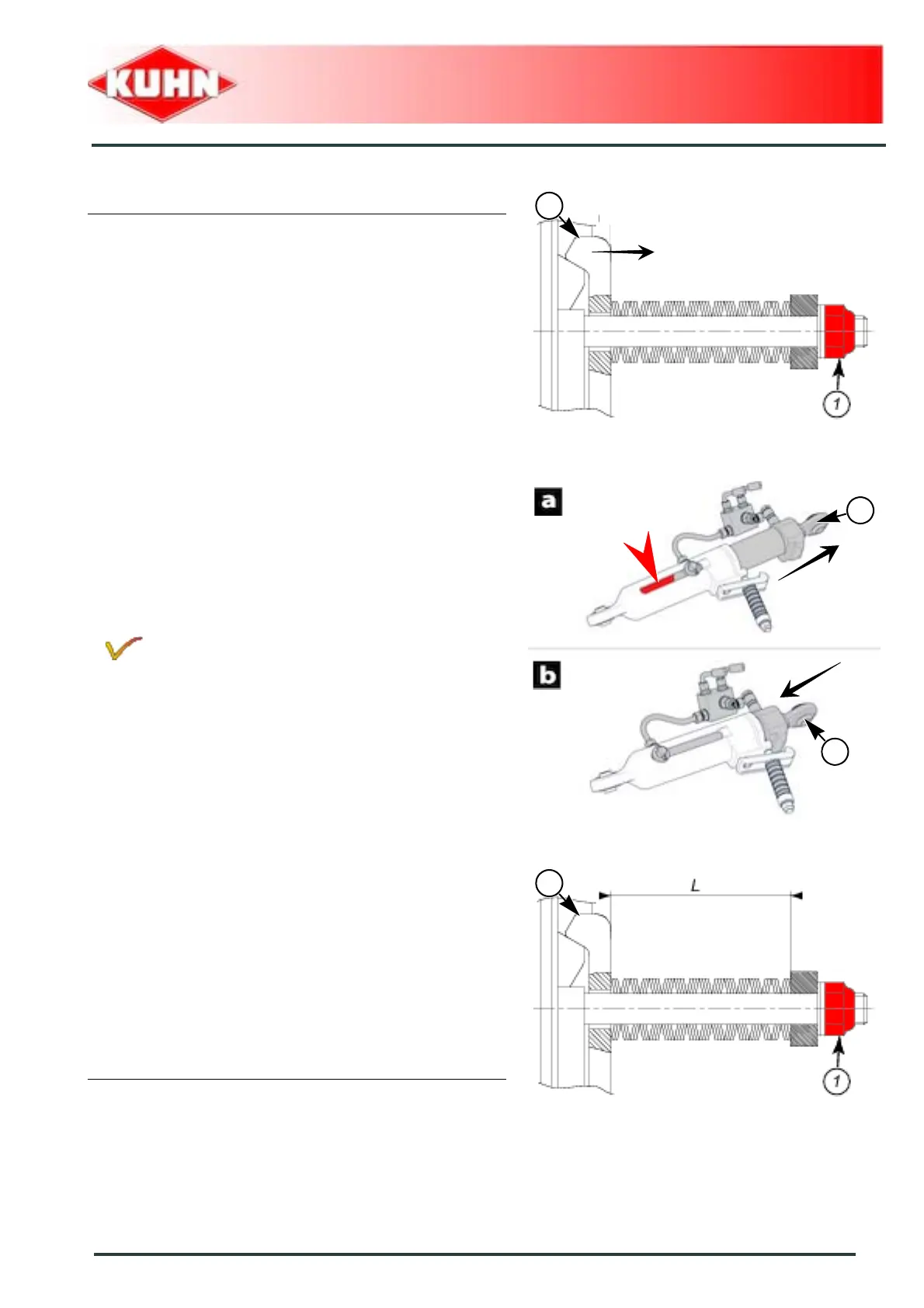

- Loosen nut (1) to release lock (2).
- a: Extend cylinder (1).
- Grease the release sheath inside.
- b: Reinstall cylinder (1).
- Tighten nut (1).
- Make sure lock is engaged (2).
- Measure dimension L:
• L= 95 mm (3.7’’).
(See section: Instructions for work / Machine
use / Machine safety / Basic adjustment).
