ALWAYS DISCONNECT THE PTO
SHAFT FROM THE TRACTOR PTO
WHEN PUTTING THE MACHINE INTO
THE TRANSPORT POSITION.

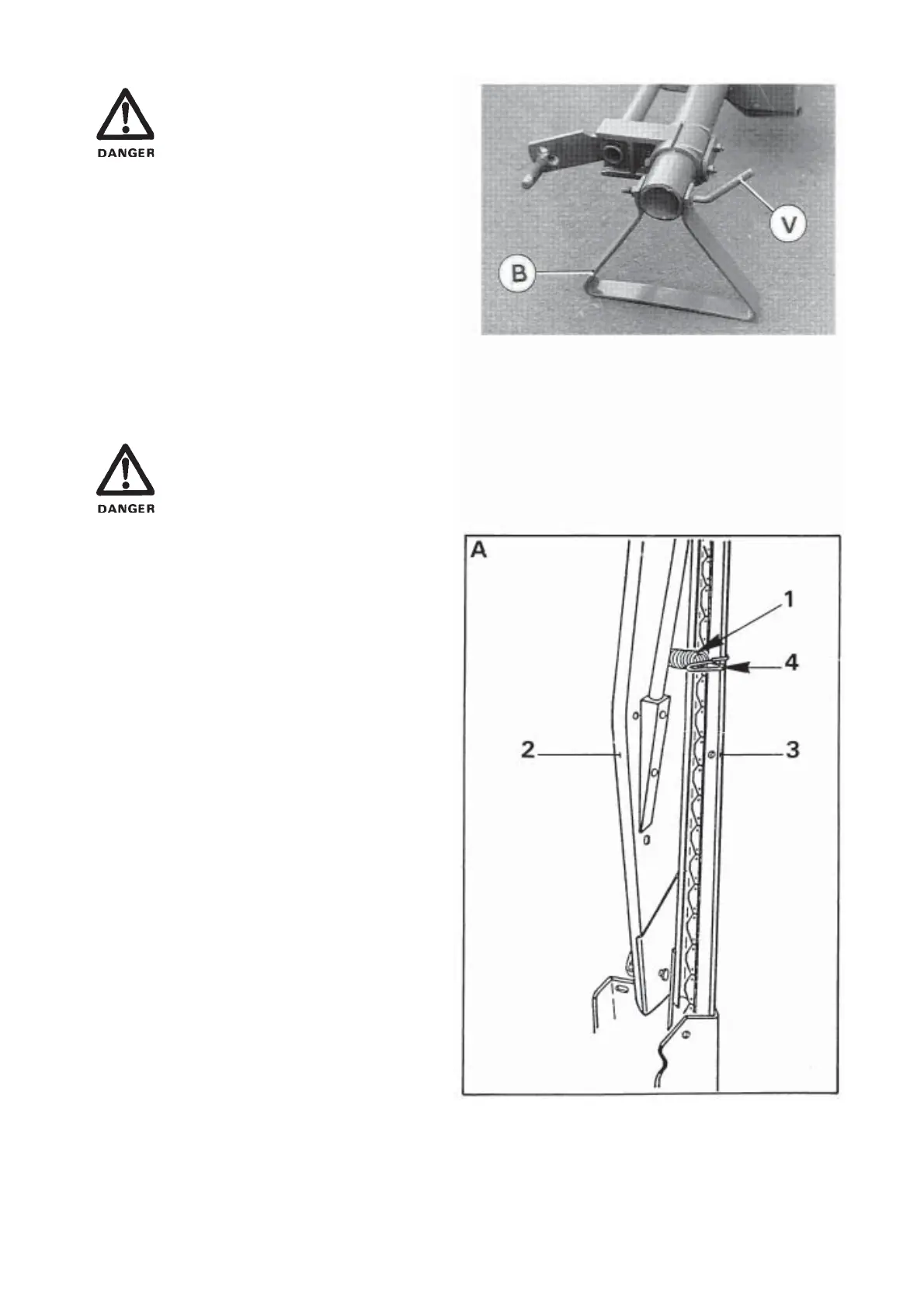

When parking the machine, secure the triangular stand
(B) on the left-hand side into the lower position with
handle (V) as shown in the photo opposite. The mower
can than be lowered on the tractor hydraulics where it
can stand level while uncoupling from the tractor.
ALWAYS PARK THE MACHINE ON A FLAT, HORIZONTAL SURFACE
When transporting machine in the field, swath board stick
can be pivoted towards the front.
Fixation of swath board for transport on public roads
Hook spring (1) onto swath board (2) (fig.A). Block swath
board (2) against the vertical cutterbar (3) and slide it
down until it butts against inner
shoe and pivoting area as shown in fig.A. Hook spring
handle (4) onto the
cutterbar (3) (fig.A & B).
When detaching swath board from this transport posi-
tion, secure spring (1) as shown in fig.C.
