Mower conditioner
48
FC883RA

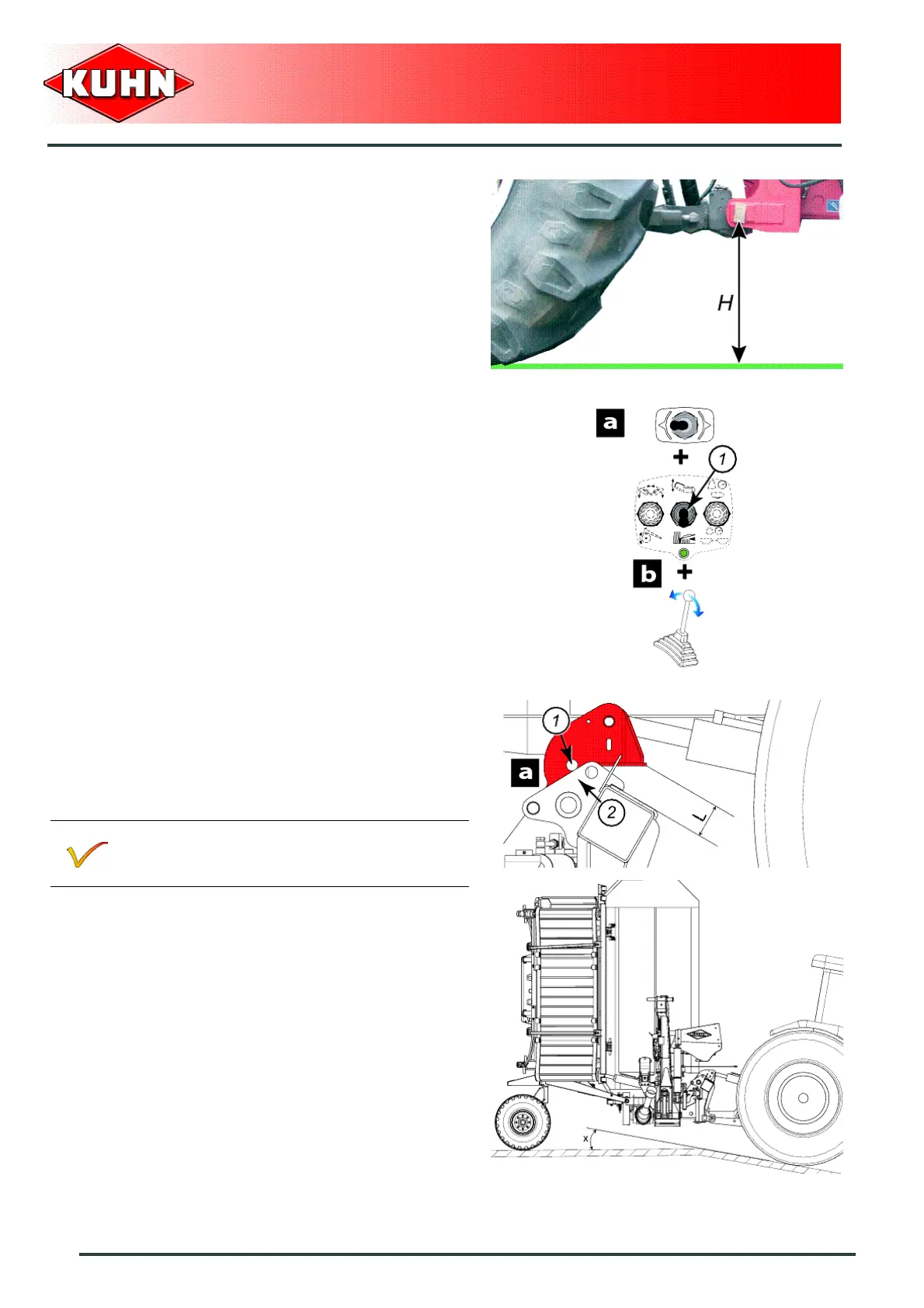

Instructions for transport
Adjust main frame height with regards to the ground:
- Lower the tractor lift linkage so that hitch pins are at a
distance H = 500 mm (1’8’’) from the ground.
Use top link to put the pivoting upper link in
transport position.
- Place central switch in position (a).
- Maintain switch (1) in position (b).
- Activate tractor hydraulic outlet associated with the
control box.
- The pivoting upper link must be in position (a):
• The hole (1) must be visible and next to part (2).
• Value (L) should be 95 mm (3.7’’)").
Starting to travel downhill:
- The pivoting lower links enable pivoting up to a
maximum angle of 10 degrees.
For easier positioning, it is recommended to use
a top link fitted with a straight edge and a slider.
