Maintenance and storage
Mower conditioner
FC883RA
85

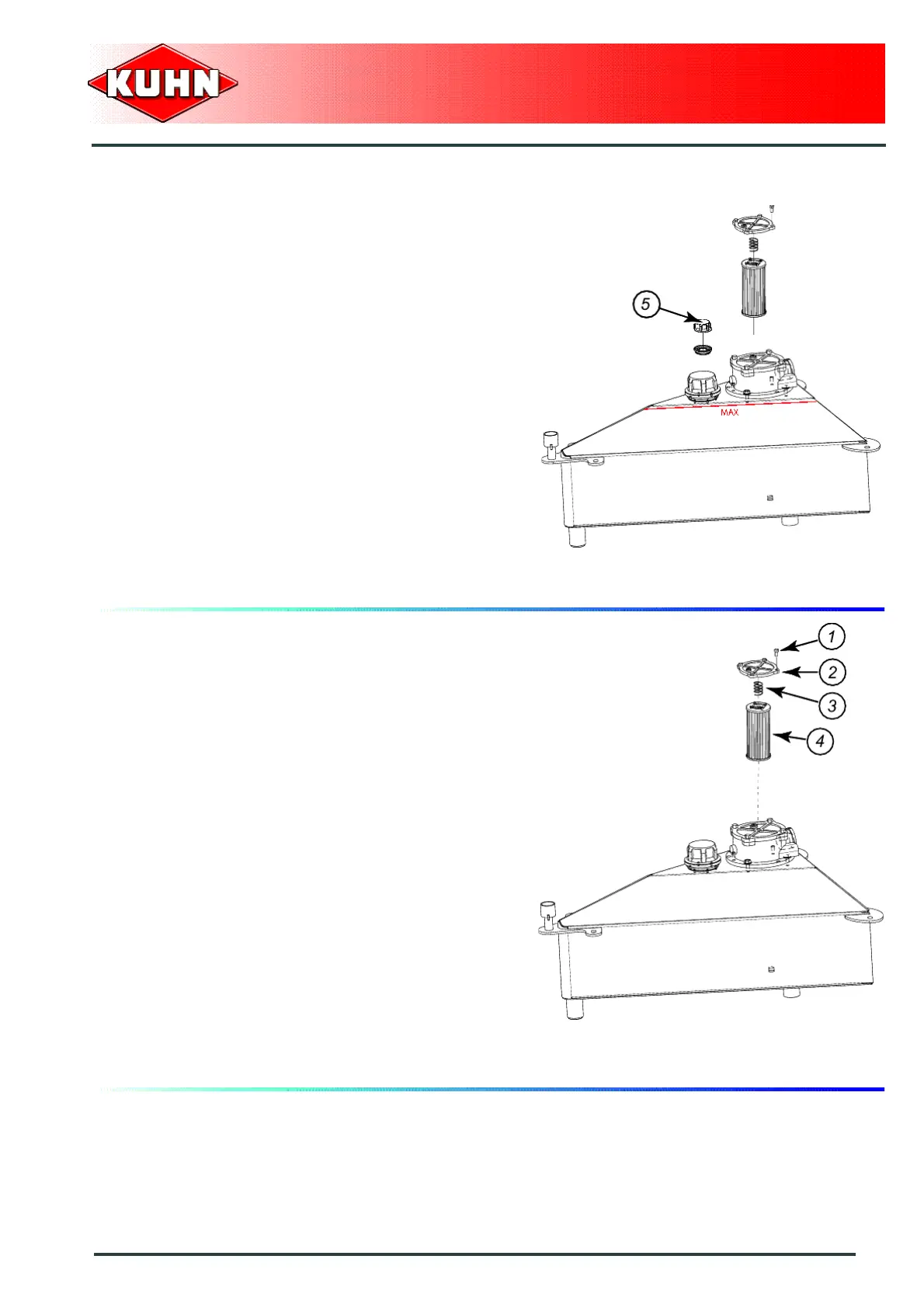

Oil level
- Remove filler plug (5).
- Check visually oil level in tank.
The oil level must be located in the maximum area.
- Top up if necessary.
Replace:
Hydraulic tank filter cartridge
- Loosen the 4 self-locking screws (1).
- Remove filter upper plate (2).
- Take hold of spring (3).
- Replace filter (4). Part no. 82340002.
- Reassemble the unit.
