KUHN GMD802 - Coupling the machine

Disc mower
26
GMD802
Putting into service
If measure A is comprised between 2.10 m and
2.30 m (6’11’’ - 7’7’’):

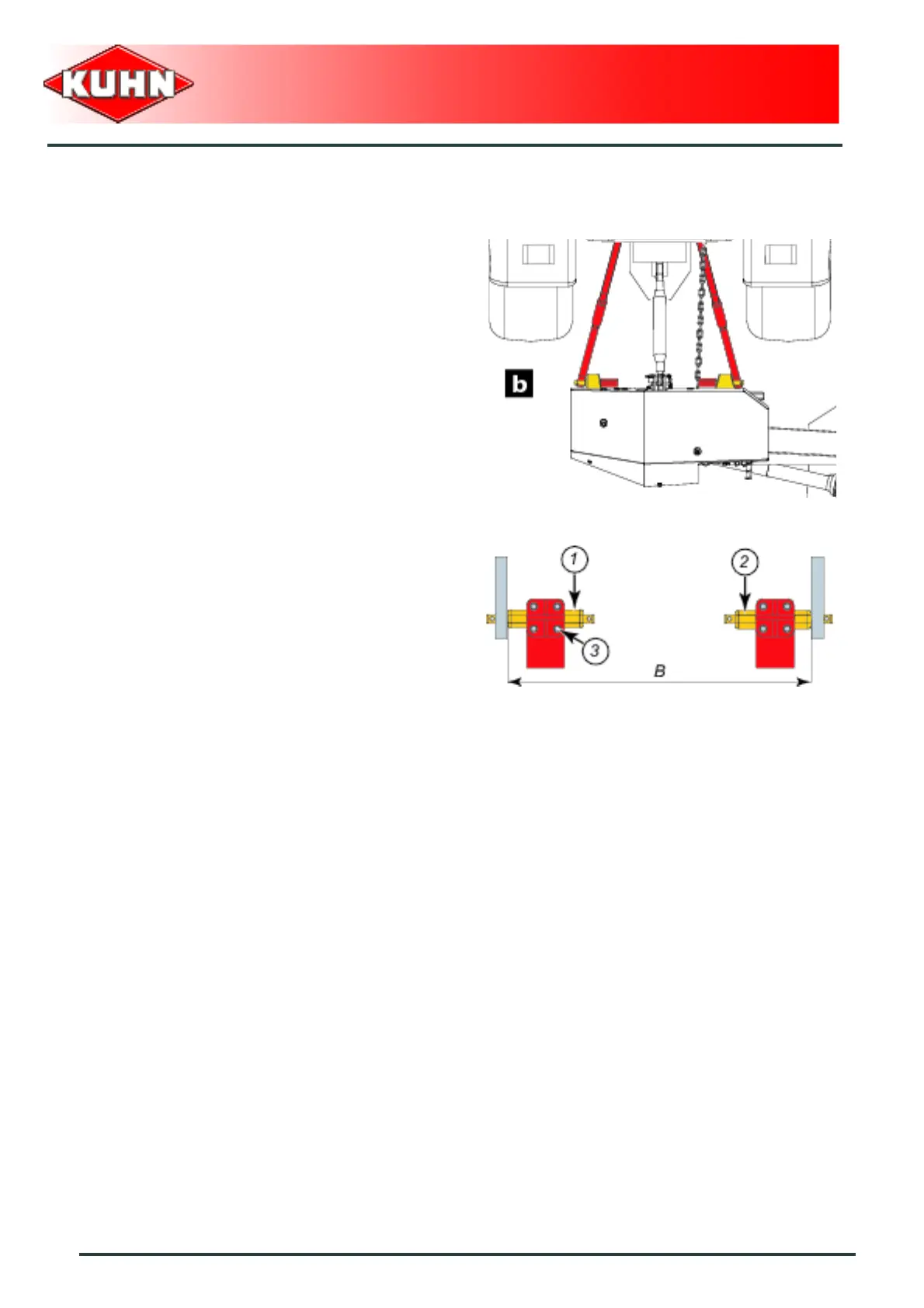

Place lower links in position (b).
Adjust machine lower hitch pin position:
- Unscrew the 8 bolts (3).
- Centre hitch pin (1) with regards to the mounting plate.
- Tighten 4 hitch pin screws (1).
• Torque: 21 daN m (155 lbf ft).
- Position hitch pin (2) at measure B = 825 mm (2’8’’).
- Tighten 4 hitch pin screws (2).
• Torque: 21 daN m (155 lbf ft).
