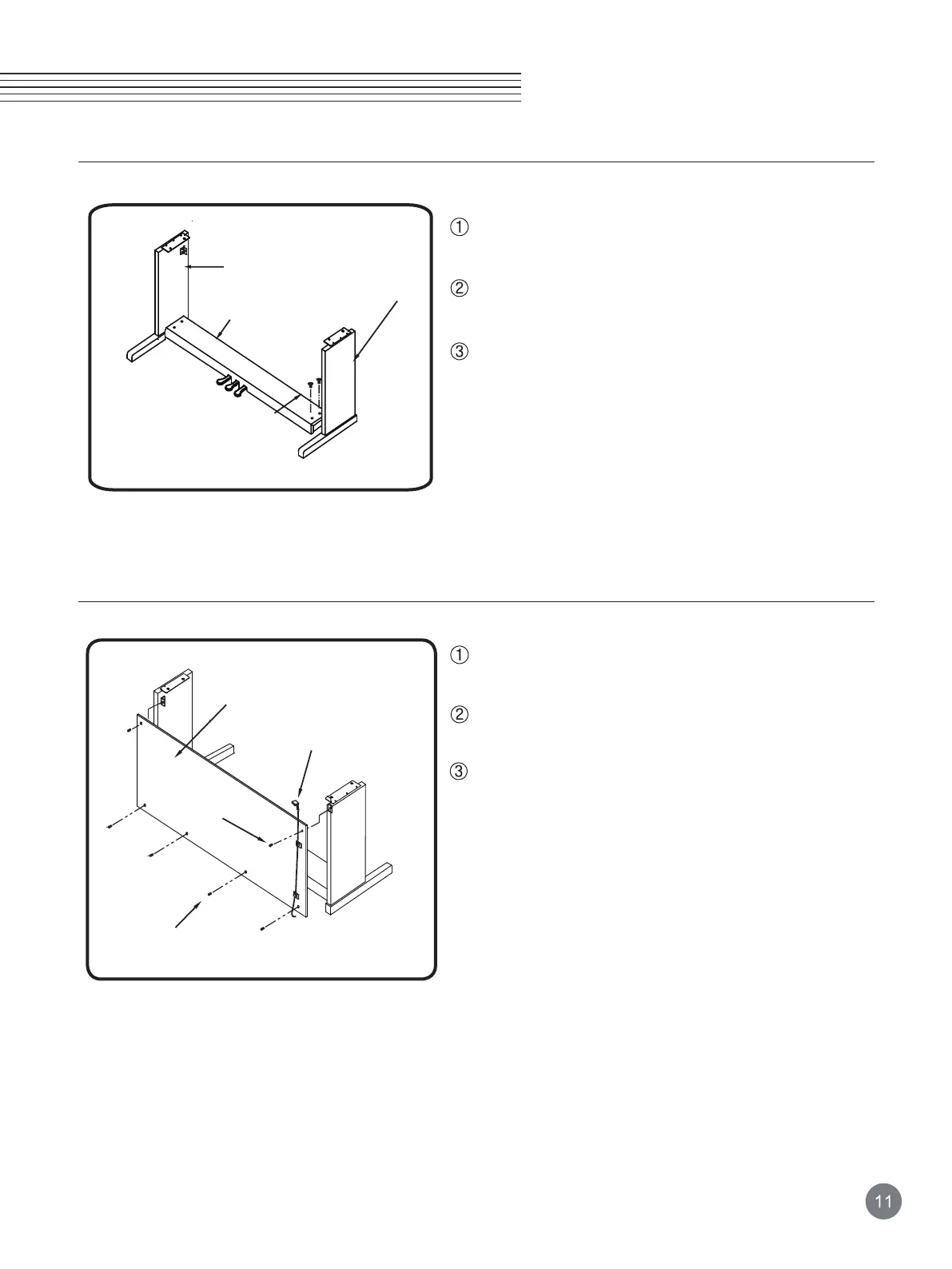

Chapter 2 Assembly
Side Panels and Pedal Box Assembly
There is a pedal cable in the pedal box ➍. Untie and straighten
out the bundled pedal cable.
Place the pedal box ➍ on the bracket of the left side panel ➋ then
tighten with Bolts ➐.
Assemble the right side panel ➌ in the same way.
Rear Panel Assembly
The lower part of the rear panel ➎ is attached to the pedal box
➍ with 4 Bolts ➒.
After the rear panel is in place, attach the pedal cable with the
cable clamps ➓.
➎
Rear panel
➒
➑
Bolts for side
panel and rear
panel
Bolts for rear panel
Cable clamp
➓
Align the rear panel ➎ with the holes in the L shaped bracket
and tighten with Bolts ➑.
➌
Side panel of stand(right)
➋ Side panel of stand(left)
➍
Pedal box
➐
Bolts for side panels
and pedal box
