Chapter 2 Assembly
➊
➏
Connect the Pedal Cable
After moving the piano to the installation place, the pedal
adjuster under the pedal box must be adjusted until it
touches the floor.

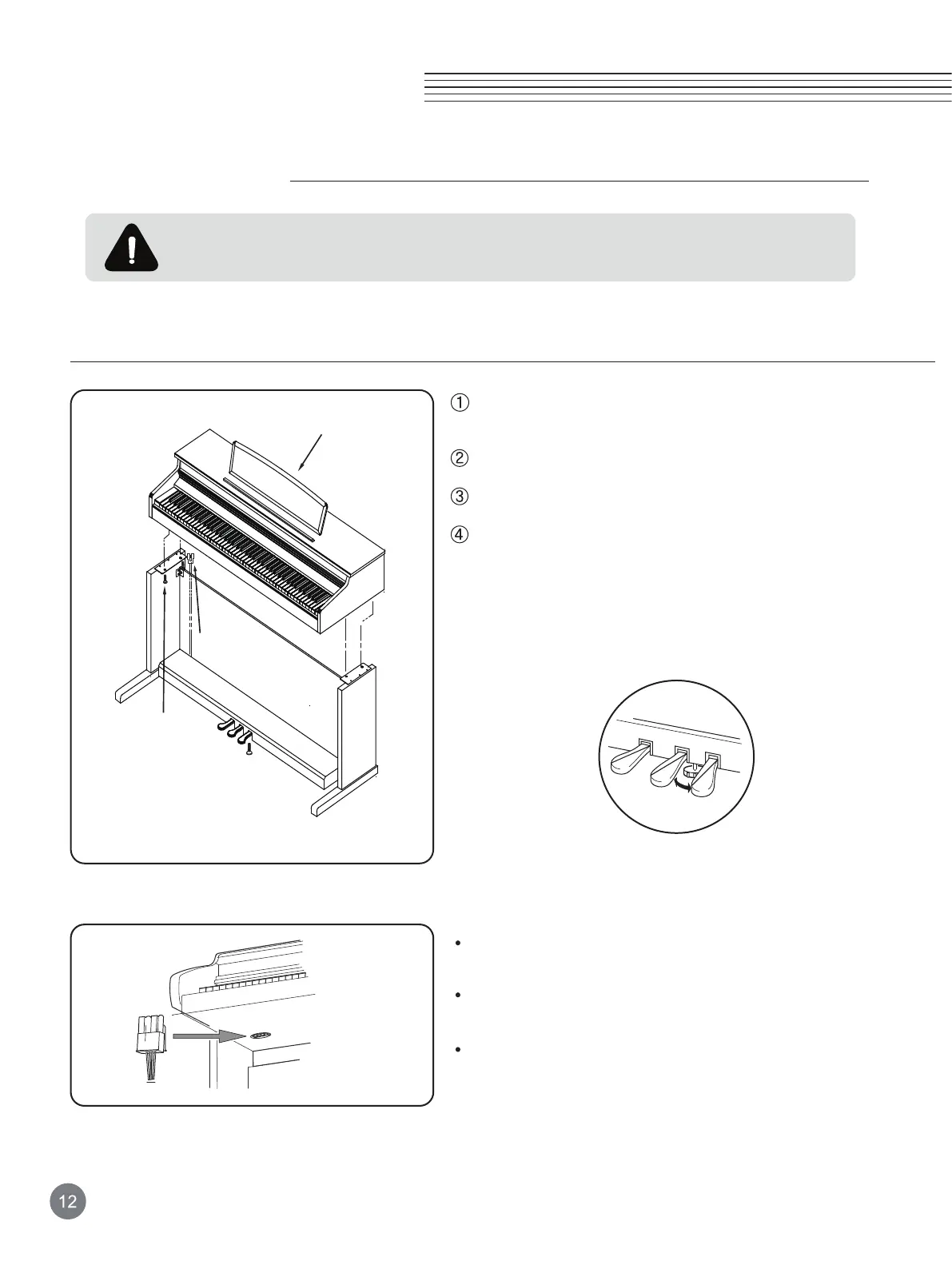

Mount and Attach the Keyboard (Main Unit)
Keyboard(main unit)
Bolts for side panel
and keyboard
Pedal adjuster
Pedal cable
Place the keyboard (Main Unit) on the stand then fit it into the
holes in the side panel brackets.
Use four Bolts ➏ to fasten the keyboard(Main Unit) to the stand.
Connect the pedal cable to the keyboard(Main Unit).
The pedal adjuster bolt under the pedal box must be adjusted until
it touches the floor. If the pedal adjuster bolt is not in contact with
the floor, pressing the pedals may damage the pedal box.
After assembly is complete, connect the pedal cable to the
pedal connector on the bottom of the keyboard (Main Unit).
Align the pins correctly and push it up until it clicks. If the
pins are not oriented correctly, the pedals will not work.
Organize the wiring using a cable clamp.
Assembly Instruction
To prevent the main unit from accidentally falling forward when placing it on the
stand, do not press down on the front edge of the keyboard or pull down on the
main unit before tightening the screws.
,
