Components and their function K-Series
16
Tighten the screw .
Perform the setting on both sides.

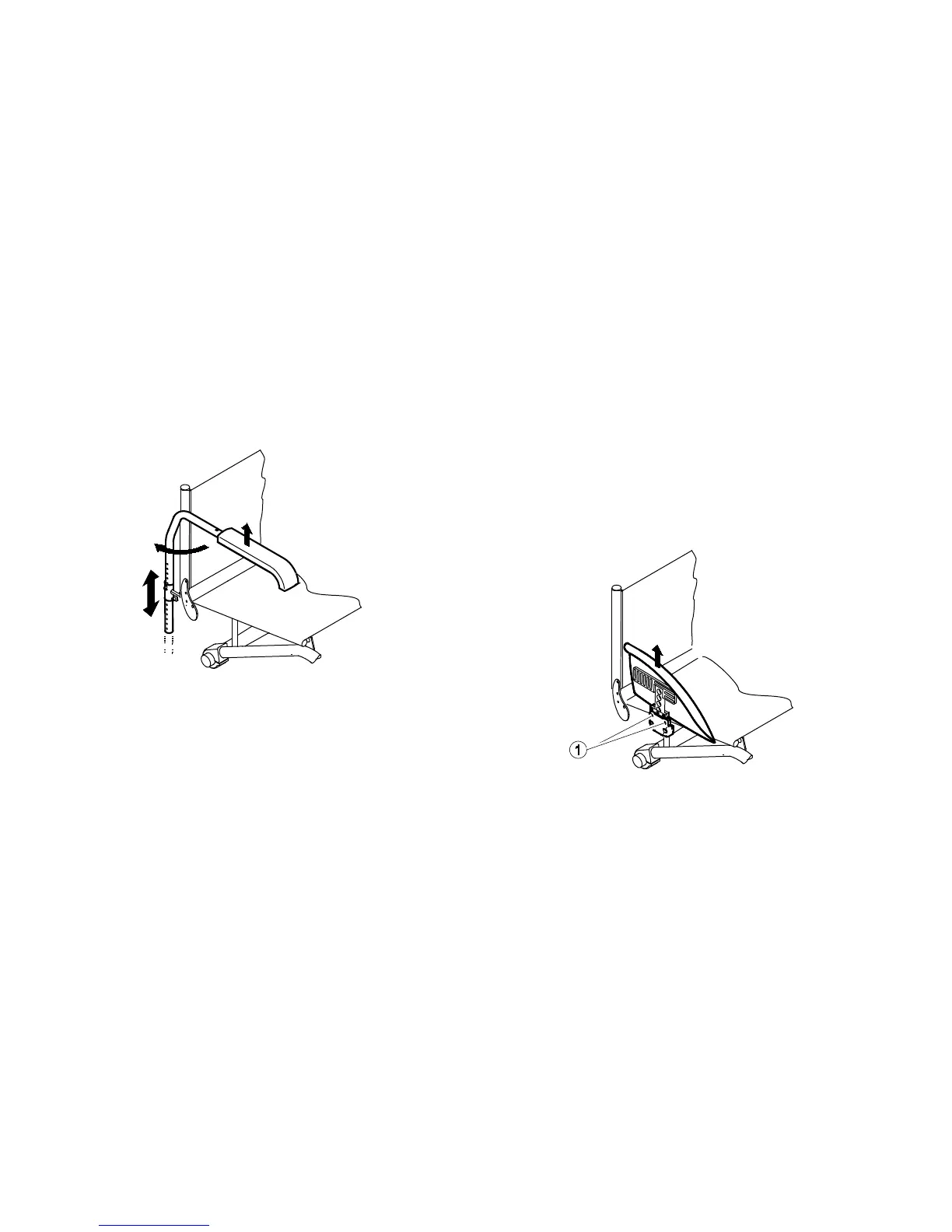

Simple armrest, height-adjustable, swivelling
Removing
Raise the armrest and pull it upwards out of the holder.
Fitting
Push the armrest into the holder.
Adjusting the height
Pull the armrest out of the holder.
Loosen the screw on the tube of the armrest and screw it
back in at the desired height.
Push the armrest back into the holder.
Perform the setting on both sides.
Swivelling
Raise the armrest a little and swivel it outwards.
Mudguard
In order to prevent dirt from the wheels spraying upwards, a
removable mudguard can be fitted. The position of the
mudguard can be adjusted. The adjustment must be carried
out by the specialist dealer.
Removing
Pull the mudguard upwards out of the holder.
To adjust how easy or difficult it is to pull the mudguard
out of the holder, change the degree to which the screws
are tightened.
