18 GCU-3000

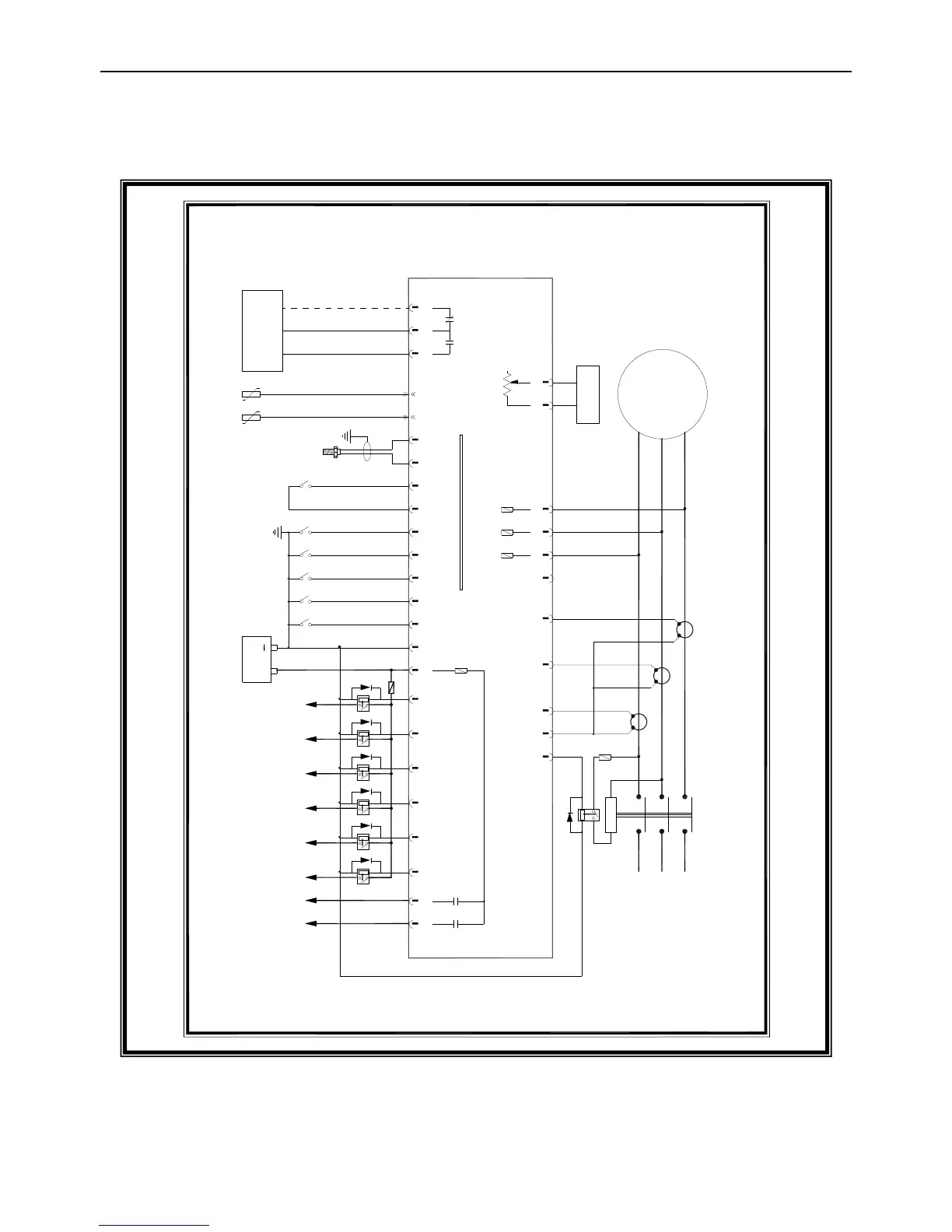

6.2.2 3 Phase 3 Wires System Wiring Diagram
VOLTAGE
L1
LOW FUEL SW
OIL PRESSURE SENDER(4C)
TEMPERATURE SENDER(5C)
IDLE CONTROL
IDLE CONTROL
IDLE CONTROL
Meganetic
Pick-up
REMOTE START
TEMPERATURE SW
REMOTE START
OIL PRESSURE SW
33
32
31
J1
J2
G
27
29
30
28
3
1
5
26
25
24
7
12
ALARM
RUNNING
PRE-HEAT
+
BATTERY
AUX.2
AUX.1
START
STOP
BLOCK HEATER
AUXILIARY
OVER LOAD
13
23
22
9
8
11
10
19
20
10A
18
21
15
17
16
34
10A
10A
14
LOAD
L3 L2 L1
36
35
AVR
1A
1A
1A
GCU3000 CONTROLLER
L3 L2
GOVERNOR
CONTACTOR
CT
CT
CT
