Correction
As a source, it is necessary to choose a light bulb with an incandescent filament and choose the recording
parameters from the camera so that the intensities in the graph are not saturated. It is ideal to set the exposure
and gain of the camera so that the largest part of the graph is used. The maximum value of components R, G,
and B should be above the 200 level. In this situation, it is advisable to interrupt the recording from the camera
and select Create correction from the Correction option. By turning on the correction option, all records will
be evaluated with corrected intensities. The correction has no effect on the spectral range or resolution of the
spectrometer. The proportional representation of the components of the spectral records will be partially
changed. The result of spectrum operations will not change.

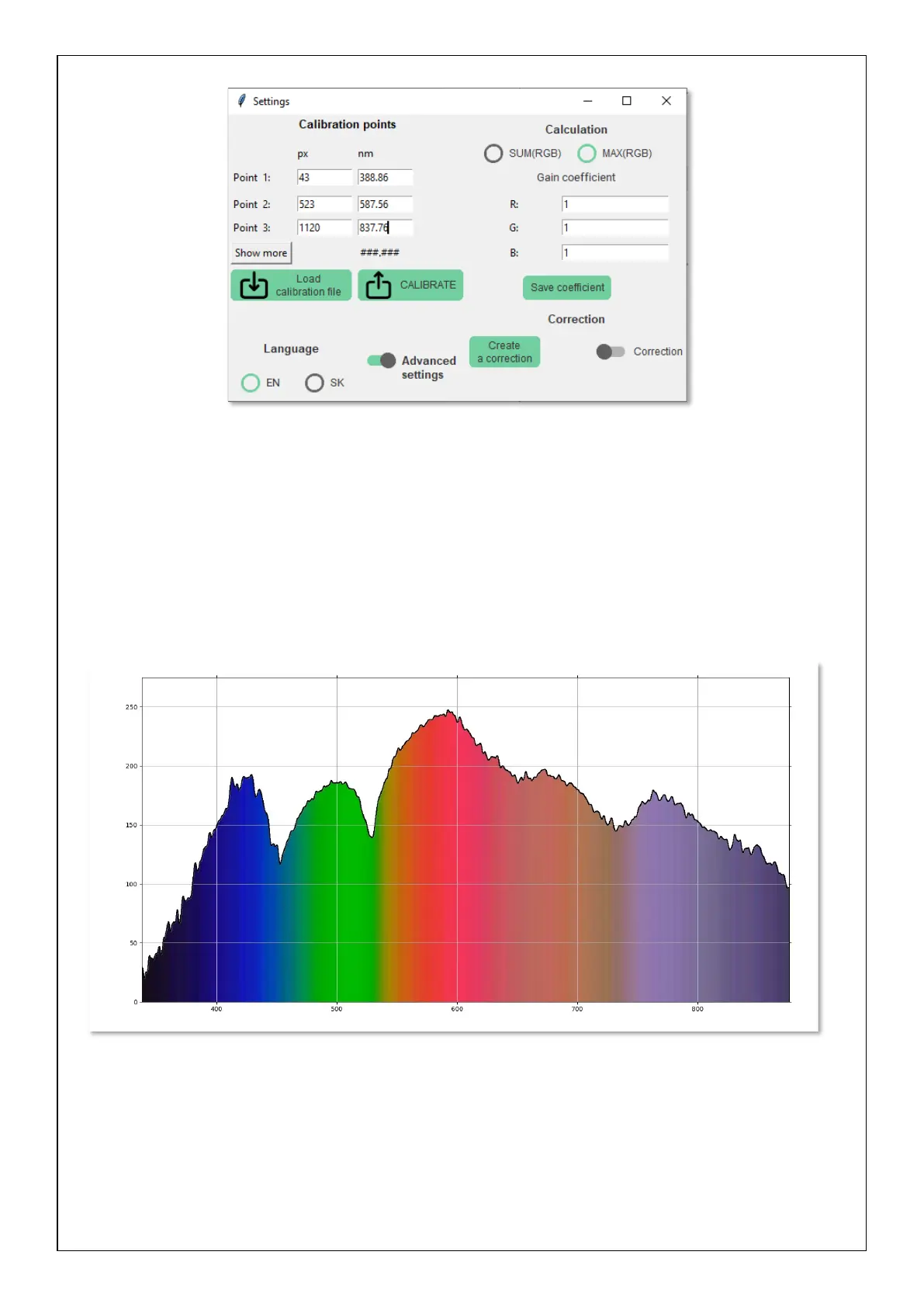

Current recording of the spectrum of an incandescent light bulb as a source of white light. Uncorrected
spectral response of the color R, G, B spectrometer camera
