Kvaser Leaf Light v2 User’s Guide 13 (25)
Kvaser Leaf Light v2 devices that use the 5-pole male M12 connector have the
pinning described in Table 6 on Page 13.

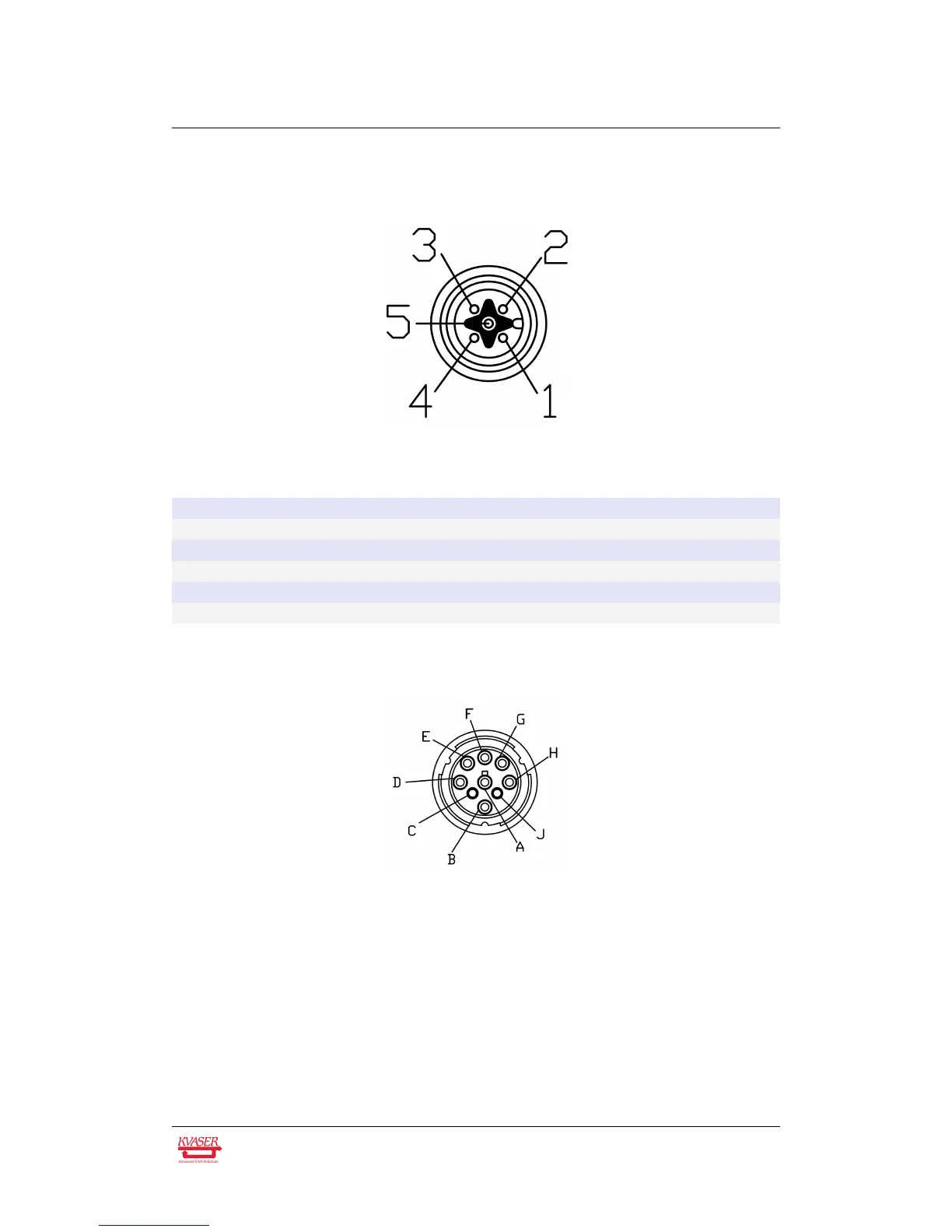

Figure 10: 5-pole male M12 Connector
M12 pin number Function
1 Shield
2 Not connected
3 GND
4 CAN_H
5 CAN_L
Table 6: 5-pole M12 pin configuration
Figure 11: J1939-13 Type I Connector
Kvaser Leaf Light v2 devices that use the 9-pin J1939-13 Type I or Type II
connector have the pinning described in Table 7 on Page 14.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
