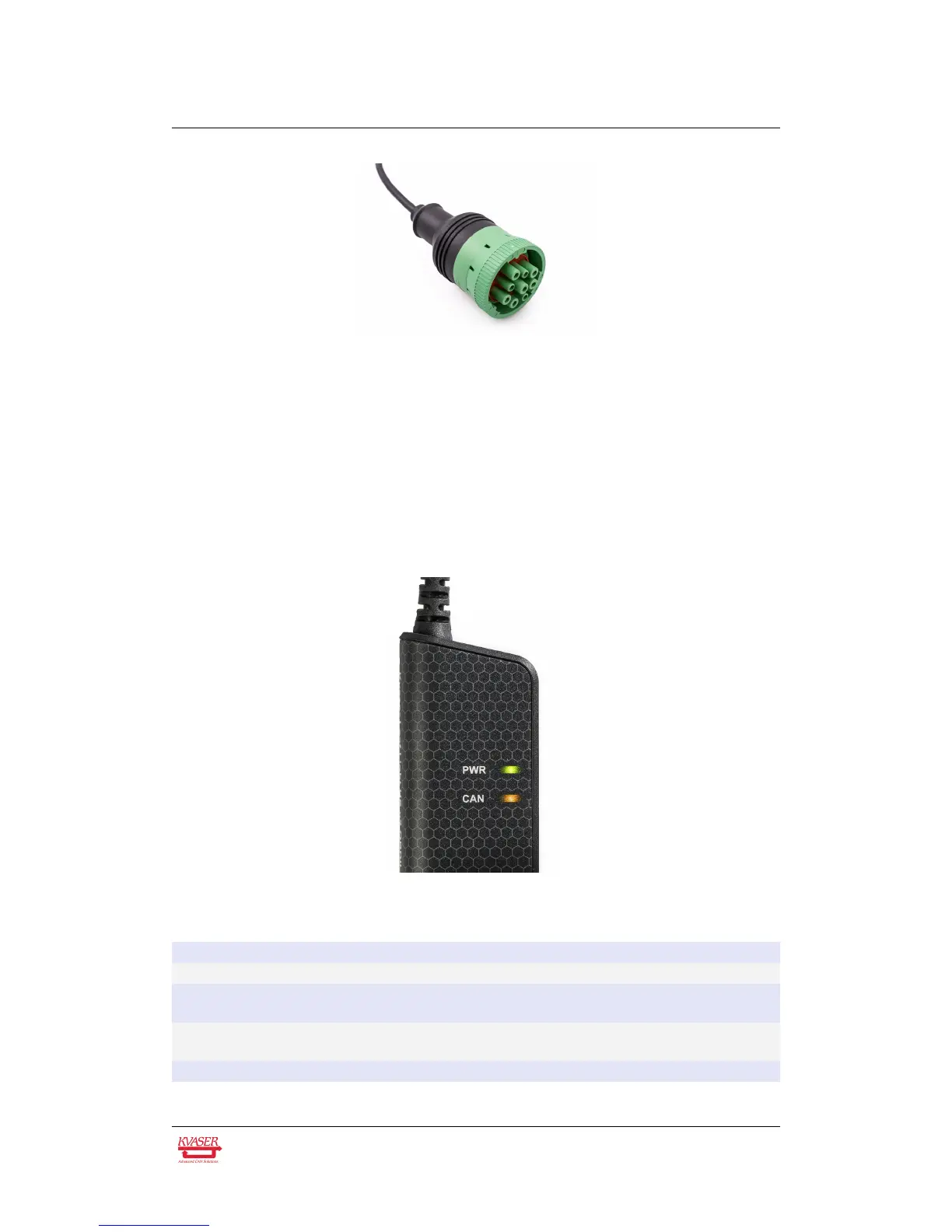

Figure 6: J1939-13 Type II CAN connector
3.5 Power supply
The Kvaser Leaf Light v2 is powered from the USB port.
3.6 LED Indicators
The Kvaser Leaf Light v2 has two LEDs as shown in Figure 7. Their functions are
shown in Table 2.
Figure 7: LEDs on the Kvaser Leaf Light v2.
LED Function Description
PWR (Green) Power Steady light when unit is powered and working.
USB configuration Blinking once every three seconds when something is
wrong with the USB connection.
Firmware 2 Hz flash if something is wrong with the firmware or
configuration.
CAN (Yellow) CAN RxTx Status for CAN channel.
Table 2: LEDs on the Kvaser Leaf Light v2.
