Kvaser Leaf Light v2 User’s Guide 12 (25)
4.2 CAN connectors
Kvaser Leaf Light v2 devices that use the 9-pin D-SUB connector (see Figure 8)
have the pinning described in Table 4.

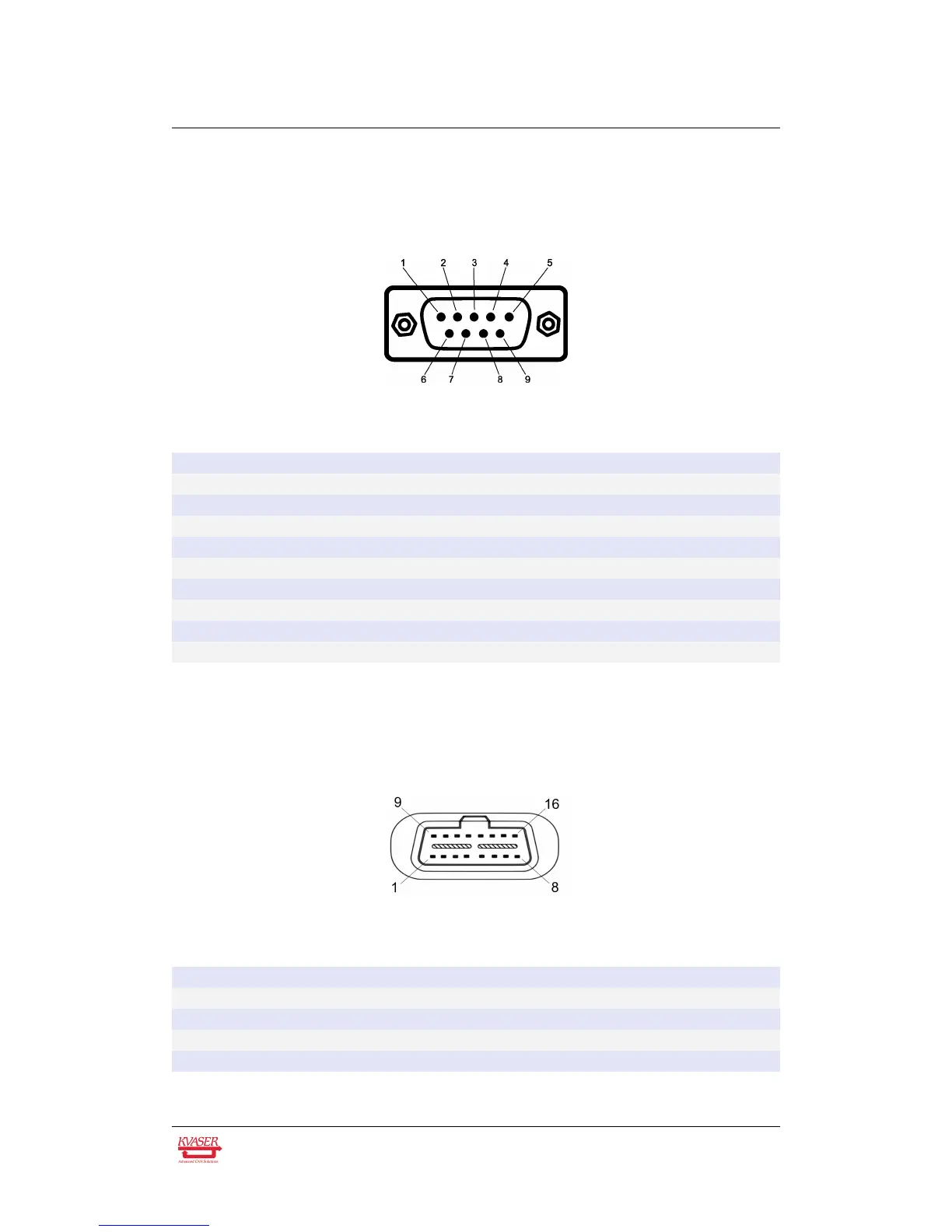

Figure 8: The D-SUB 9 connector pin numbers
D-SUB pin number Function
1 Not connected
2 CAN_L
3 GND
4 Not connected
5 Shield
6 Not connected
7 CAN_H
8 Not connected
9 Not connected
Table 4: Configuration of the 9-pin D-SUB
Kvaser Leaf Light v2 devices that use the 16-pin OBDII plug (see Figure 9) have
the pinning described in Table 5.
Figure 9: OBDII Connector
OBDII pin number Function
4 GND
6 CAN_H
14 CAN_L
16 Not connected
Table 5: OBDII pin configuration (showing only connected pins)
