Kvaser U100 - USB connector options

Kvaser U100 User’s Guide 13 (22)
4.5 USB connector options
This section describes the PC connector options available for Kvaser U100.
4.5.1 USB-A connector (Default)
The default option for the Kvaser U100 is a standard USB type “A” connector.

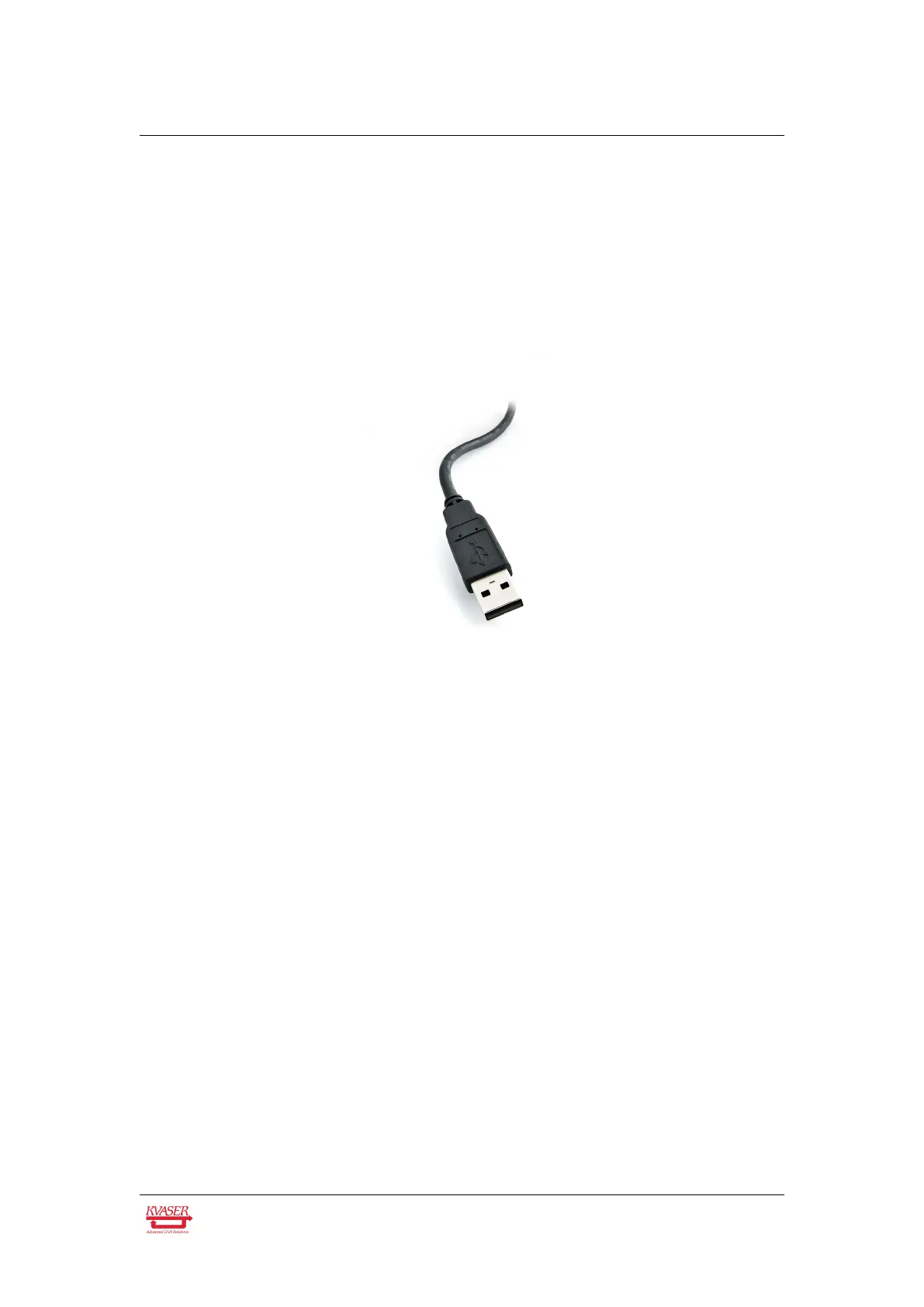

Figure 5: A standard USB type “A” connector.
Kvaser AB, Mölndal, Sweden — www.kvaser.com
