7
b. Properly align the reflector bracket to the
reflector (see Figure 12).
c. Secure the reflector bracket into place using
the six screws and washers you removed in
Step 2b. on page 5 (see Figure 13).
d. Reinstall the feed tube fully into the choke
feed. Then tighten the two 5/64" allen screws
to secure it in place (see Figure 13).
e. Reinstall the radome. Then restore power to
the TracVision system and any connected
receivers and/or multiswitch.
The procedure is complete!

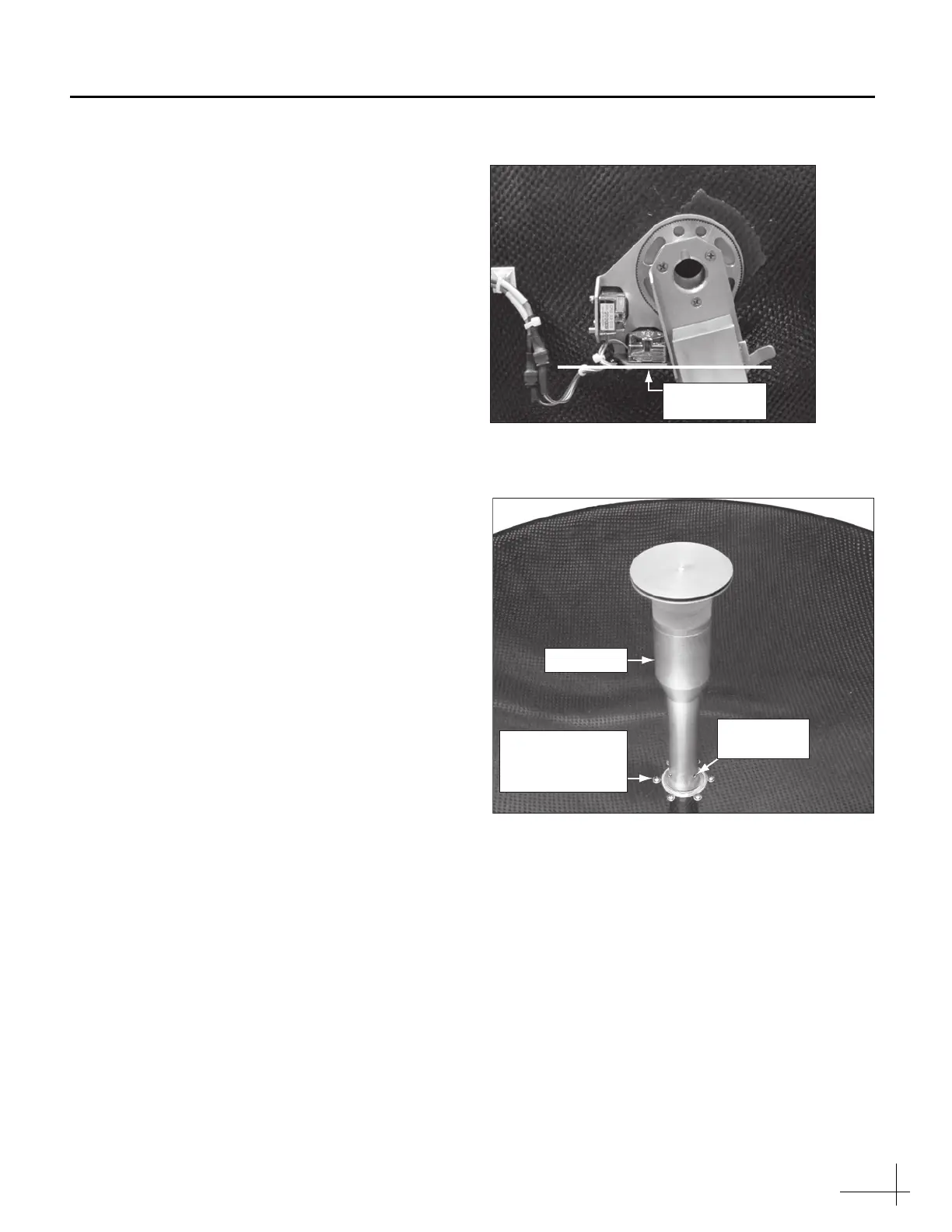

Figure 12 Reflector Bracket Alignment
Figure 13 Feed Tube/Reflector Screws
Feed Tube
Reflector Bracket
Screws and
Washers (x6)
Feed Tube
Screws (x2)
