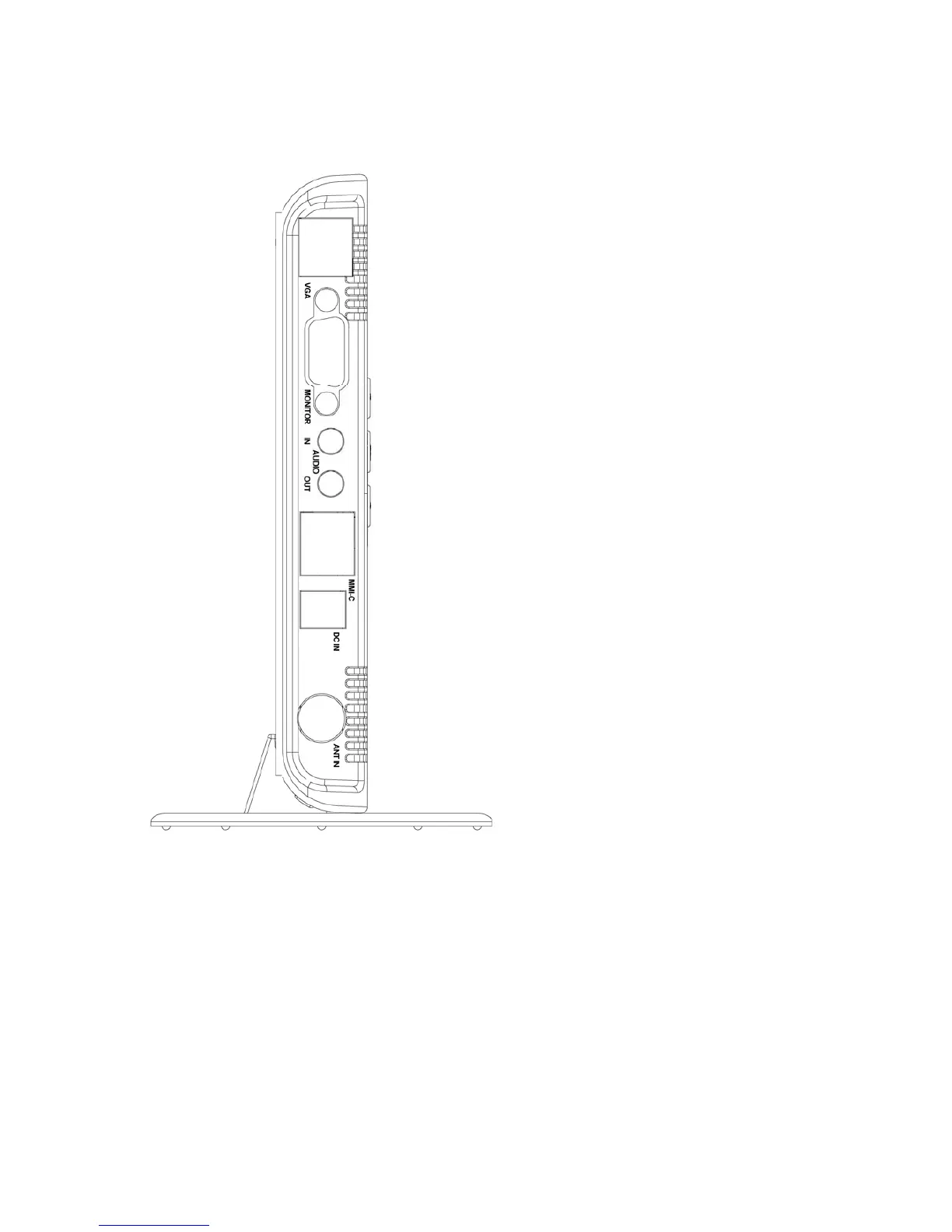

3.2 Rear panel description
VGA: The 15-pin connector end on
the attached VGA cable is
connected to the output of video
card in PC and the other end on
the cable to the VGA port.
MONITOR: Connected with
monitor.
AUDIO IN: Audio input port, which
is connected with the output port of
sound card of PC casing through
the attached stereo audio cable.
AUDIO OUT: Audio output port,
which can be connected with the
audio input port of active speaker
or power amplifying device.
MMI-C: For the attached MMI
S-video/AV input, YPbPr input and
video ouput.
DC IN: Power input port (Please
use the attached 5V power
adapter for this product.)
ANT IN: Antenna input port for
CATV or antenna TV signal input.
