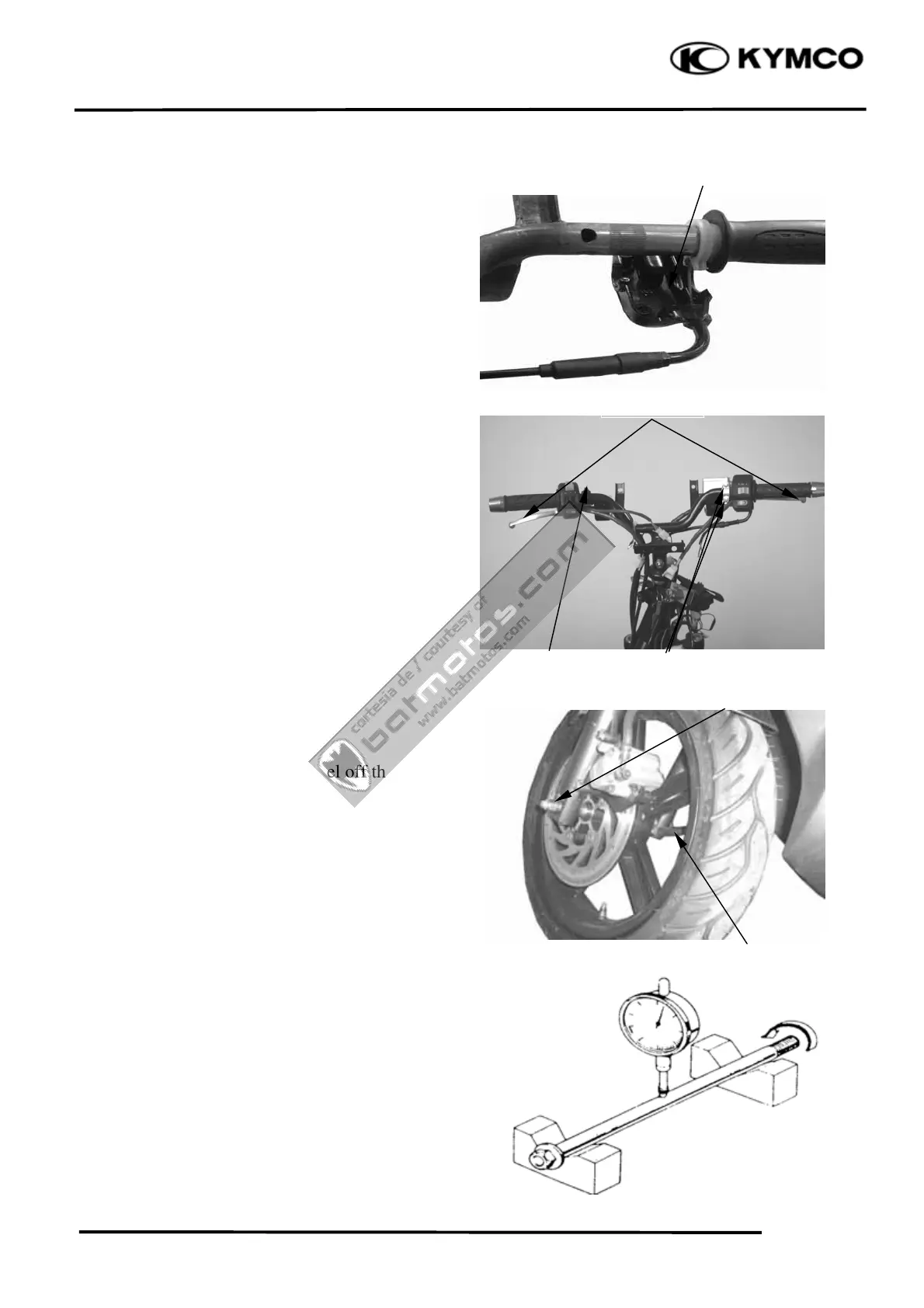

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION
12-4
AGILITY CITY 125
Apply grease to the tip of the throttle pipe.
Install the throttle pipe and connect the
throttle cable.
Install the front and rear brake levers in the
reverse order of removal.
FRONT WHEEL
REMOVAL
Jack the motorcycle front wheel off the
ground.
Remove the speedometer cable set screw and
disconnect the speedometer cable.
Remove the front axle nut and pull out the
axle.
Remove the front wheel.
Remove the and speedometer gear box and
side collar.
INSPECTION
AXLE RUNOUT
Set the axle in V blocks and measure the
runout using a dial gauge.
The actual runout is
1
/2
of the total indicator
reading.
Service Limit: 0.2mm replace if over
Brake Levers
Throttle Cable
Bolts
Bolts
Speedometer Cable
Axle Nu
t
Cortesia de / Courtesy of: www.batmotos.com
Recambios KYMCO en www.batmotos.com
